MCAC-VTSM-2014-10 R410A All DC Inverter Mini VRF
Installation 61

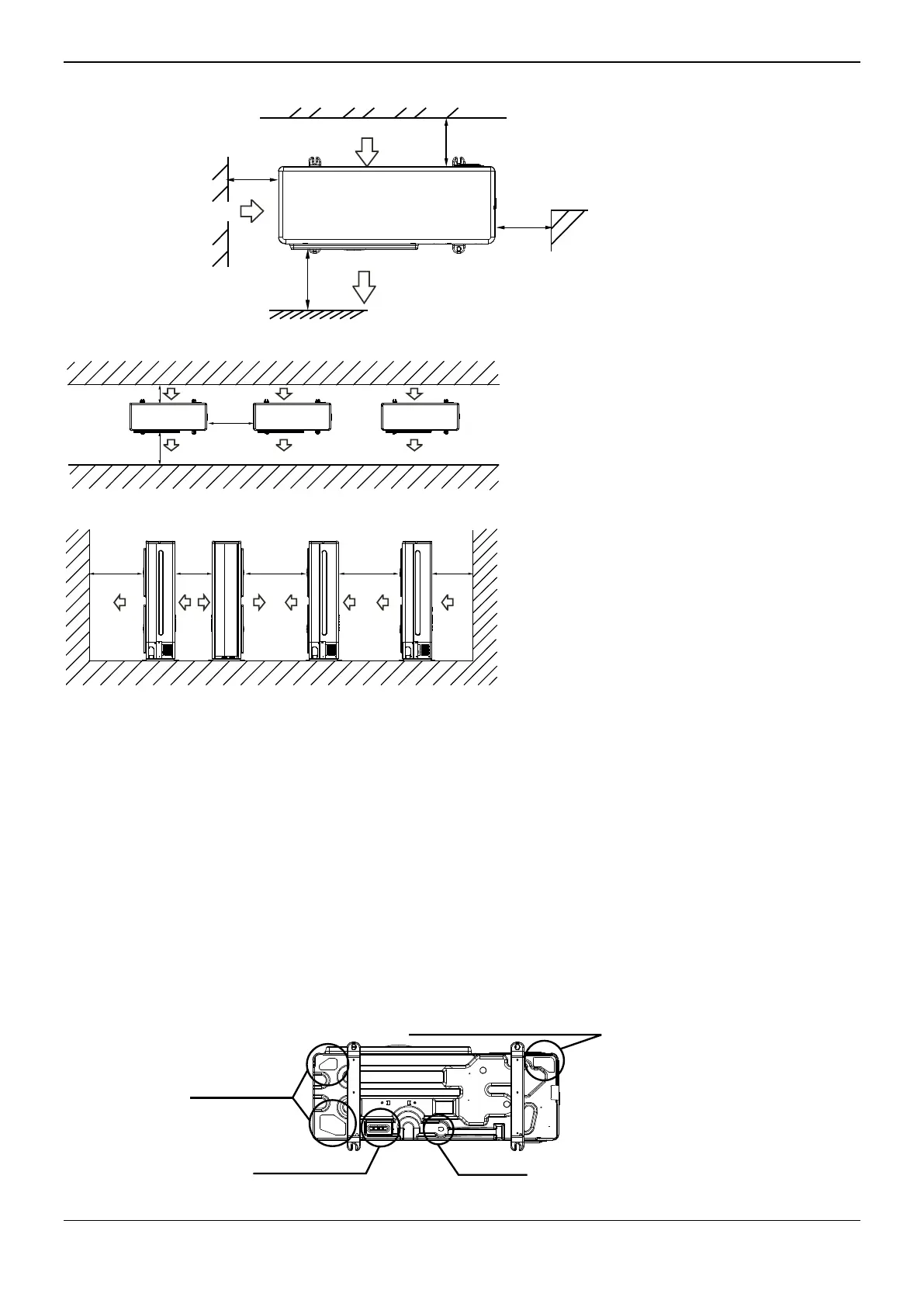

Single unit installation
Parallel connect two units or above
Parallel connect the front with rear sides
All the pictures in this manual are for explanation purpose only. They might be slightly different from the air
conditioner you purchased (depending on model).The actual shape shall prevail.
3.3 Water Outlet
Four condensed water outlets on the chassis for selection display as the follow figure:
While installing the outdoor unit, pay attention to the installation place and the drainage pattern; if it’s installed
at the alpine zone, the frozen condensed water will block up the water outlet, please pull out the rubber stopper
of the reserve water outlet. If that still fails to satisfy for the water draining, please knock open the other two
water outlets, and keep the water can drain in time. Pay attention to the knock the reserve water outlet from
outside to inside, and it will be beyond repair after knocking open, please pay attention to the installation place,
lest cause the inconvenience. Please do the moth proofing for the knocked out hole, to avoid the pest
processing into and destroy the components.
>2000 >500 >3000 >3000 >300
>300
>600
>300
>
2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
Reserve water outlet
Reserve water outlet
Water Outlet
Outlet for power and connecting pipes
(Need to knock open)
(With rubber stopper)
