Midea MGBT-F250W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
162

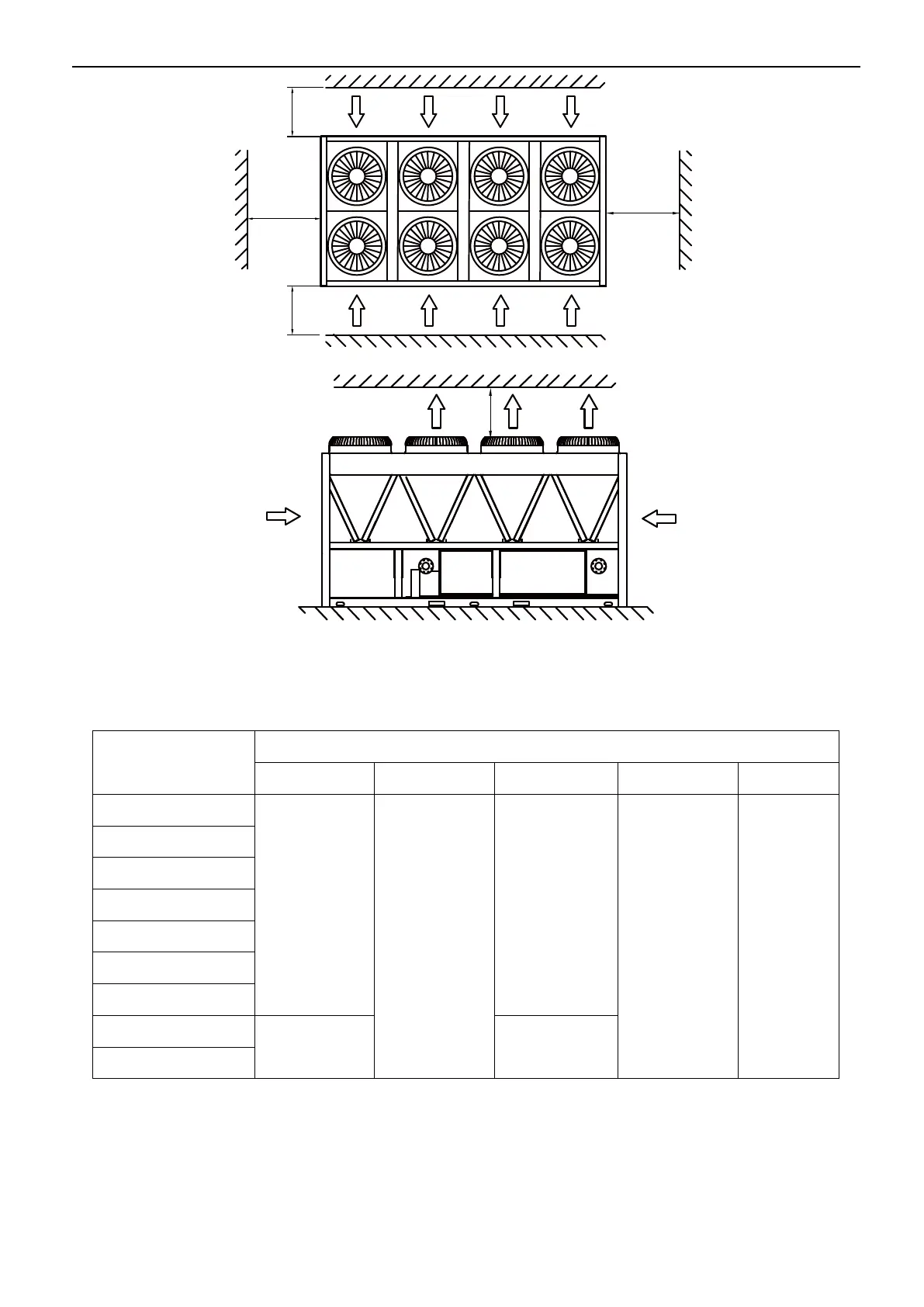

Input of airflow
Input of airflow
A
BC
D
Input of airflow
Input of airflow
E
MGBT- F250W/RN1
The recommend space parameter
Module
Installation space (mm)
A
B
C
D
E
MGBT-F25W/RN1
≥1500
≥2000
≥1500
≥2000
≥8000
MGBT-F30W/RN1
MGBT- D25W/RN1
MGBT- D30W/RN1
MGBT-F60W/RN1
MGBT-D60W/RN1
MGBT-F120W/RN1
MGBT-F180W/RN1
≥2000
≥2000
MGBT-F250W/RN1
● Space requirements for parallel installation of multiple modular units
To avoid back flow of the air in the condenser and operational faults of the unit, the parallel installation of
multiple modular units can follow the direction A and D as shown in the figure above, the spaces between the
unit and the obstacle are given in the figure above, and the space between adjacent modular units should not
be less than 300mm; the installation can also follow the direction B and C as shown in the figure above, the
spaces between the unit and the obstacle are given in the figure above, and the space between adjacent
modular units should not be less than 600mm; the installation can also follow the direction combination of A
