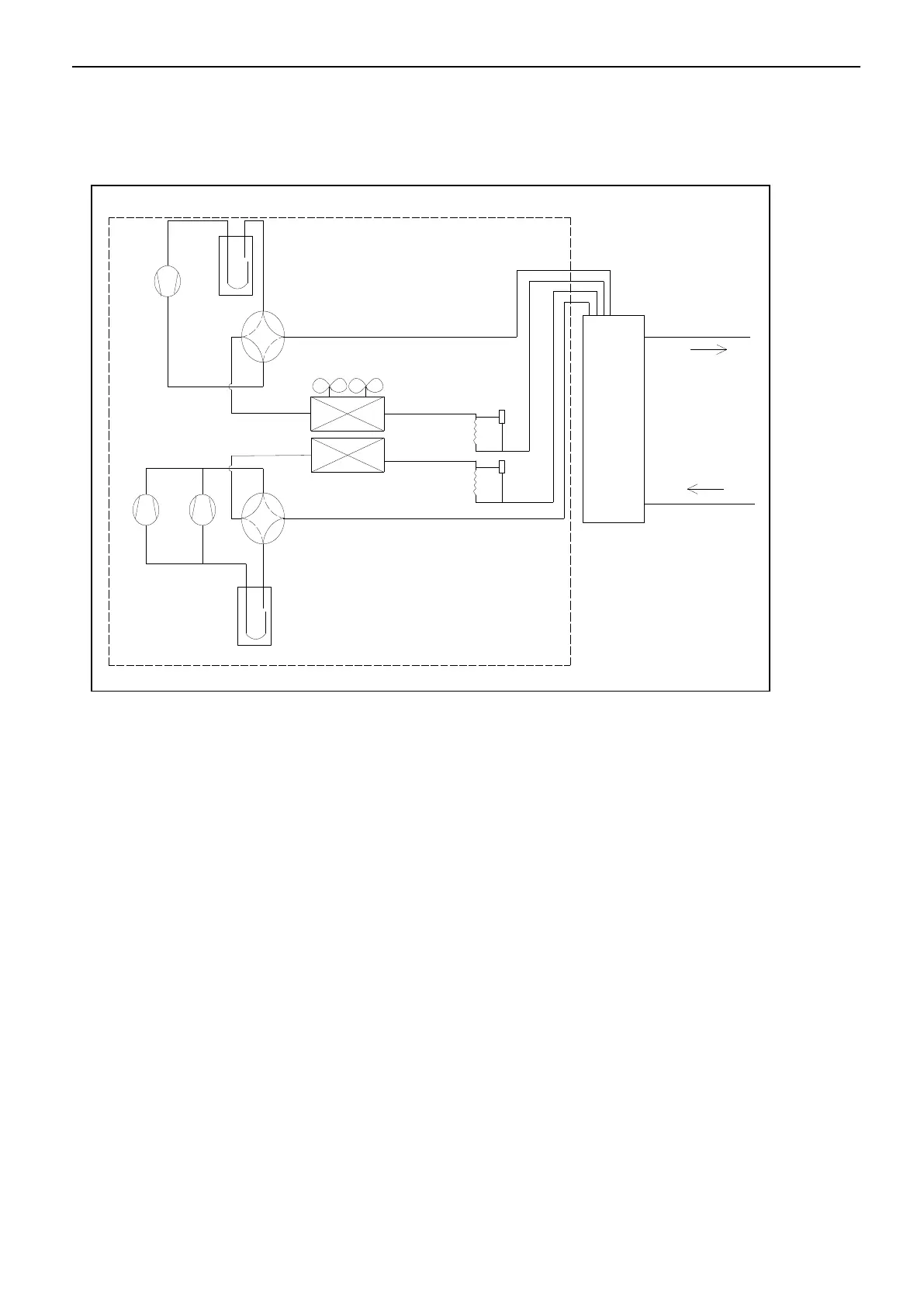

3.3 MGBT-D60W/RN1
Each module has three compressors with one separate units, one shell and tube evaporator for two
refrigerant systems.
3.4 MGBT-F120W/RN1
Each module has four compressors with two separate unit, one shell and tube evaporator for four refrigerant
systems.
Shell and tube evaporator
Condenser
Water flow direction
Compressor
B
low pressure cylinder B
4-Way valve A
Fan A
EEV
Capillary
EEV
Capillary
Fan B
4-Way valve B
Compressor
A1 digital
low pressure cylinder A
Compressor
A2
