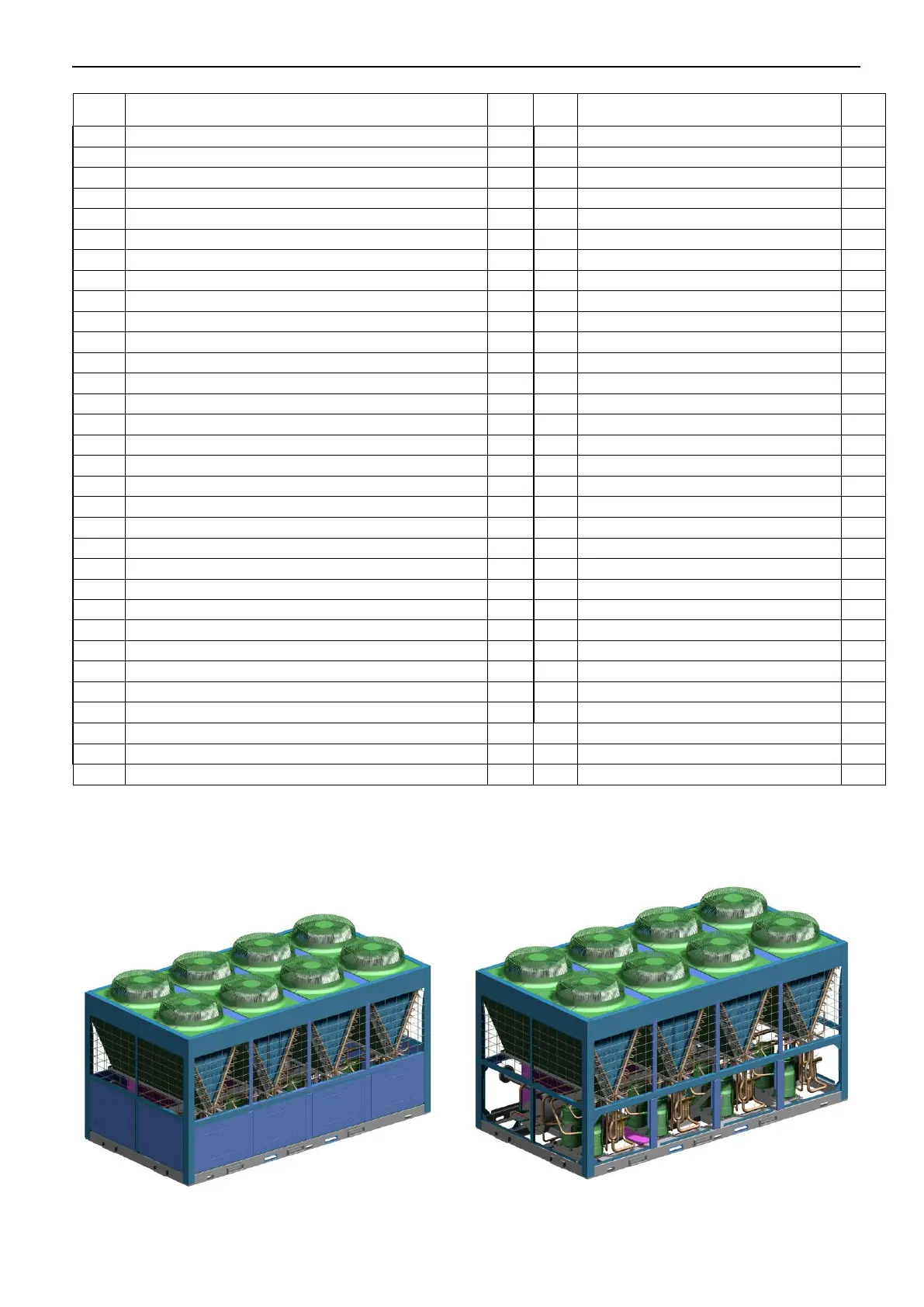

Midea MGBT-F250W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
70
No.
Part Name
Qty
No.
Part Name
Qty
19.9
Terminal block
8
65
I cover trunking
1
19.10
Terminal block
1
66
I panel fasteners
10
20
A cover board electronic control
1
67
I fixed plate tube
3
21
Seal plate condenser
6
68
Four-way valve assembly Ⅳ
3
22
Suction pipe ass'y
5
68.2
Pressure controller
1
23
Suction pipe ass'y
1
68.3
Meter connector
2
24
Condenser inlet pipe II
3
69
Vapor-liquid separator
6
25
I enter the tube condenser components
3
70
Vertical beam in the frame
2
26
Parts of unit B condenser
3
71
Front Panel
4
27
Condenser fixed plate ass'y of unit B
3
72
Strengthen the beam I
4
28
Axial fan
6
73
Network Rail fixed plate I
4
29
Three-phase asynchronous motor
5
74
Front grille
6
30
Three-phase asynchronous motor
1
75
Welded parts of installation base
6
31
Motor bracket bonding parts
12
76
Compressor
6
32
Installation base plate of condenser
12
77
Input pipe ass'y of evaporator(unit C)
1
33
Condenser fixed plate ass'y of unit A
3
78
I fixed plate throttle parts
2
34
Condenser parts of unit A
3
79
Input pipe ass'y of evaporator(unit B)
1
35
Tube fixed plate II
2
80
Input pipe ass'y of evaporator(unit A)
1
36
Welded parts of water pan
3
81
Target flow-volume controller
1
37
In lane bridge II
2
82
Total water temp. sensor ass'y
1
38
Tube fixed plate III
12
83
Pipe temp. sensor ass'y
9
39
Evaporator tube assembly output
1
84
Pipe temp. sensor ass'y
1
39.1
Pressure controller
1
85
Pipe temp. sensor ass'y
6
40
Evaporator tube assembly output
1
86
Wired controller
1
40.1
Pressure controller
1
87
Indoor temp. sensor ass'y T41
3
41
Evaporator tube assembly output
1
88
Discharge temp. controller
6
41.1
Pressure controller
1
89
Electrical heating belt compression
6
42
I four-way valve assembly
1
90
Electronic expansion valve coil
6
42.2
Pressure controller
1
91
Connection lines 1 of compressor
4
42.3
Meter connector
2
92
Connection lines 3 of compressor
2
43
Four-way valve assembly Ⅱ
1
93
Refrigerant
39
43.2
Pressure controller
1
6.9 MGBT-F250W/RN1
