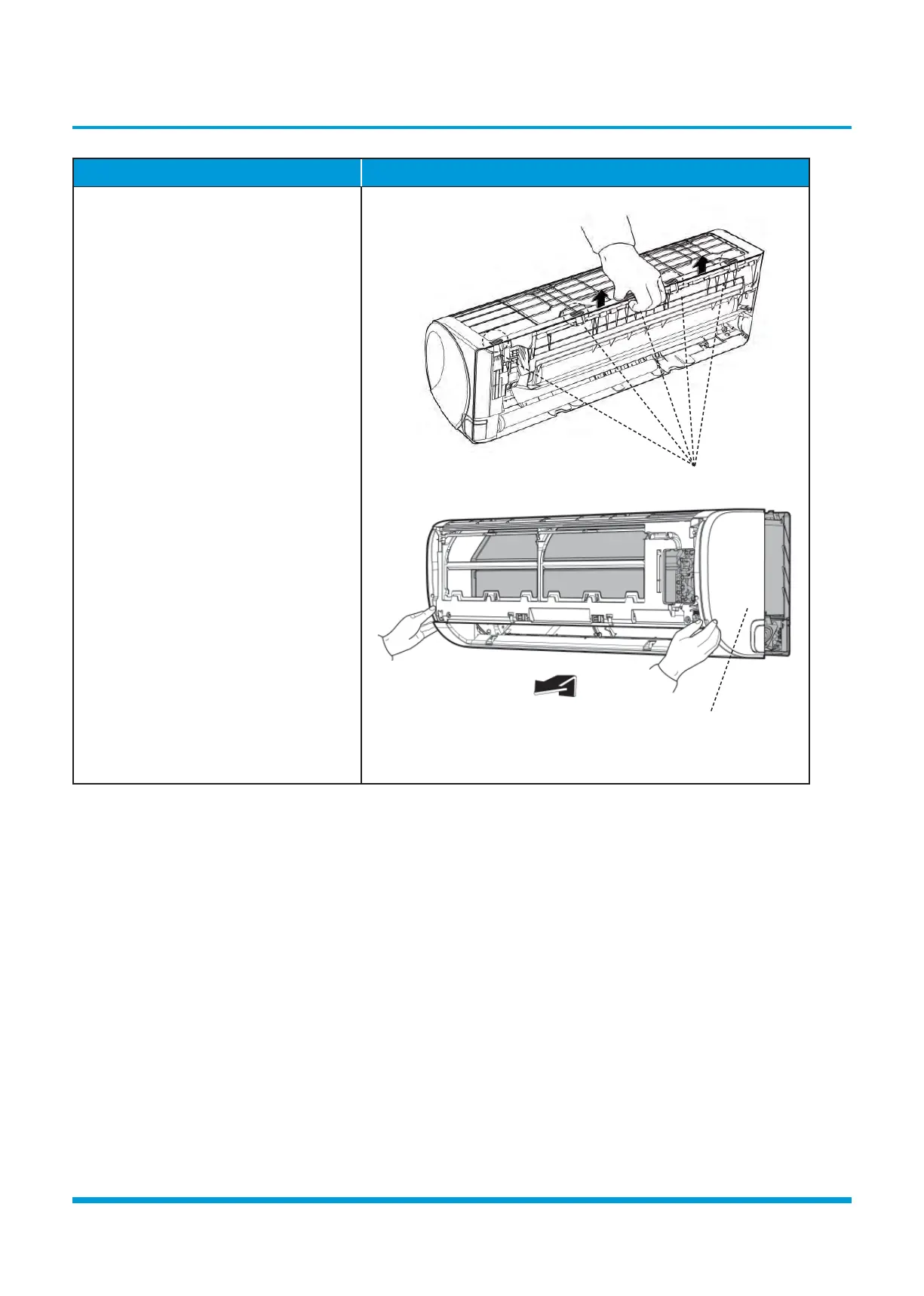

Indoor Unit Disassembly 7
Procedur
e
Illustration
11)
Release the fi
ve hooks in the back (see
CJ_MA_009).
12)
Pull out the panel frame while
pushing the hook through a clearance
between the panel frame and the heat
exchanger (see CJ_MA_010).
CJ_MA_009
CJ_MA_010
Note: This section is for refer
ence only
. Actual unit appearance may vary
.
Hooks
Panel Frame
48
50
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Precautions
6
Contents
6
In Case of Accidents or Emergency
7
Operation and Maintenance
7
Pre-Installation and Installation
7
Precautions
7
Checks to the Area
8
Checks to the Refrigeration Equipment
8
Ventilated Area
8
Work Procedure
8
Detection of Flammable Refrigerants
9
Leak Detection Methods
9
Repair to Intrinsically Safe Components
9
Repairs to Sealed Components
9
Labelling
10
Recovery
10
Decommissioning
10
Charging Procedures
10
Specifications
12
Pipe Length and Drop Height
14
Electrical Wiring Diagrams
15
Indoor and Outdoor Unit Wiring Diagram
15
Outdoor Unit Printed Circuit Board Diagram
15
Indoor Unit Abbreviations
16
Outdoor Unit Abbreviations
16
Indoor Unit Wiring Diagram: 16022000020169
17
Outdoor Unit Wiring Diagram: 16022000019533
18
Outdoor Unit Wiring Diagram: 16022000019069
19
Outdoor Unit Printed Circuit Board Diagram: 17122000040049
20
Outdoor Unit Printed Circuit Board Diagram: 17122000023675
22
Outdoor Unit Printed Circuit Board Diagram: 17122000036588
24
Product Features
28
Table of Contents
28
1 Display Function
29
Unit Display Functions
29
2 Safety Features
30
Compressor Three-Minute Delay at Restart
30
Automatic Shutoff Based on Discharge Temperature
30
Automatic Shutoff Based on Fan Speed
30
3 Basic Functions
31
Abbreviation
31
Unit Element Abbreviations
31
Fan Mode
31
Cooling Mode
31
Outdoor Fan Control
32
Condenser Temperature Protection
32
Evaporator Temperature Protection
32
Heating Mode (Heat Pump Units)
32
Auto-Mode
33
Timer Function
33
Sleep Function
33
Forced Operation Function
33
Drying Mode
33
Auto-Restart Function
33
Louver Position Memory Function
34
ECO Function
34
Self Clean (Optional)
34
Follow Me（Optional)
34
Slience （Optional)
34
Electrical Energy Consumption Control Function
34
Maintenance
35
First Time Installation Check
36
Air Purging with Vacuum Pump
36
Refrigerant Recharge
38
Re-Installation
39
Indoor Unit
39
Collecting the Refrigerant into the Outdoor Unit
39
Outdoor Unit
41
Evacuation for the Whole System
41
Refrigerant Charging
42
Indoor Unit Disassembly
43
Dimension
44
Indoor Unit Disassembly
44
Disassembly
45
Front Panel
45
Electrical Parts
50
Evaporator
53
Fan Motor and Fan
55
Step Motor
56
Outdoor Unit Disassembly
57
Outdoor Unit Table
58
Panel Plate AA01
59
Dimension
59
Panel Plate AB01
60
Panel Plate BA01
61
Panel Plate B01
63
Panel Plate CA01
65
Panel Plate D01
67
Panel Plate X101
69
Ba01
73
B01
76
Ca01
79
D01
82
X101
86
PCB for ON-OFF Models
89
PCB Board
89
Electrical Parts
89
Fan Assembly
101
Fan Motor
102
Sound Blanket
103
Four-Way Valve (for Heat Pump Models)
104
Compressor
105
Troubleshooting
107
Safety Caution
109
General Troubleshooting
110
Error Display
110
Complain Record Form
113
Information Inquiry
115
Error Diagnosis and Troubleshooting Without Error Code
120
Remote Maintenance
120
Field Maintenance
121
Quick Maintenance by Error Code
126
Troubleshooting by Error Code
126
TS01-IDU: Indoor EEPROM Parameter Error Diagnosis and Solution
127
TS01-ODU: Outdoor EEPROM Parameter Error
128
Compressor Driven Chip EEPROM Parameter Error Diagnosis and Solution
128
TS03: Zero Crossing Detection Error Diagnosis and Solution
131
DC Fan Motor
133
Indoor AC Motor
134
Outdoor DC Fan Motor
136
Open Circuit or Short Circuit of Indoor Temperature Sensor
137
Temperature Sensor Resistance Value Table for TP(for some Units)
141
Refrigerant Leakage Detection Diagnosis and Solution
142
Indoor PCB / Display Board Communication Error Diagnosis and Solution
143
TS08-S: Current Overload Protection Diagnosis and Solution
144
Compressor Check
147
High Pressure Protection
151
TS12-S: Inverter Compressor Drive Error Diagnosis and Solution
152
TS13-INV: Low Pressure Protection Diagnosis and Solution
153
Low Pressure Protection
154
TS14: Indoor Units Mode Conflict (Match with Multi Outdoor Unit)
155
TS34: AP Mode Is Actived but There Is no WIFI Kit Installed
157
Check Procedures
158
Temperature Sensor Check
158
IPM Continuity Check
160
Temperature Sensor Resistance Value Table for T1,T2,T3 and T4
162
Pressure on Service Port
164
Cooling Chart(R410A)
164
Heating Chart(R410A)
165
Cooling Chart(R22)
166
Heating Chart(R22)
167
Cooling Chart(R32)
168
Heating Chart(R32)
169
System Pressure Table-R22
170
System Pressure Table-R410A
171
System Pressure Table-R32
172
