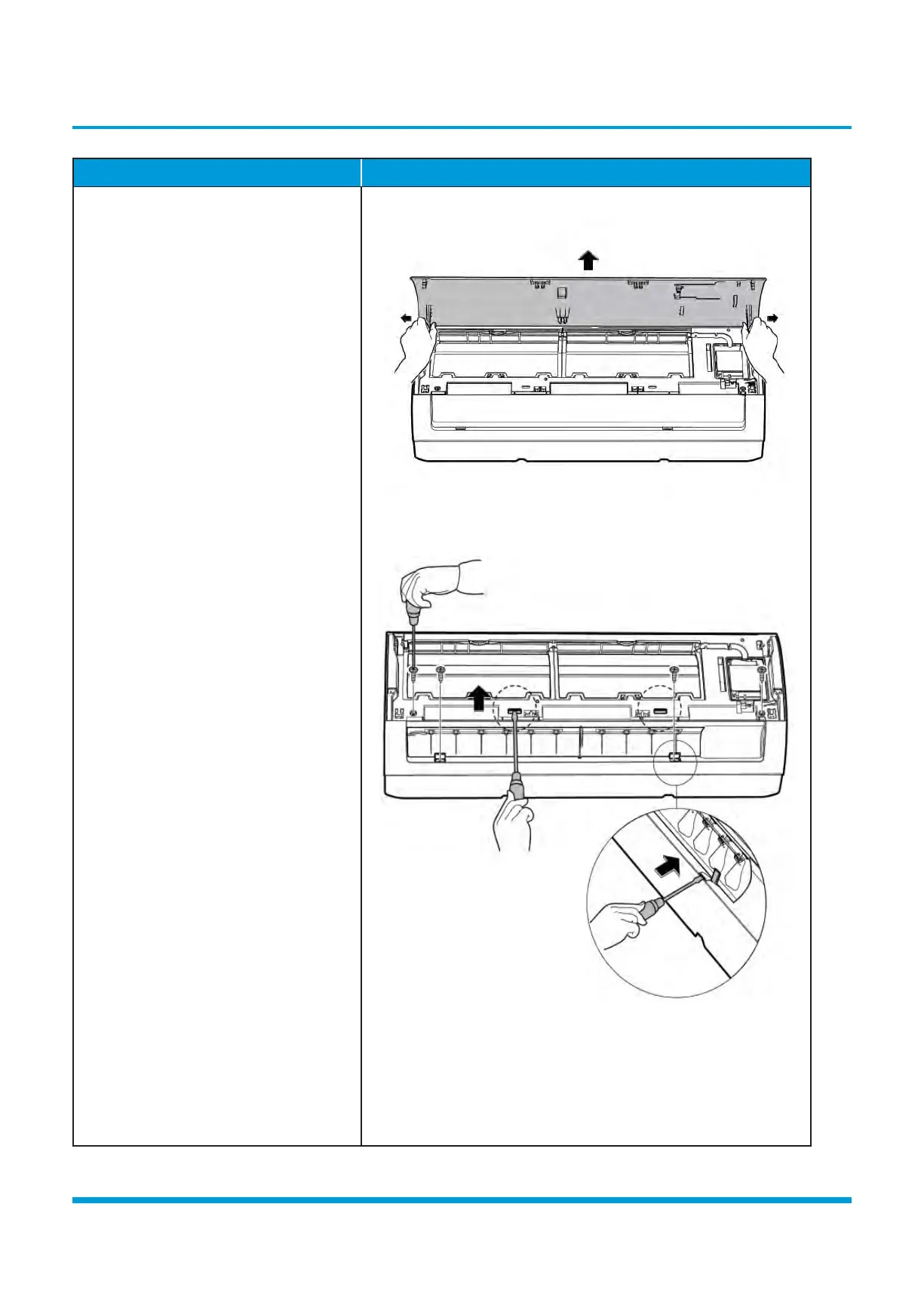

Indoor Unit Disassembly 6
Procedur
e
Illustration
8)
Slide the front panel side to side to
release each axis (see
CJ_MA_007
).
9)
Open the screw caps(2) and the
remove the scr
ews(see CJ_MA_008).
10)
Release the 2 hooks.
CJ_MA_007
CJ_MA_008
Note: This section is for refer
ence only
. Actual unit appearance may vary
.
47
