Midea MOX133-09HFN8-QRD0GW User Manual

 Outdoor Unit Disassembly 21 
Procedure Illustration

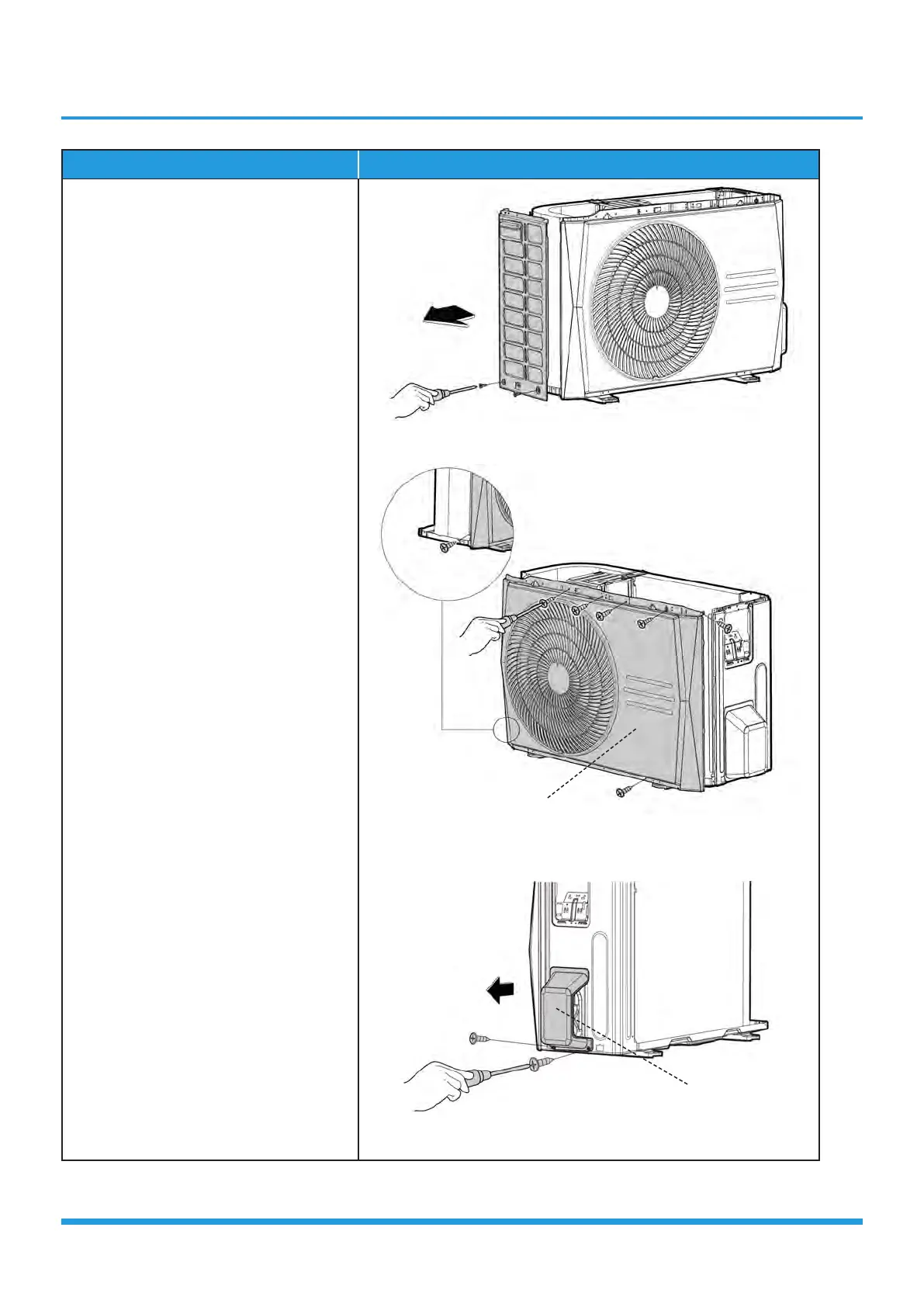

4) Remove the screws of the left panel
and then remove the right panel
(2 screws) (see CJ_B01_003).
5) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_B01_004).
6) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screws) (see CJ_
B01_005).
CJ_B01_003
CJ_B01_004
CJ_B01_005
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Water Collecting Cover
