Outdoor Unit Disassembly 22
Procedure Illustration

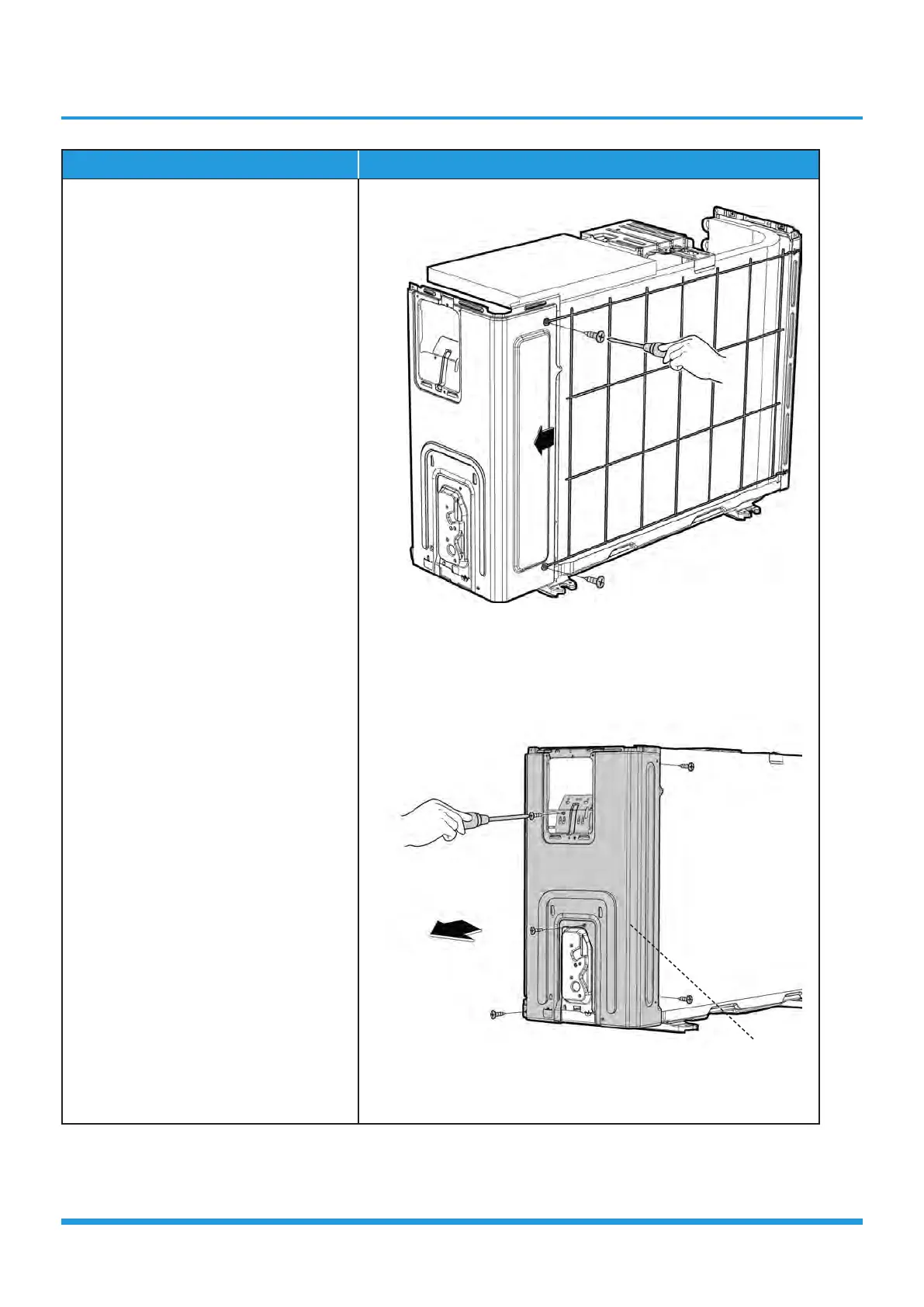

7) Remove the screws of the rear net and
then remove the rear net (2 screws)
(see CJ_B01_006). (for some models)
8) Remove the screws of the right panel
and then remove the right panel
(5 screws) (see CJ_B01_007).
CJ_B01_006
CJ_B01_007
Note: This section is for reference only. Actual unit appearance may vary.
Right Panel
To Next Page
