 Outdoor Unit Disassembly 36 
3. PCB board 3
Procedure Illustration
1) Disconnect the connectors for fan
motor (see CJ_ODU_PCB_003).
2) Disconnect the wires connected
to the compressor (see CJ_ODU_
PCB_003).
3) Disconnect the wires connected to
Pipe temperature sensor (see CJ_
ODU_PCB_003).
4) Disconnect the earth wire (see CJ_
ODU_PCB_003).
5) Remove the PCB board (see CJ_ODU_
PCB_003).

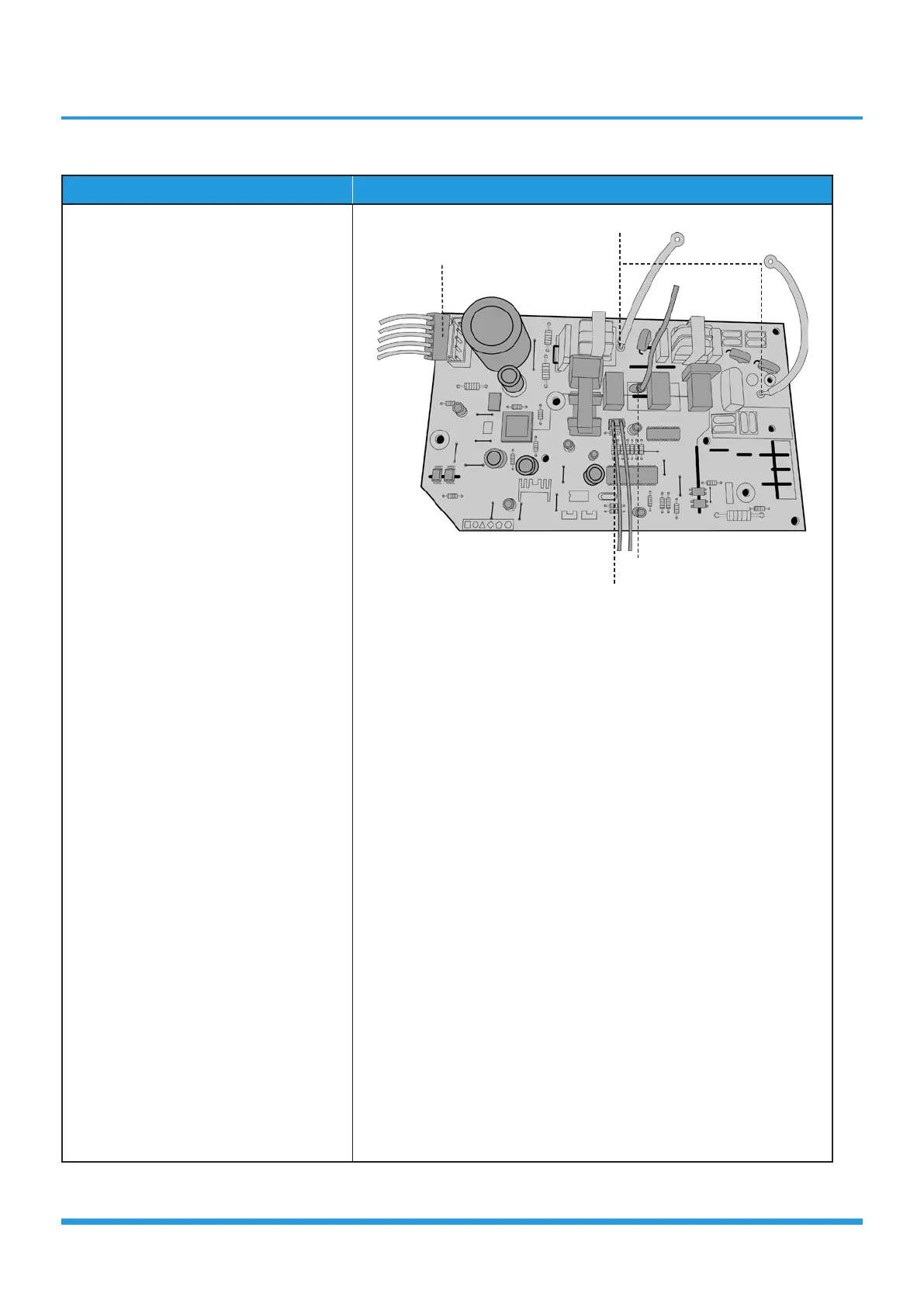

CJ_ODU_PCB_003
Note: This section is for reference only. Actual unit appearance may vary.
Fan motor
Compressor
Pipe temperature sensor
Earth wire
