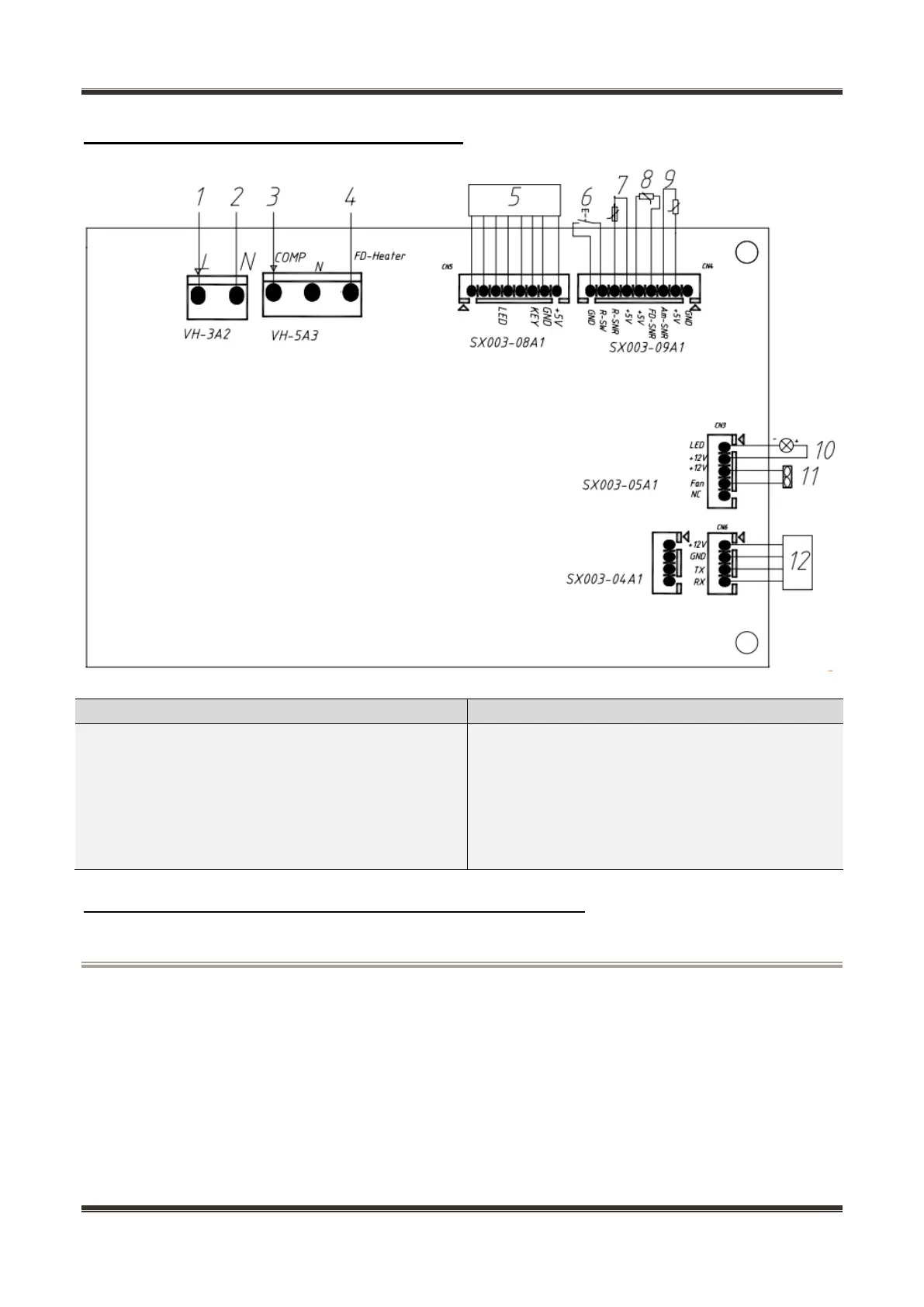

5.3 Main PCB terminal connection diagram
The connecting terminals list
Connecting terminals
Connecting terminals
1+2.Power supply
3. Compressor
4. Freezing defrost heater
5.Display control panel (Internal)
6. Light switch
7. Freezing temperature sensor
8. Freezing defrost sensor
9. Ambient temperature sensor
10. LED of freezing chamber
11. Freezing fan motor
12. Display control panel(outer)
5.4 Inverter board terminal connection diagram（None）
