Service Manual_2020-V1.0
19

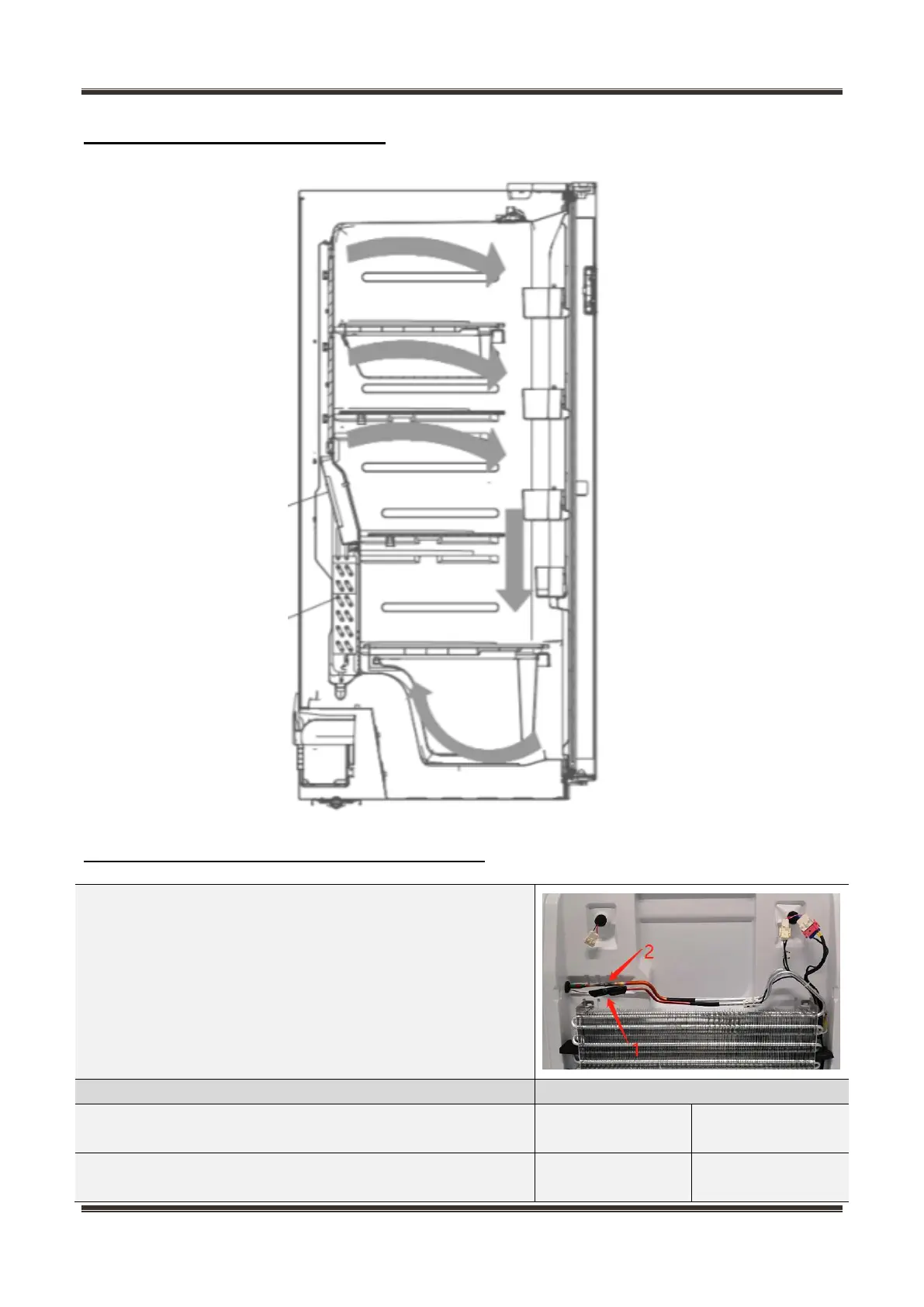

6.3 Circulating route of cooling air
6.4 Welding points in chambers or foam layer
1) Welding points on freezer evaporator
Welding point
Pipe outer diameter (mm)
1-Freezer capillary and inlet of evaporator
Copper pipe: Φ6
Copper pipe:
Φ6.35
2-Heat transition tube and outlet of evaporator
Copper pipe: Φ6
Copper pipe:
Φ6.35
