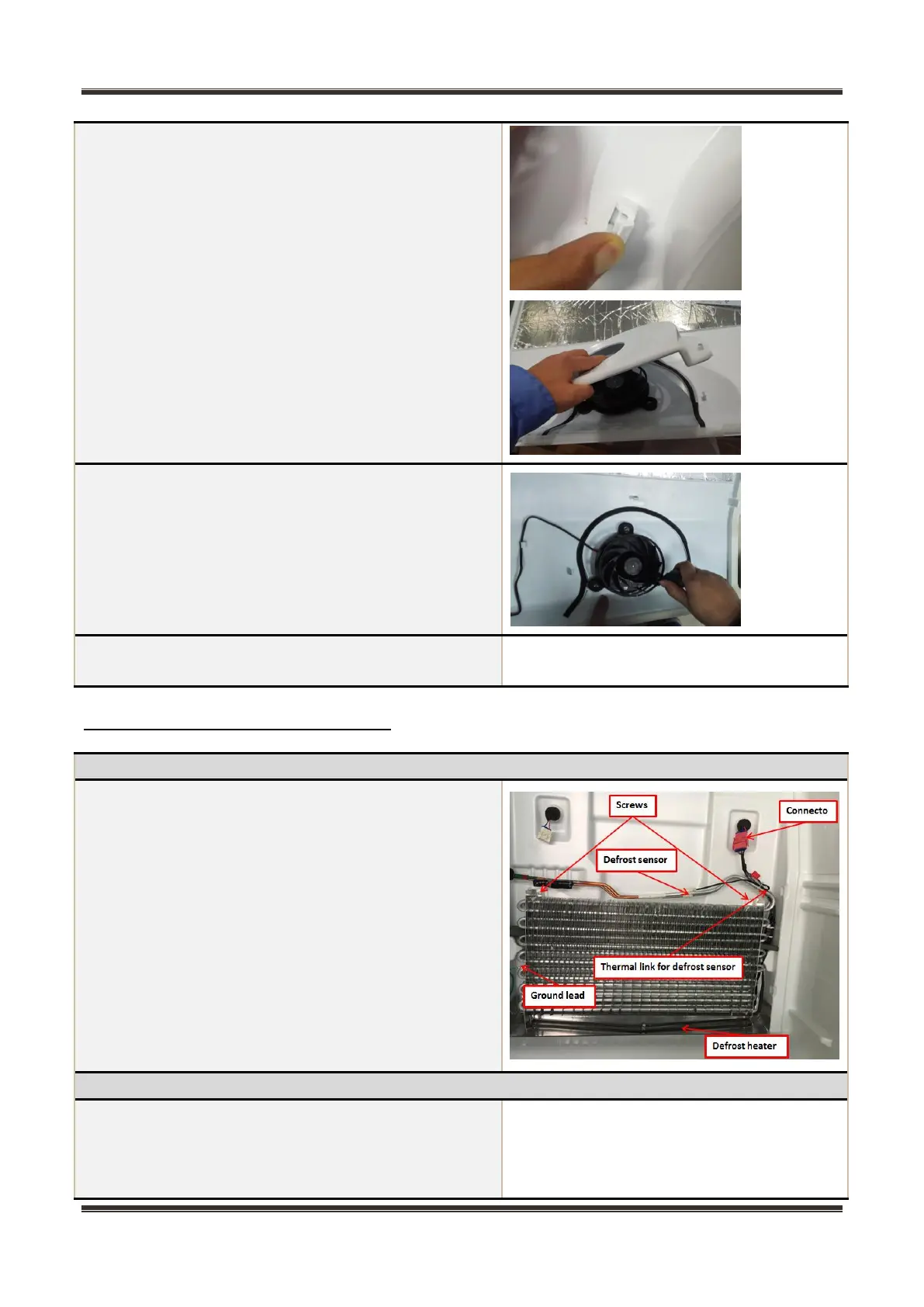

1）Pry up all plastic hooks, and separate the back
cover plate from air duct assembly.
2）Use cross screwdriver to remove the 3 pcs screws..
3）Take off the fan motor, replace a new one, the
reverse operation is for assembly.
7.6 Evaporator and Defrost system
Evaporator in freezing chamber
1）Remove the air duct components in freezing and
variable temperature chamber.
2）Disconnect all connecting terminals.
3）Remove the welding on inlet and outlet tubes.
4）Remove the evaporator.
Components on the evaporator
Defrost heater with defrost sensor and fuse, it can be
replaced separately.
1） Cut off wiring terminal
2） Cut off the band which fixes the sensor
