Service manual
5
3.

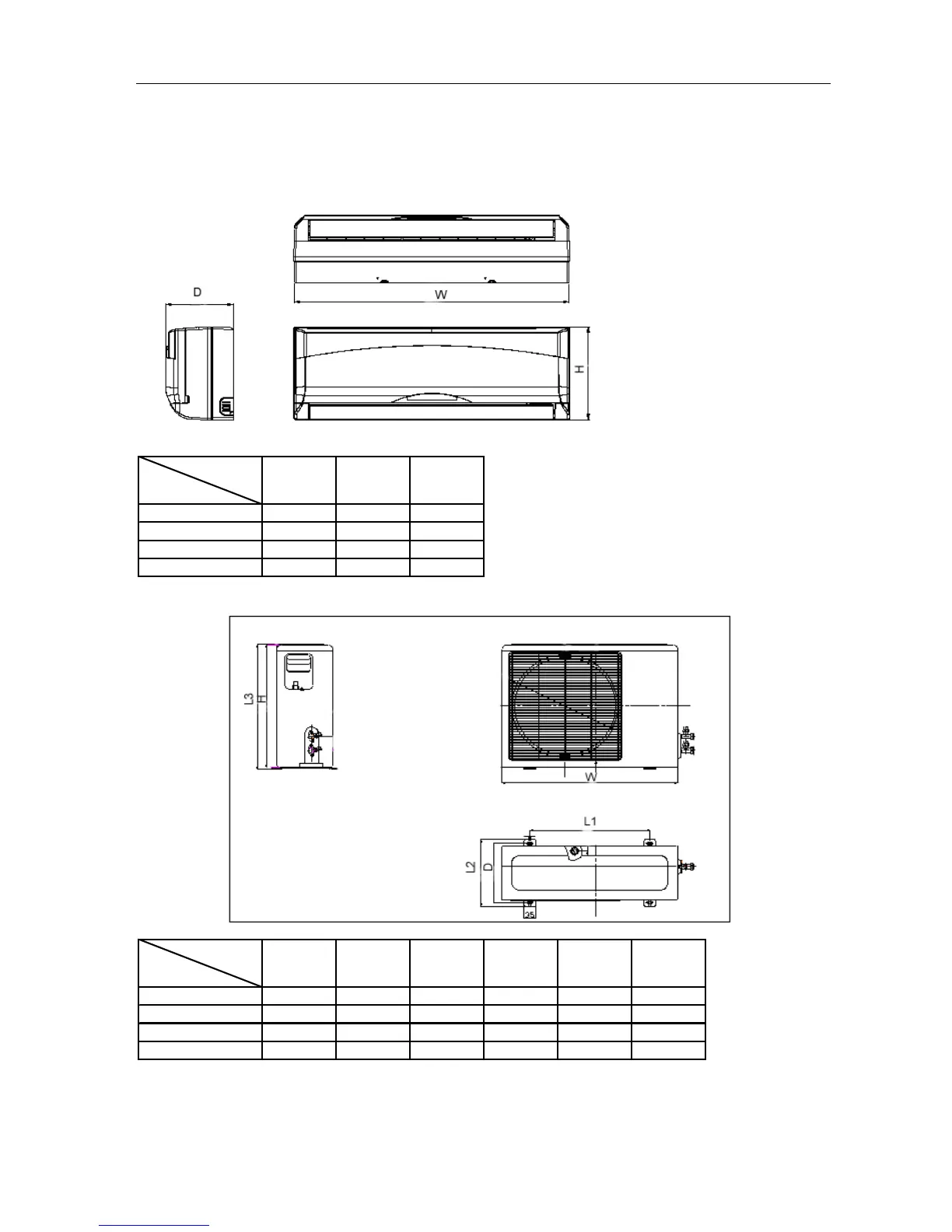

Dimension
3.1
Indoor un
it
Dimension
Mode
W
H
L
7K
750
250
188
9K
750
250
188
12K
815
280
195
18K
920
292
225
3.2
Outdoor unit
Dimension
Mode
W
H
L
L1
L2
L3
7K
500
535
235
458
280
540
9K
780
540
250
548
266
560
12K
780
540
250
548
266
560
18K
845
695
335
560
360
715
8
10
Table of Contents
Default Chapter
2
Table of Contents
2
1 Precaution
5
Safety Precaution
5
Warning
5
2 Function
7
3 Dimension
9
Indoor Unit
9
Outdoor Unit
9
4 Specification
10
5 Refrigerant Cycle Diagram
12
6 Operation Limits
13
Cooling Operation
13
Heating Operation
13
7 Schematic Diagram and Wiring Diagram
15
Schematic Diagram
15
Wiring Diagram
16
8 Installation Details
20
Wrench Torque Sheet for Installation
20
Connecting the Cables
20
Pipe Length and the Elevation
20
Air Purging of the Piping and Indoor Unit
22
Pumping down (Re-Installation)
23
Re-Air Purging (Re-Installation)
24
Balance Refrigerant of the 2-Way, 3-Way Valves
25
Evacuation
26
Gas Charging
27
9 Pressure Table
28
Msc-07Crn1
28
Msc-07Hrn1
28
Msc-09Crn1
28
Msc-09Hrn1
29
Msc-12Crn1
29
Msc-12Hrn1
29
Msc-18Crn1
30
Msc-18Hrn1
30
10 Capacity Table
31
Msc-07Crn1
31
Msc-07Hrn1
31
Msc-09Crn1
32
Msc-09Hrn1
32
Msc-12Crn1
33
Msc-12Hrn1
33
Msc-18Crn1
34
Msc-18Hrn1
34
11 Electronic Function
35
Proper Symbols and Their Meaning
35
Function
35
Protection
35
Fan-Only Mode
36
Cooling Mode
36
Dehumidifying Mode
37
Heating Mode
38
Defrosting Mode (Available for Heating Mode)
39
Auto Mode
40
Force Cooling Function
40
Sleep Mode
41
Force Cooling Function
41
Auto Restart Function
41
Turbo Mode
41
PLASMA ( Optional)
41
Anion( Optional)
41
12 Model and Parameters
43
13 Troubleshooting
44
Display Board
44
Diagnostic Chart
45
Resetting Phenomenon Often Occurs During Operation
46
Operation Lamp Flashes and Timer Lamp off
46
Operation Lamp Flashes and Timer Lamp on
46
Operation Lamp off and Timer Lamp Flashes
47
Operation Lamp on and Timer Lamp Flashes
47
Operation Lamp Flashes, Timer Lamp Flashes
47
14 Characteristic of Temperature Sensor
48
