Midea MSH-07CR - 7 Schematic Diagram and Wiring Diagram; Schematic Diagram

Midea MSH-07CR
42 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Service manual
12
7. Schematic diagram and Wiring diagram

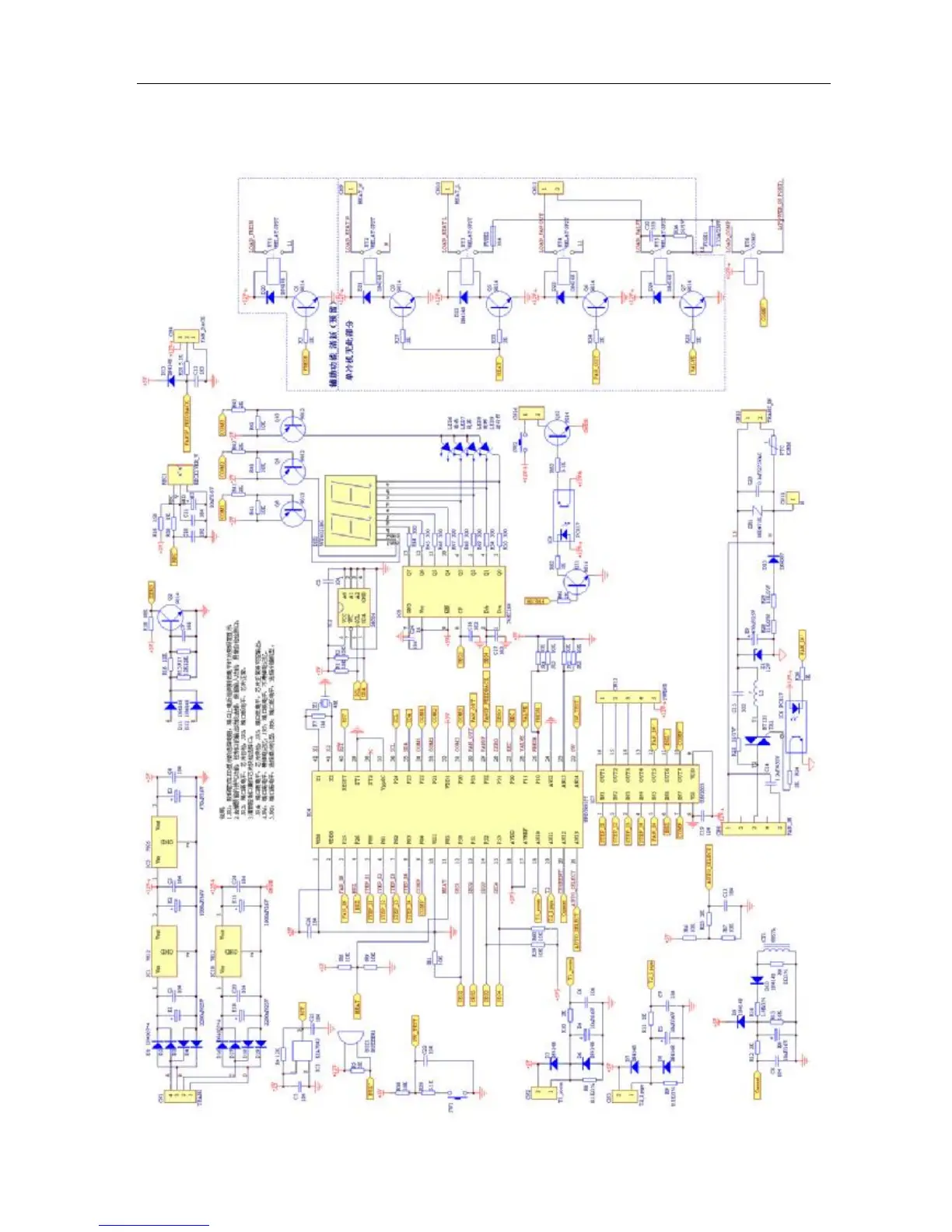

7.1. Schematic diagram
