Midea MTA-76C(H)RN1

Midea R410A T3 Top-discharge Split Type Series 50Hz MCAC-UTSM-201501
71

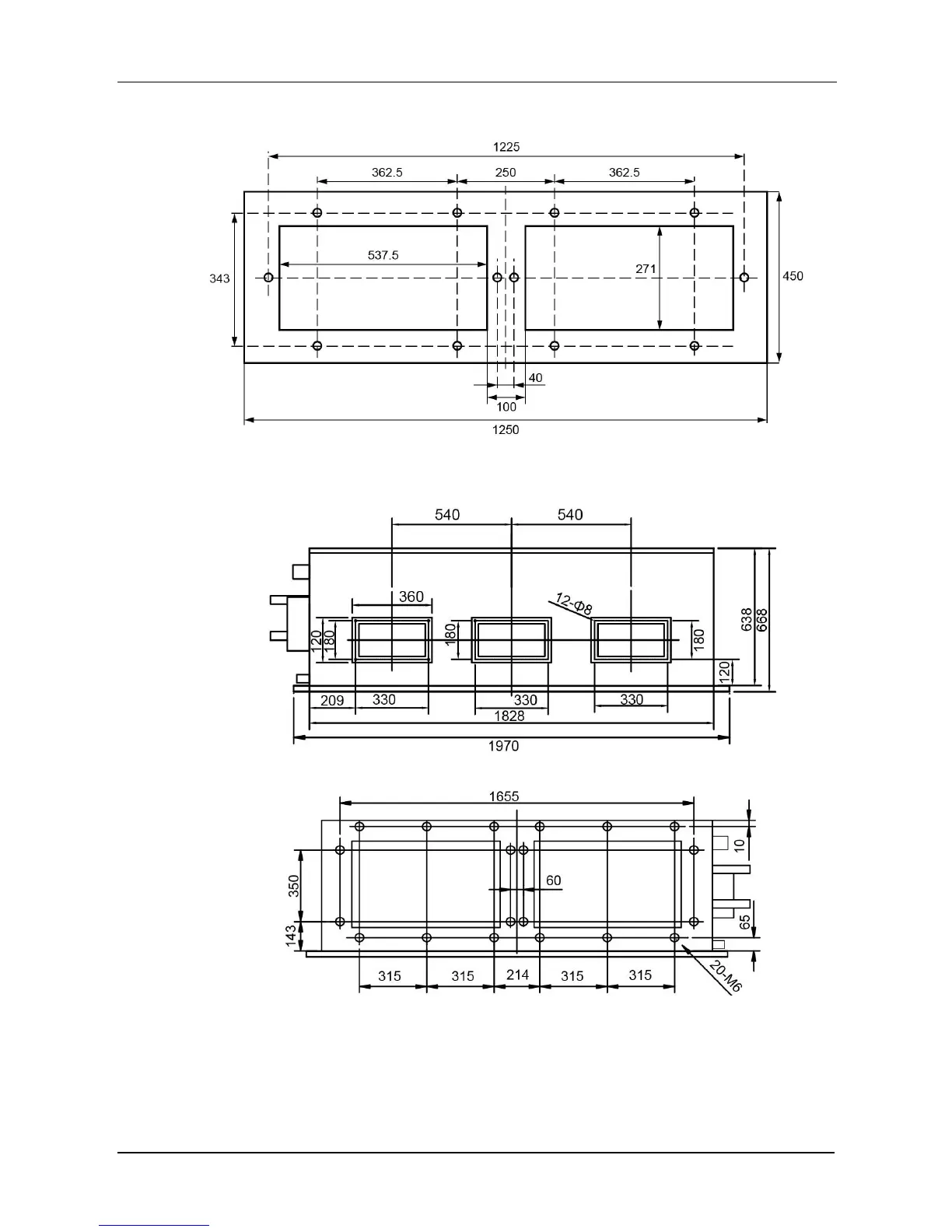

View of air inlet side (Unit: mm)
MHA1-150C(H)R, MHA1-192C(H)R:
View of air outlet side (Unit: mm)
View of air inlet side (Unit: mm)
 All pipelines must be connected closely and soundly without leak of air. The pipelines must
be adiabatic and free from condensation. The key points of duct connection are as following
picture.
