Midea MTB1T-96CWN1

MCAC-UTSM-201707 Midea R410A T3 50Hz Top-discharge Series
44

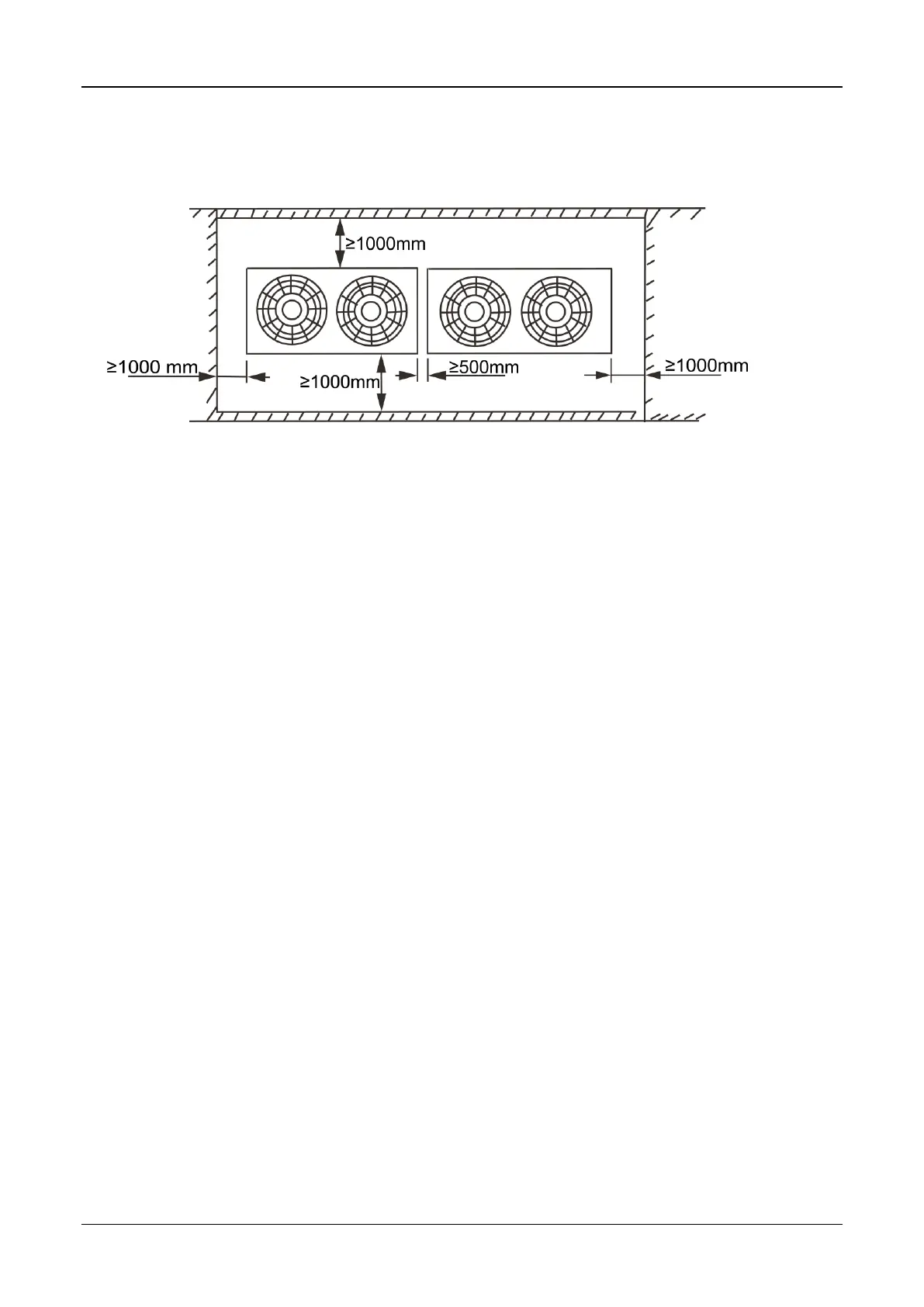

3. Service Space
MOVTA-96C(H)N1-R
Notes:
1. In case any obstacles exist above the outdoor unit, such obstacles must be 2000mm above the outdoor unit.
2. If miscellaneous articles are piled around the outdoor unit, such articles must be 400mm below the top of the
outdoor unit.
