Midea MTB1T-96CWN1

Midea R410A T3 50Hz Top-discharge Series MCAC-UTSM-201707
71
Indoor unit
Outdoor unit
Model
MTB1T-96CWN1 MTB1T-96HWN1
MHB1T-96CWN1 MHB1T-96HWN1
MFA3T-96CRN1 MFA3T-96HRN1
MOVTA-96CN1-R
MOVTA-96HN1-R
Power
220-240V~, 50Hz
380-415V~, 3Ph, 50Hz
Switch capacity of the main
power supply/Fuse(A)
20/10
70/50
Indoor unit power cable(mm
2
)
includes grounded wire
RVV-300/500 3×2.5mm
2
——
Outdoor unit power cable(mm
2
)
includes grounded wire
——
YCW-450/750 5×10mm
2
Connective wire of indoor
outside unit
RVV-300/500 4×1.0mm
2
(HEAT&COOL)
RVV-300/500 2×1.0mm
2
(COOL ONLY)
Wire controls connective wire
RVVP-300/300 5×0.5mm
2
Outdoor-outdoor unit COMwire
RVVP-300/300 3×0.5mm
2
(Shield wire)

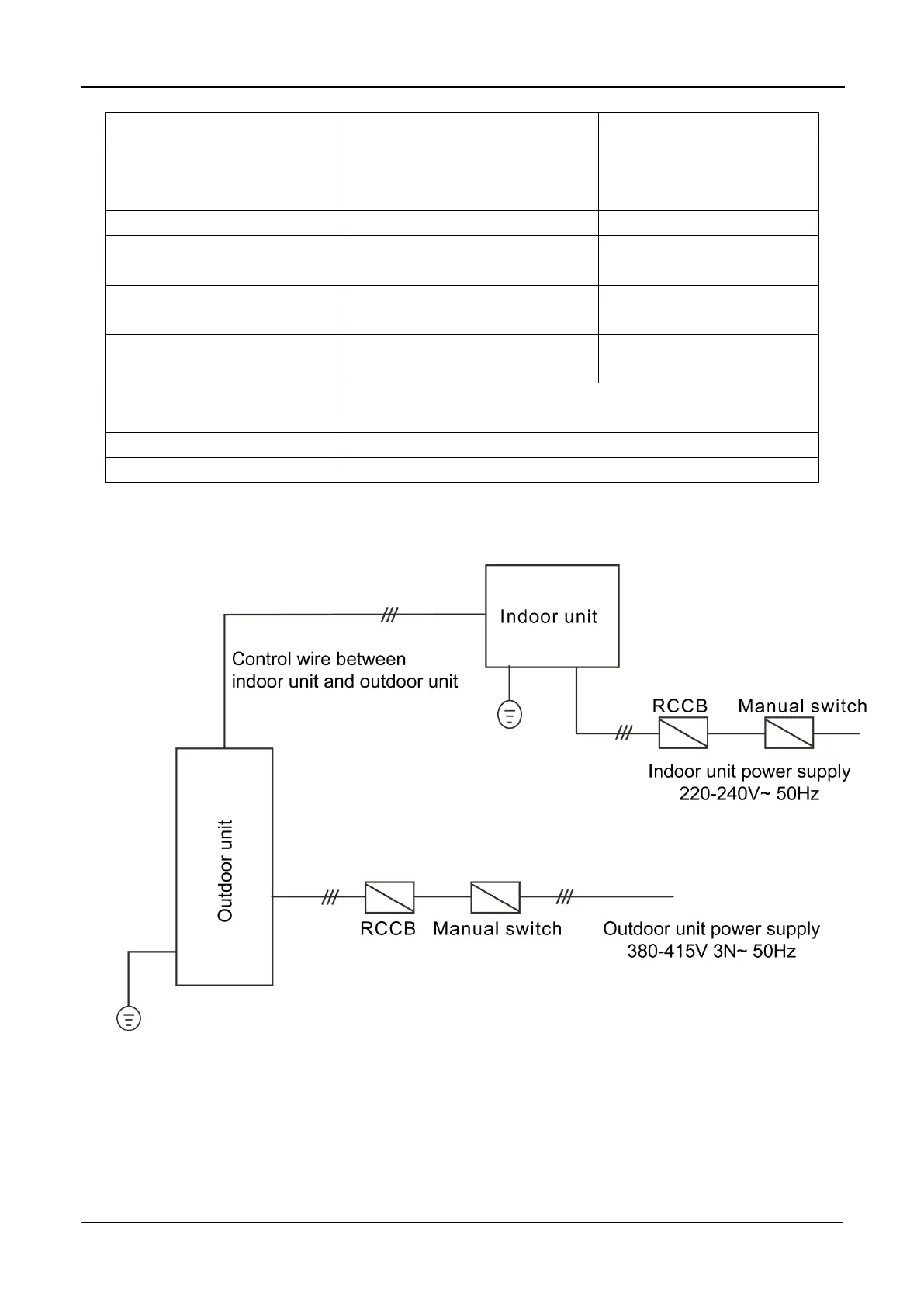

7.3 Schematic diagram
The power wires are as follows:
