MCAC-UTSM-201707 Midea R410A T3 50Hz Top-discharge Series
58
4. Installation of Outdoor Units

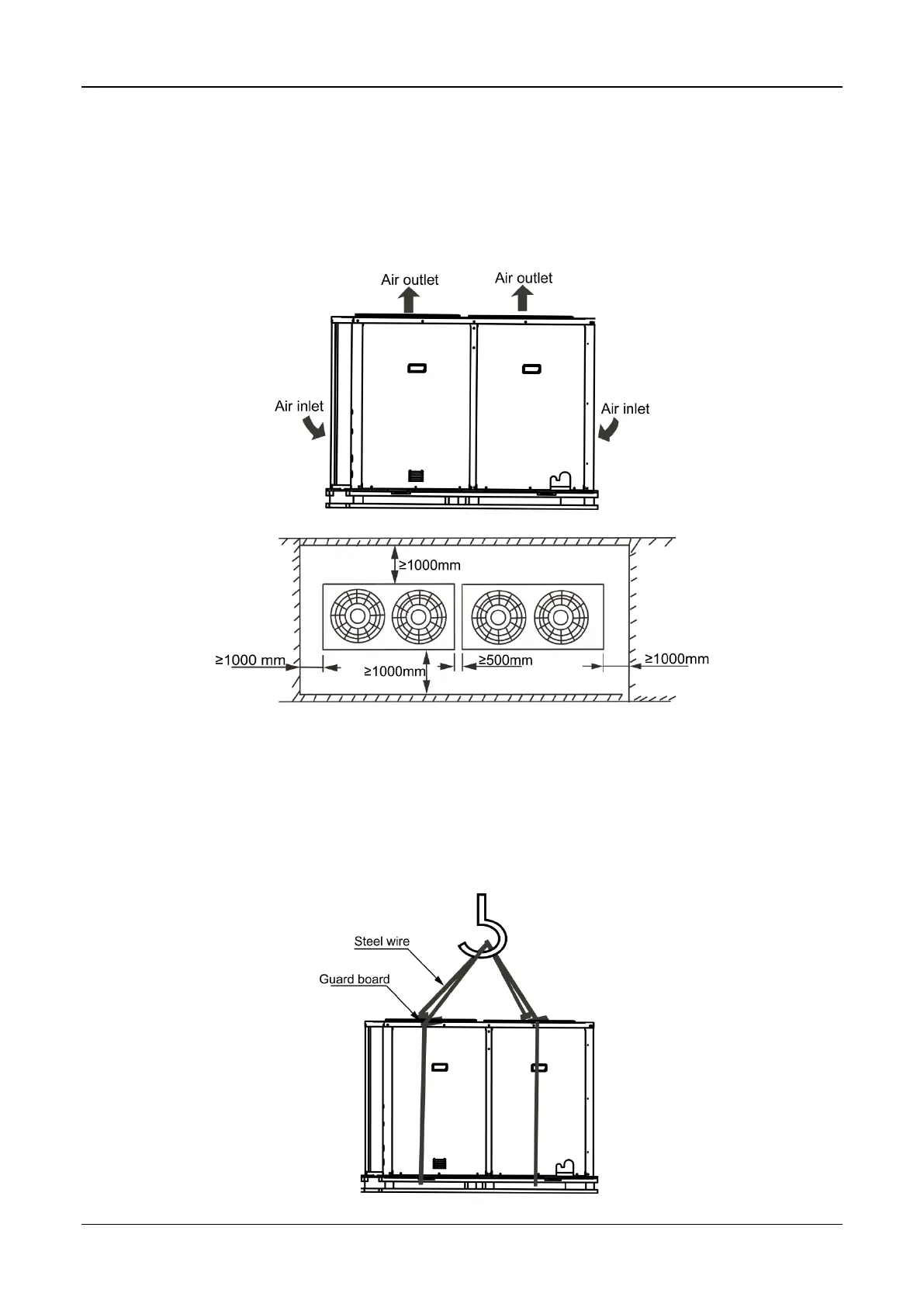

When installing the unit, leave a space for maintenance shown in the following figure. Install
the power supply at the side of the outdoor unit. For installation procedure, see the relevant
installation manual.
Use 4 steel ropes of a Φ6mm or bigger size to hoist the outdoor unit and convey into the
room.
In order to prevent scratch and deformity the outdoor unit, apply a guard board to the
surface of contact between the steel wire and the unit.
Remove the cushion used to protect the outdoor unit after finishing the transport.
