Midea R410A T3 50Hz Top-discharge Series MCAC-UTSM-201707
53

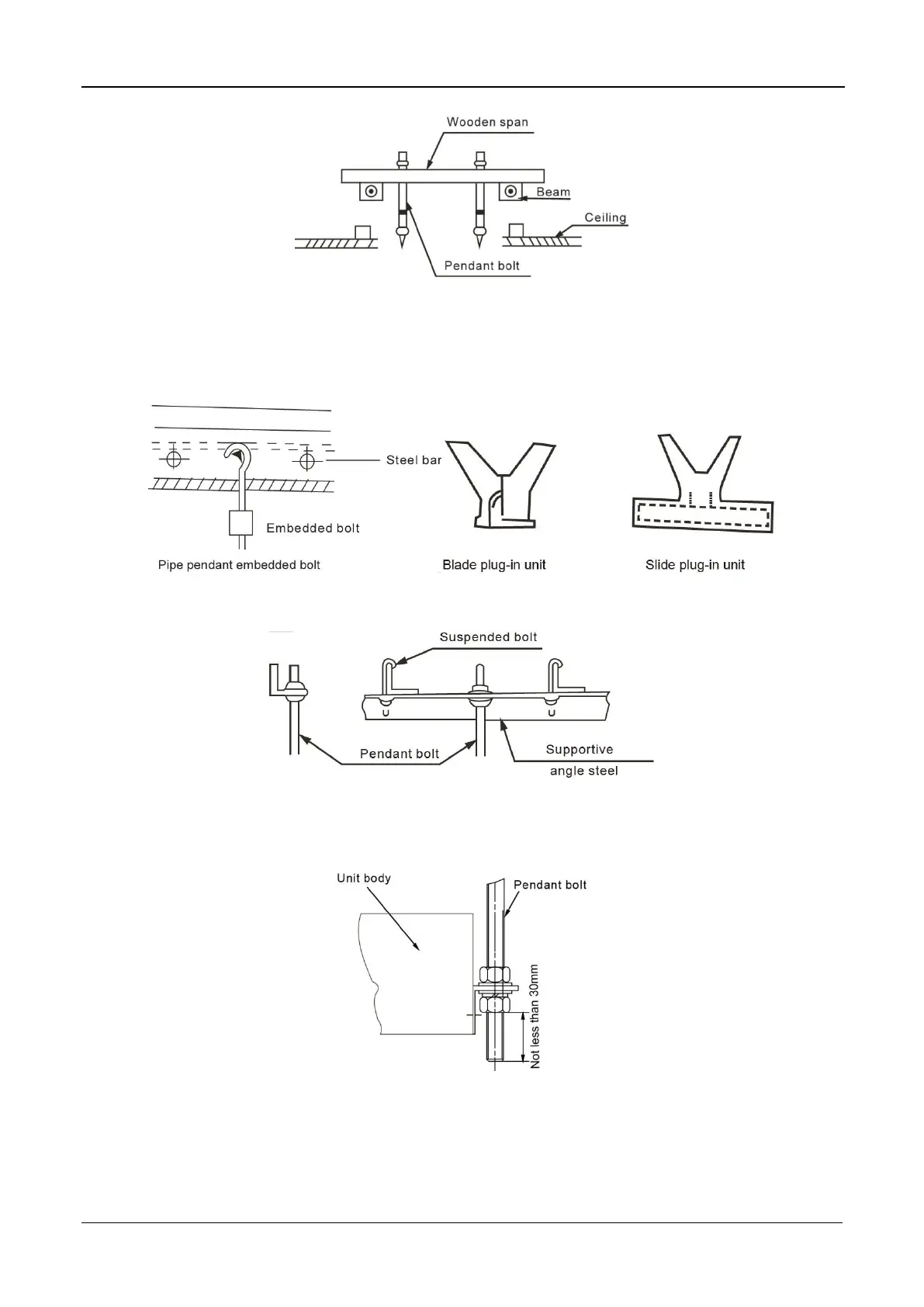

When in the new concrete roughcast environment, please use embedded bolts, embedded
pulling plugs and stick harness. On steel bar have some holes to hang pipe and embed
screw bolts.
When in steel beam and girder structure, set and use supportive angle steel.
After install the indoor units, use a hoisting device to hoist the indoor unit, and align it with
the installation screws to adjust the horizontality. Finally, Tighten the screws.
2.2 Designing and connecting the duct
The duct design must comply with the national heating air conditioner pipeline design
