Midea V5 X VRF Series User Manual

R410A All DC Inverter V5 X Series 50Hz MCAC-VTSM-2015-10
26 Specifications & Performances

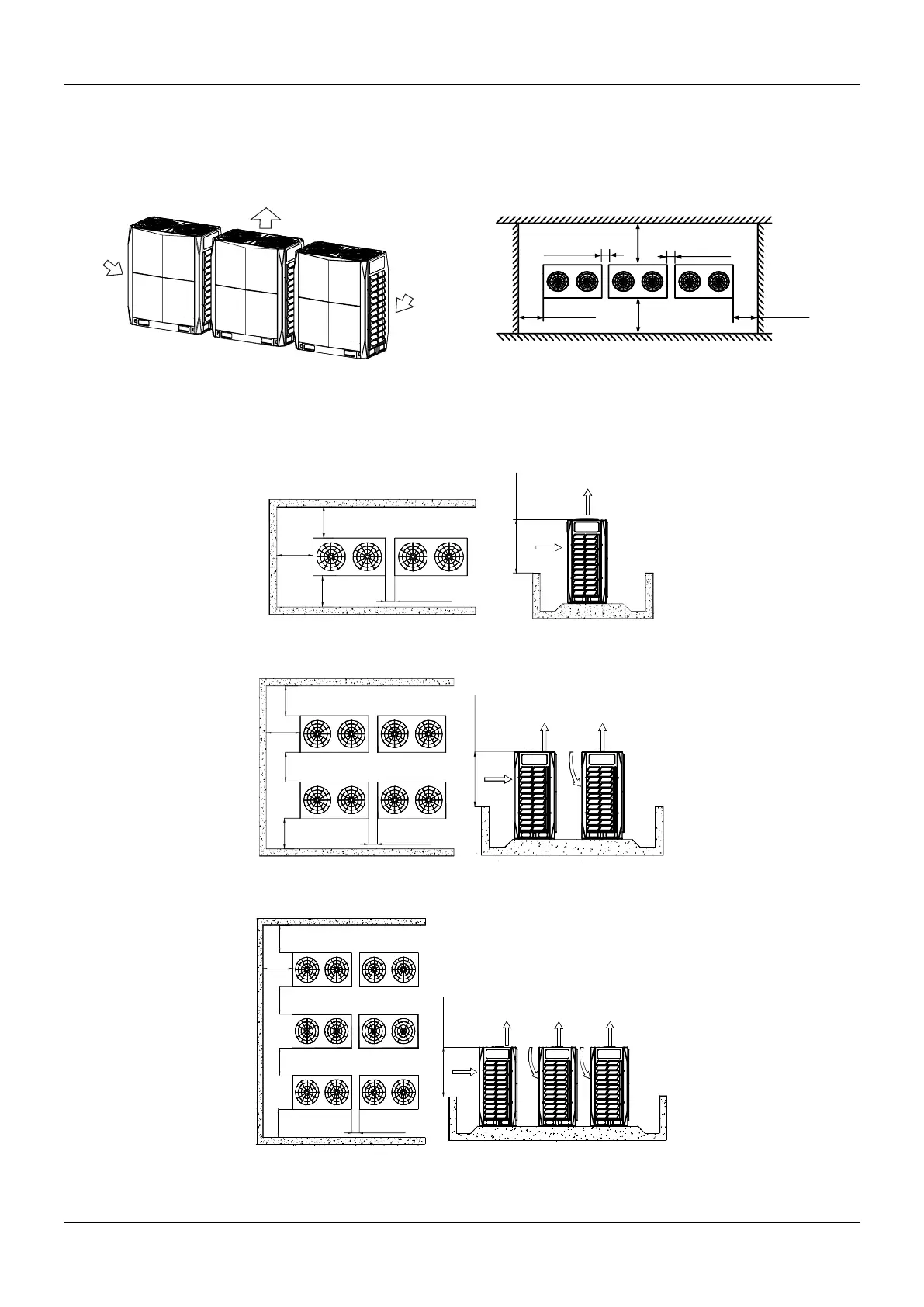

3. Service space
Ensure enough space for maintenance. Combined modules must be level.
 When installing the unit, leave enough space for maintenance.
Unit: mm (in.)
 When the outdoor unit is higher than the surrounding obstacle
Unit: mm (in.)
One row
Two rows
More than two rows
 When the outdoor unit is lower than the surrounding obstacle, to avoid cross connection of the outdoor hot
air from affecting the heat exchange capabilities, please add an air director onto the exhaust hood of the
(Air-in )
(Air-in )
(Air-out )
Installation and maintenance surface
Top view of the outdoor unit
>1000mm
>1000mm
100mm~500mm
>1000mm
>1000mm
100mm~500mm
>1m
>1m
>1m
100-500mm
Front Front
>800mm
>1m
>1m>1m
>1m
100-500mm
Front Front
Front Front
>800mm
>1m>1m
>1m
>1m
>1m
100-500mm
Front Front
Front Front
Front Front
>800mm
