Midea V5 X VRF Series User Manual

MCAC-VTSM-2015-10 R410A All DC Inverter V5 X Series 50Hz
Specifications & Performances 27
outdoor unit to facilitate heat dissipation. See the figure below. The height of the air director is HD (namely
H-h). Please make the air director on site.
 If miscellaneous articles are piled around the outdoor unit, such articles must be 800mm (31-1/2in) below
the top of the outdoor unit. The articles must be 800mm (31-1/2in) below the top of the outdoor unit.
Otherwise, a mechanical exhaust device must be added.
Unit: mm

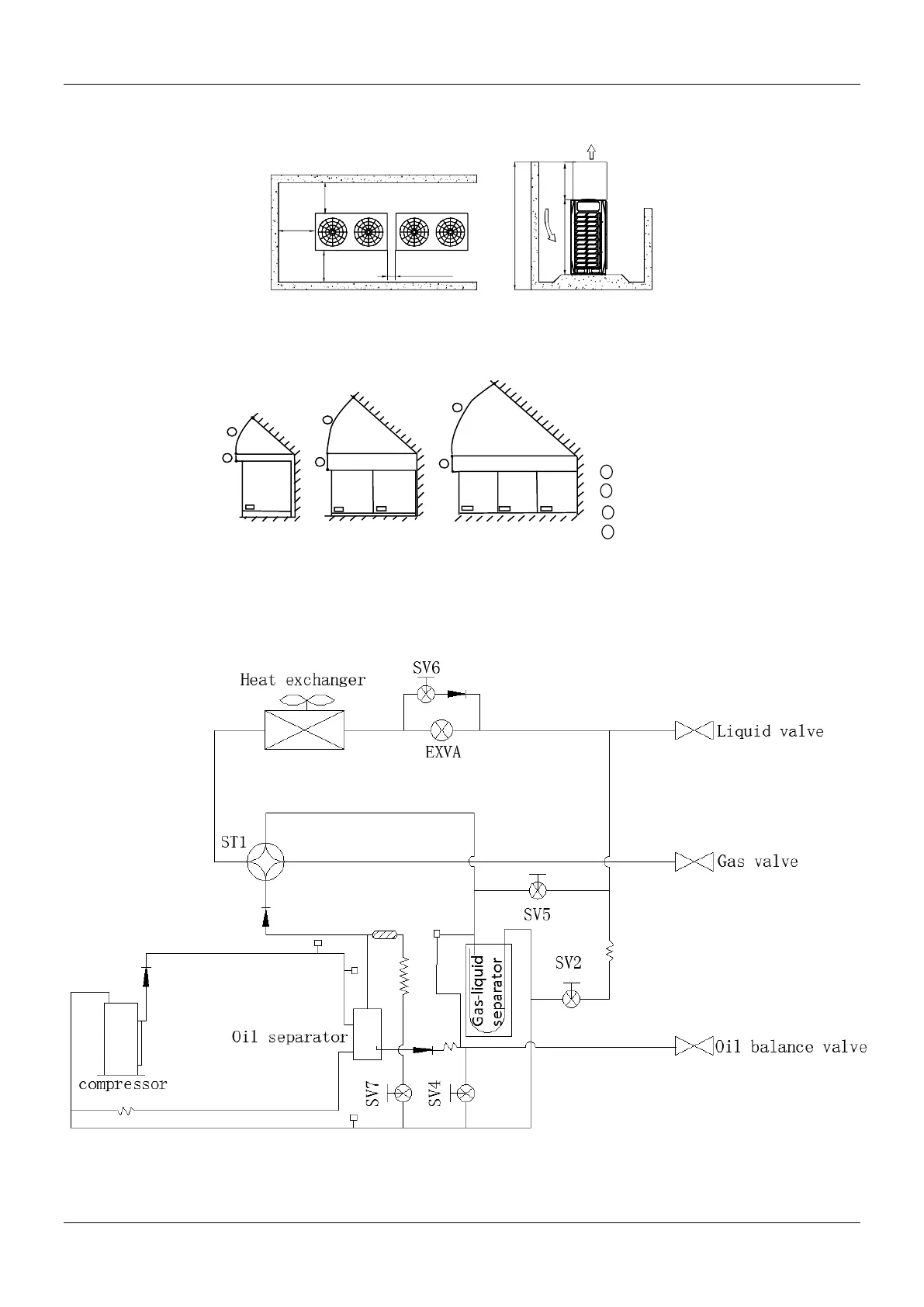

4. Piping diagrams
8, 10, 12HP
>1m
100-500mm
Front Front
>1m
>1m
h
h-H
H
A
B
C
D
>45°
>1000(39-3/8)
>300(11-7/8)
Airflow deflector
Front view
B
A
Side view
C
D
B
A
Front view
B
A
Front view
A
B
C
D
>45°
>1000mm
>300mm
Airflow deflector
