Midea V6R VRF Series User Manual

V6R VRF 50Hz
15
Part 2
-
Component Layout
and
Refrigerant Circuits
14/16/18HP

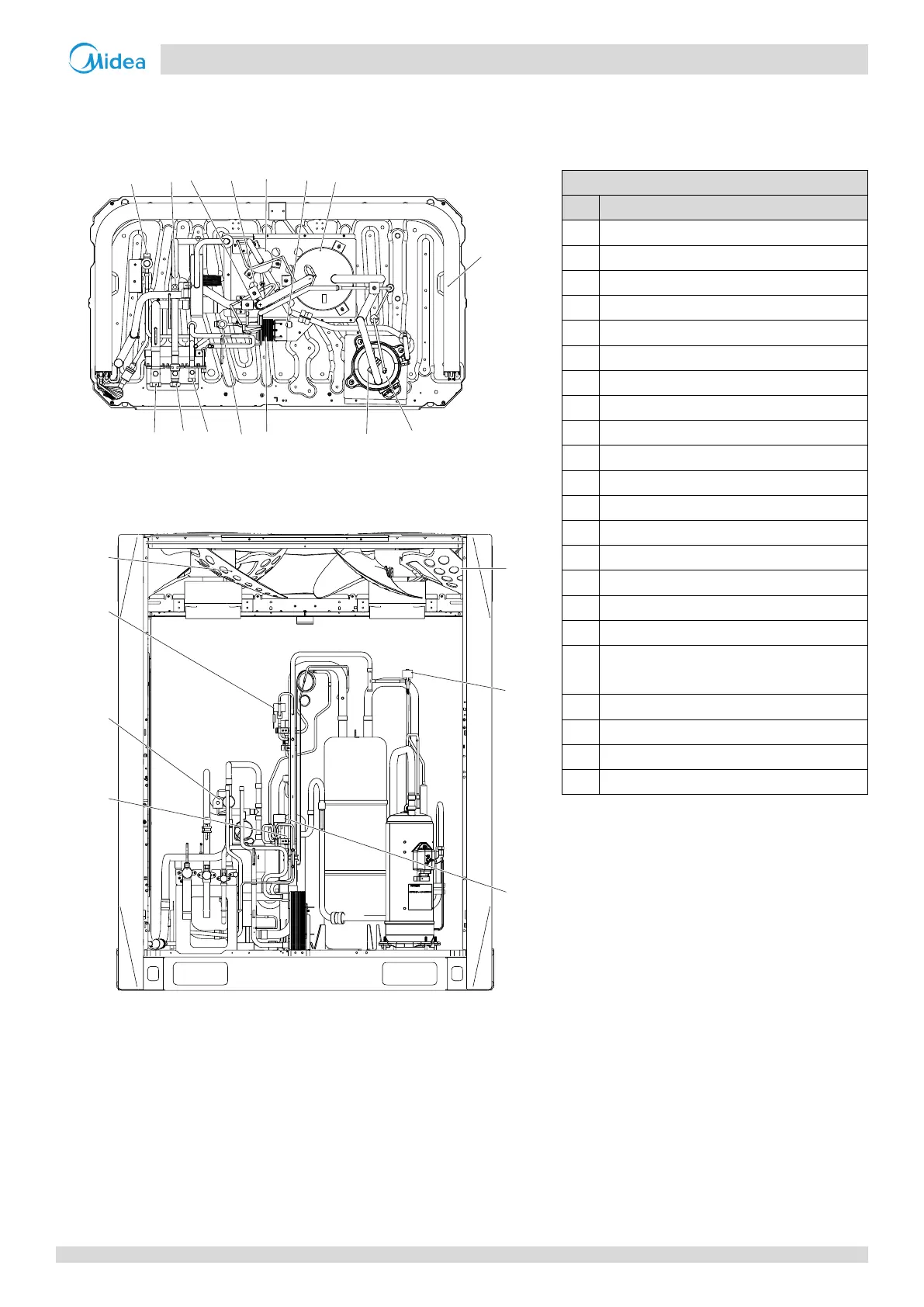

Figure 2-1.3: 14/16/18HP top view
Figure 2-1.4: 14/16/18HP front view
123
4
56
14
15
12 13
11
109
7
8
17
20
16
22
21
19
18
Legend
No.
Parts name
1
Inverter compressor
2
Discharge temperature switch
3
Plate heat exchanger
4
Electronic expansion valve (EEVC)
5
Stop valve (liquid side)
6
Stop valve (high pressure gas side)
7
Stop valve (low pressure gas side)
8
Electronic expansion valve (EEVA)
9
High pressure sensor
10
Hot gas bypass solenoid valve(SV7)
11
Low pressure sensor
12
Oil separator
13
High pressure switch
14
Gas-liquid separator
15
Heat exchanger
16
FAN B
17
Compressor vapor injection valve ( SV8A)
18
Refrigerant charge solenoid valve(SVC)
(customization option)
19
Pressure relief valve (customization option)
20
4-way valve
21
Injection bypass solenoid valve(SV5)
22
FAN A
