Midea V6R VRF Series User Manual

V6R VRF 50Hz
62
Midea
V6R
Series Service Manual
2.2 Components
Layout

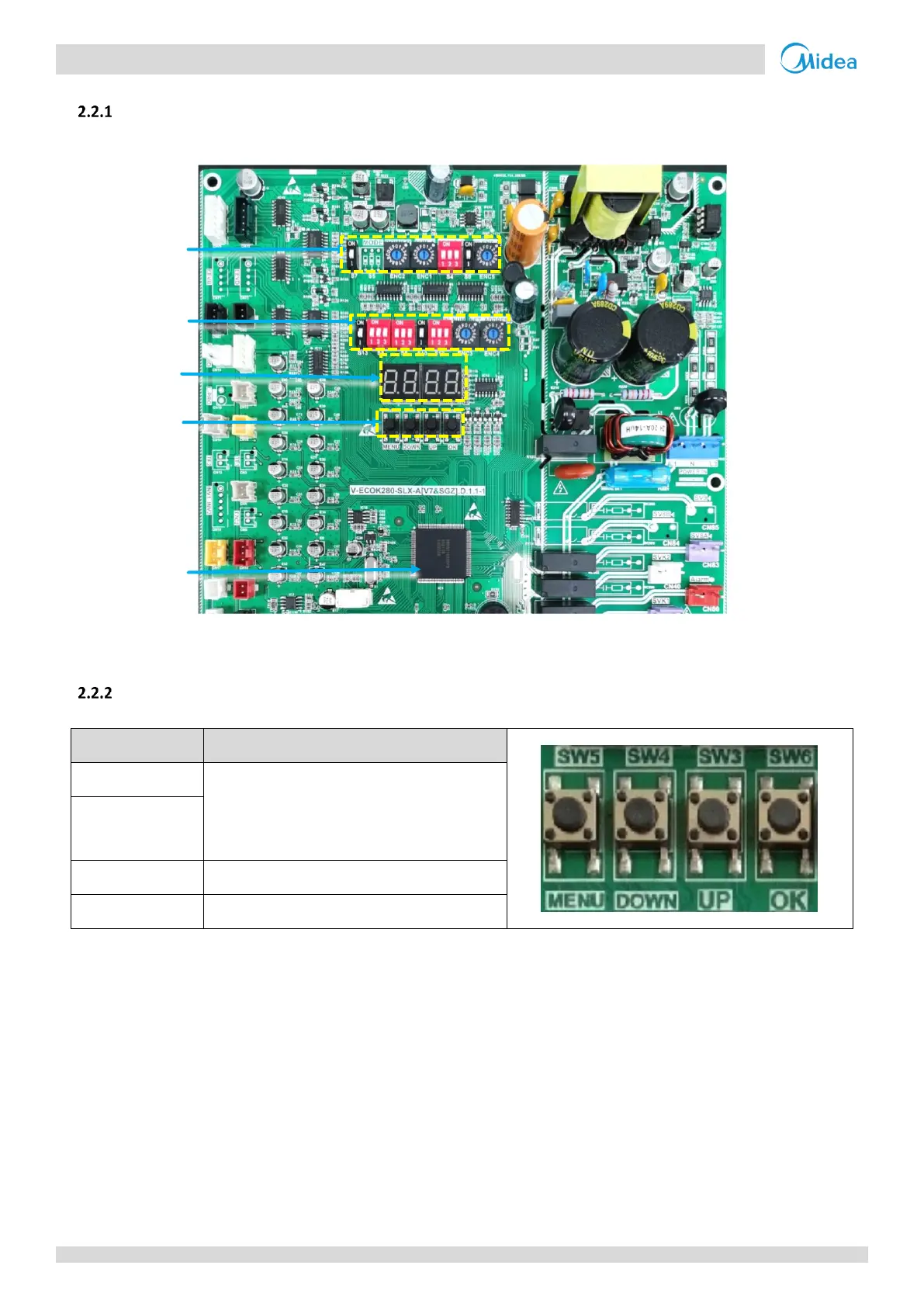

Figure 5-2.2: Outdoor unit main PCB components
Function of buttons SW3 to SW6
Table 5-2.2: Function of buttons SW3 to SW6
Button
Function
SW3 (UP)
In menu mode: previous and next buttons for
menu modes.
Not in menu mode: previous and next buttons for
system check information.
SW4 (DOWN)
SW5 (MENU)
Enter / exit menu mode.
SW6 (OK)
Confirm to enter specified menu mode.
Dial switches
Digital display
Dial switches
Buttons
Main control chip
