1 – Introduction & OverviewToyota/Lexus DCA-8000

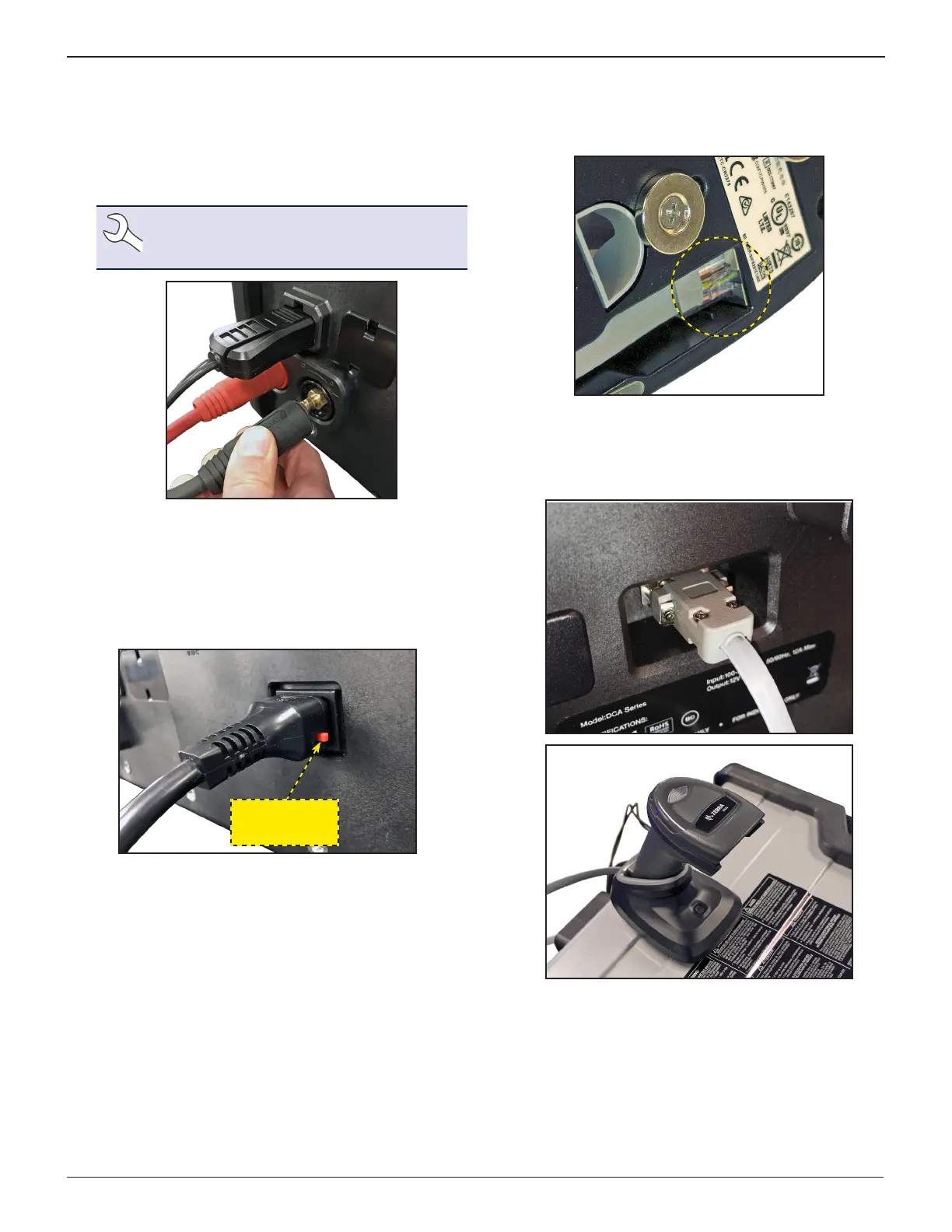

Charging Cables
1. Insert the communication cable.
2. Insert and rotate the charge cable quick connectors clock-
wise 180° to lock them onto the Quick Connector Locking
Post on the charger.
NOTE: Pre twist the charge cables counter
clockwise before installing in order to avoid
putting excess strain on the cables.
3. The connection process is complete when all three cables
are connected to the charger.
Locking Power Cord
Pull back on the red tab on the side of the connector to release/
remove the power cord from the charger’s power socket.
Pull Back To
Release
Wireless Barcode Scanner Cable
1. Insert the RJ50 connector in the bottom of the scanner
base.
2. With a at blade screwdriver, pry o the plastic cover over
the DB9 connection on the back of the charger.
3. Use the screws on the DB9 connector to secure the cable
from the dock to the charger.
