0 – 30 VDC MAXIMUM
6.19V
PRESS
↵↵
↵↵
↵ TO CONTINUE
Use the UP/DOWN ARROW buttons to
scroll to menu choices.
Use the ENTER button to make selections.
The INFO button is active when the test
results are displayed. Press the INFO button
to calculate battery charging time and to
retrieve a test code (if available).
Press and hold the MENUto display the
following options. Use the ARROW buttons
to scroll up or down through the list (3
options displayed per screen) and press
ENTER to select.
1) Print Results
2) View Results
3) QC Mode
4) Voltmeter
5) Export Data
6) Perform Test
7) Utilities
DISPLAY AND KEYPAD
When you first connect the MicroXL Series analyzer to the battery, it will
function as a voltmeter until you press the ENTER button.
The menu-driven display will then guide you step by step through the
test process. Use the keypad buttons to scroll and select menu options.
NOTE: To conserve the internal 9-volt battery, the display
will turn off (Sleep Mode) after 30 continuous seconds of
voltage loss at the clamps.
4
ENGLISH
GB

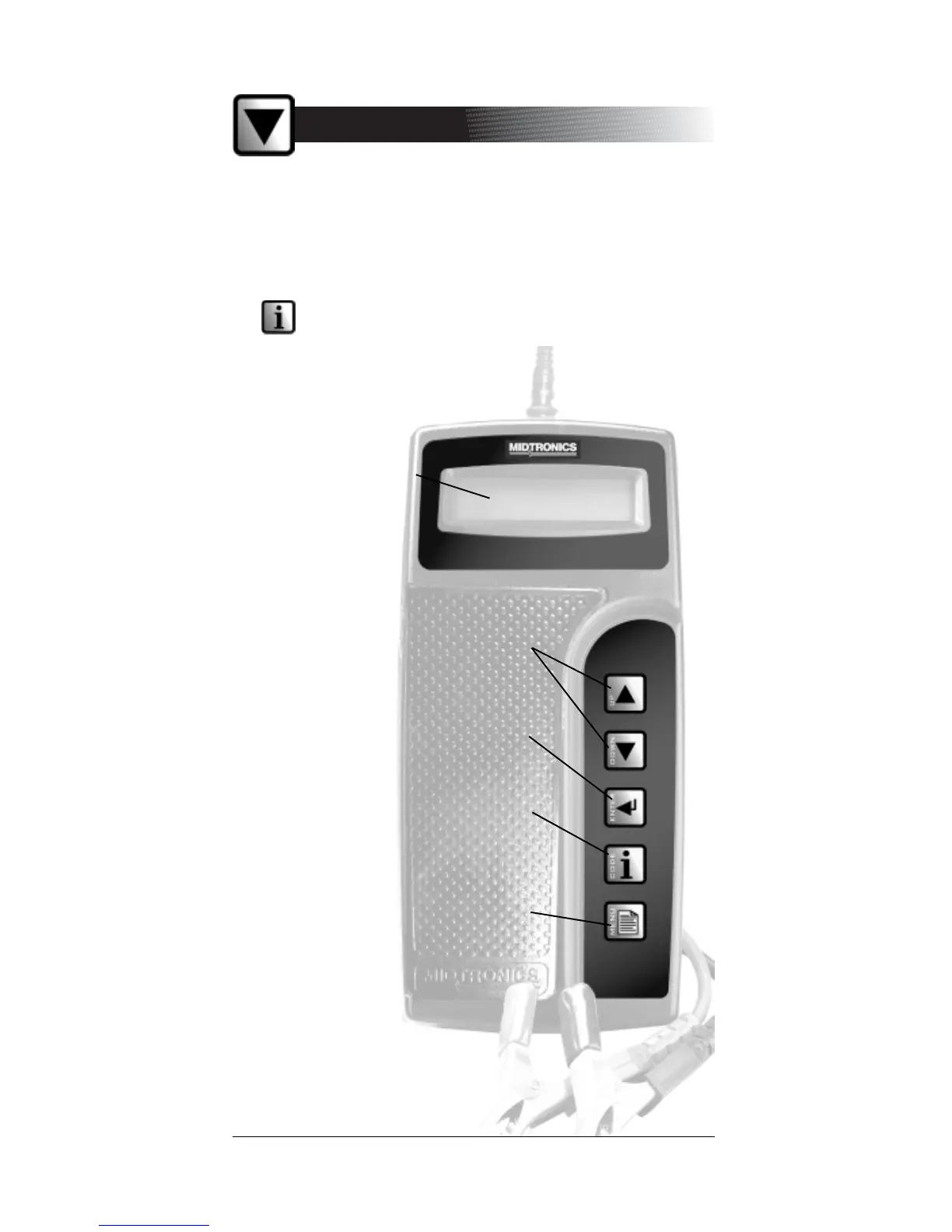

The voltmeter display is
visible when you first
connect the analyzer to
the battery.
