Miele DG 3450 - Appliance Dimensions and Recess Requirements

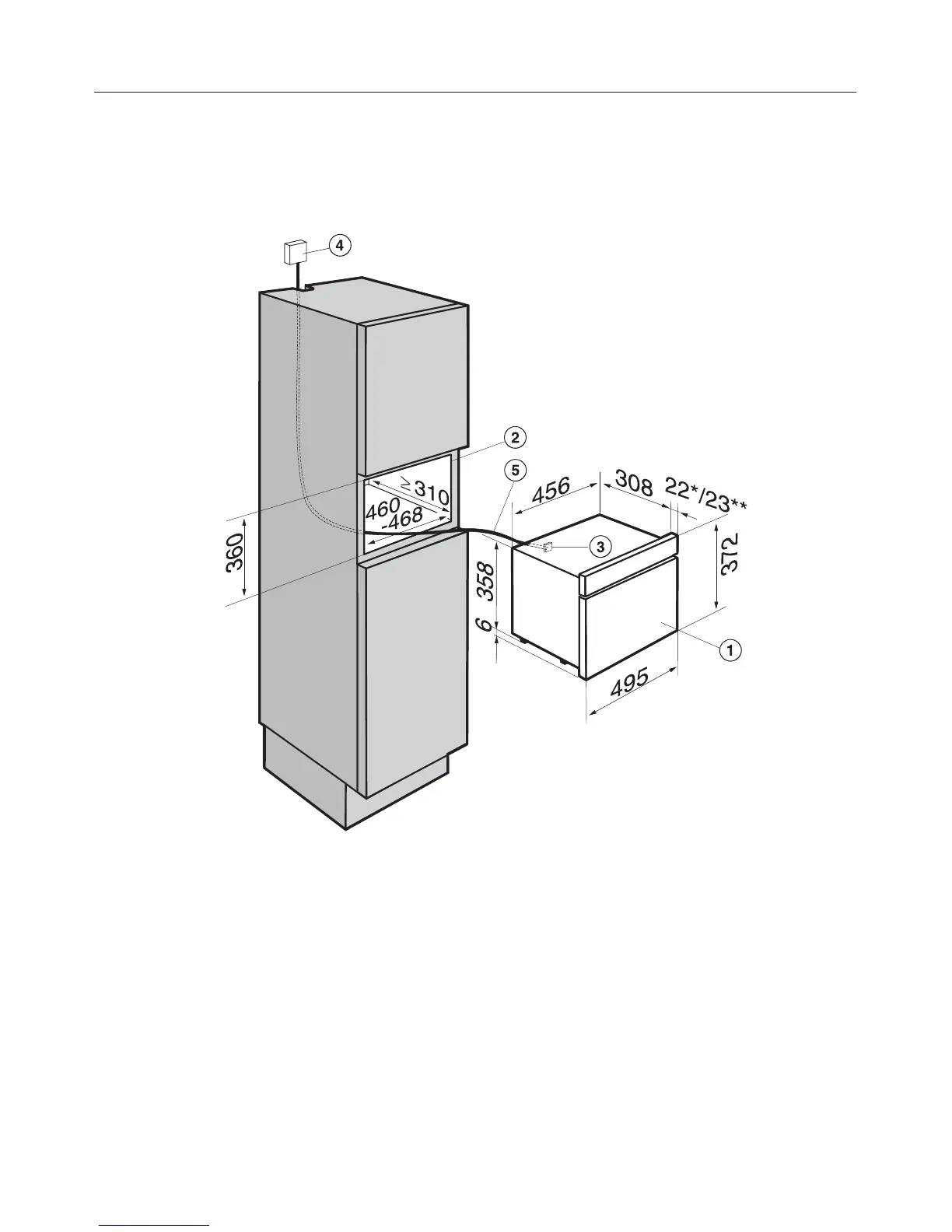

Appliance and building-in dimensions
Installation in a tall unit
a Steam oven
b Building-in recess
c Inlet for mains connection cable to the appliance
d Recommended position for electrical socket.
Important: Do not position behind the appliance!
e Mains connection cable
* Appliances with glass front
** Appliances with metal front
DG 3450
41
