Installing the appliance
^

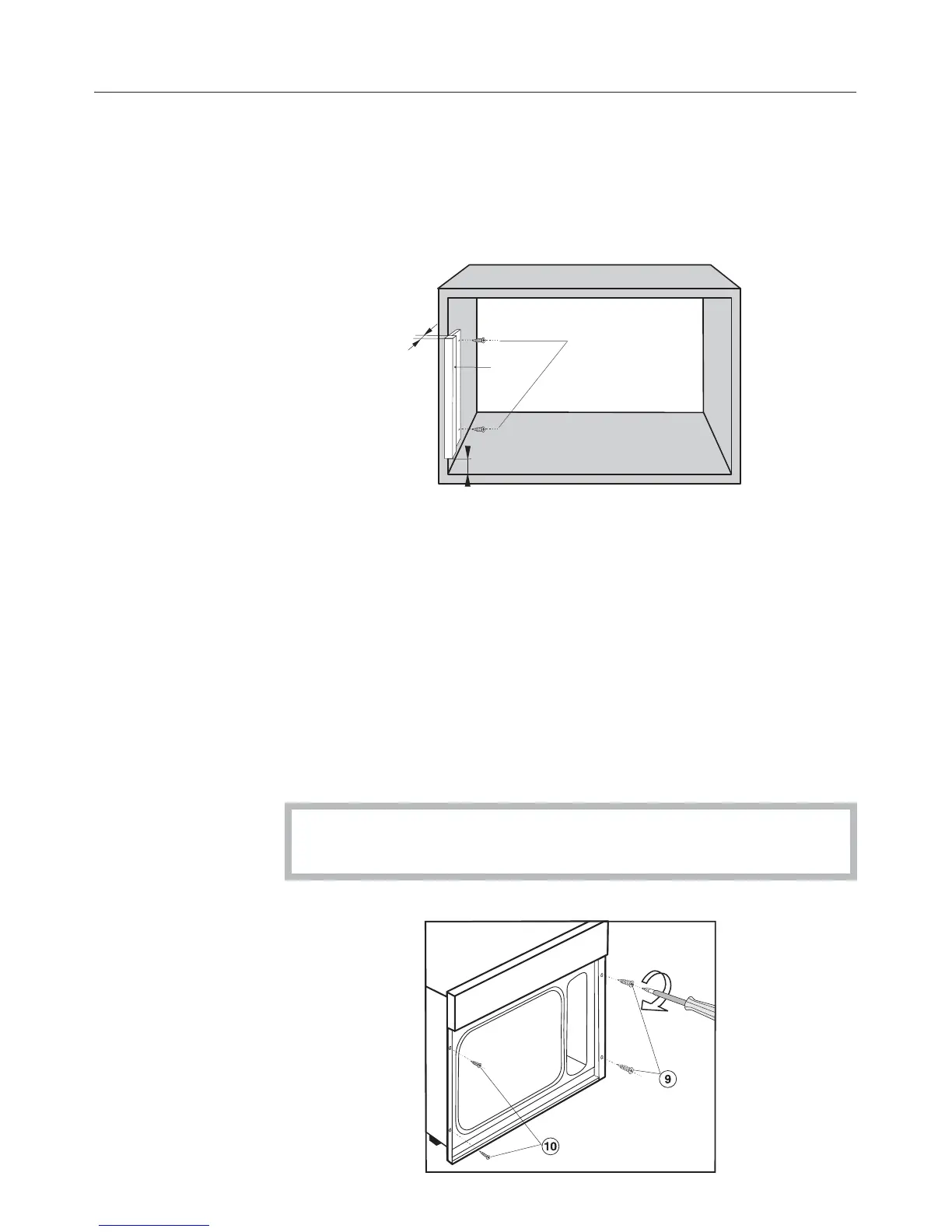

Before installing the appliance secure wood trim h to the
left hand side of the recess using the two3x20mm
screws g supplied.
Dimension x is for niche height:
350mm=30±5mm
360mm=40±5mm
^ Pre-drill the two fixing holes C 2.0 mm in the wood trim on
the left hand side.
^ Push the appliance into the recess and align it.
^ Secure the appliance with the two wood screws i
3.5 x 25 mm on the right hand side and with the two wood
screws j 3.0 x 20 mm on the left hand side.
Do not overtighten the screws as doing so will prevent the
door closing properly.
