Technical Information

DGC 6xxx

Model numbe

DGC 6500/6600 DGC 6700/6800 DGC 6705/6805

Electrical connection (USA)

Voltage 240VAC 240VAC 240VAC

Output 3700W 3700W 3700W

Frequency 60Hz 60Hz 60Hz

Fuse 20A 20A 20A

Controls

SensorTronic MTouch MTouch

Table C-1: Appliance Information

When installing the appliance in a cabinet, make sure that the cabinet and the wall can

support the weight of the appliance.

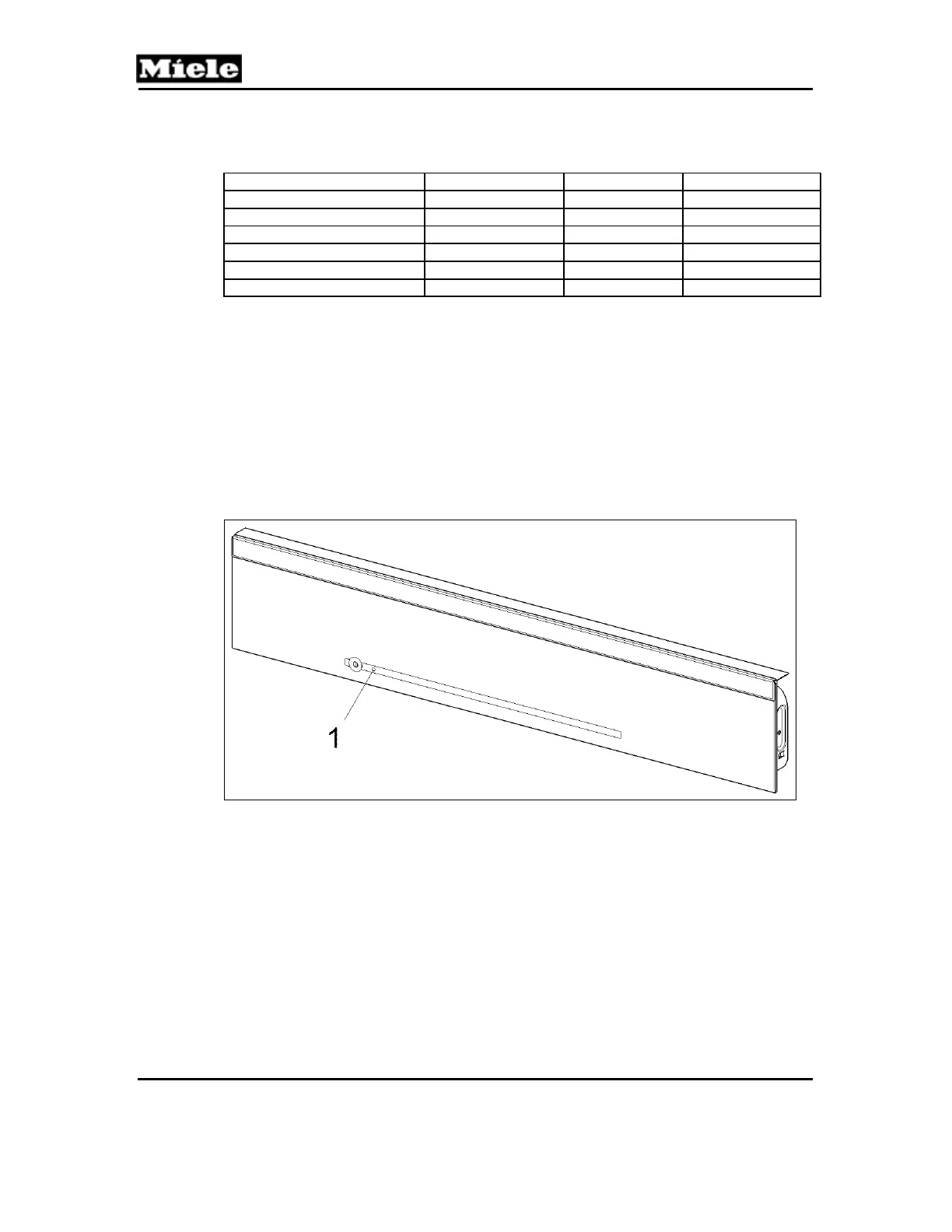

D Layout of Electrical Components

1 Optical Interface

Figure D-1: Optical Interface for Diagnostic Support and Program Updating
