Installation
77

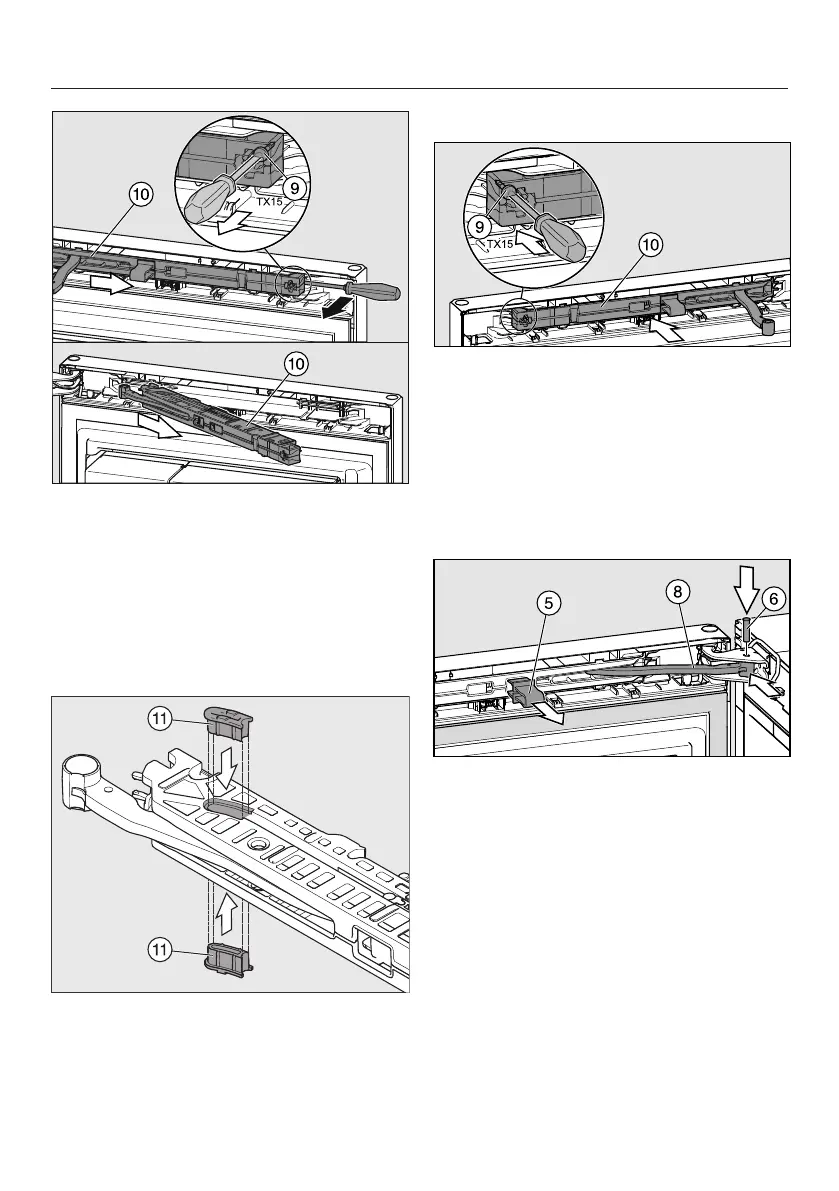

 Undo and remove the screw on
the soft-close mechanism and
insert a screwdriver behind the soft-
close mechanism.
 Remove soft-close mechanism.
–Fitting the door opening angle
limiter
 Press a door opening angle limiter
in from above and below as shown.
–Fitting the soft-close mechanism
 Insert the soft-close mechanism
on the door hinge side (at an angle
initially) so that it clicks into position.
 Then press the other end of the soft-
close mechanism into the opening.
 Secure the soft-close mechanism
with the screw.
 Push the hinged arm into the
opening on the door hinge.
 Insert the pin into the door hinge
from above. Turn this with a
screwdriver (by approx. ¼ turn) until
both lugs on the pin click into
position correctly in the grooves.
 Pull out the red safety device.
Tip: Keep the red safety device in case
you want to change the door hinging
again at a later date.
