Miele FNS 28463 E bb - Limiting the Opening Angle of the Appliance Door; Fitting the Door Opening Angle Limiter

Installation
76
Limiting the opening angle of
the appliance door
The door hinges are set ex works to
enable the door to be opened up to
115°. If the appliance door hits an
adjacent wall when opened, for
example, the opening angle can be
limited toapprox. 90°:
The door opening angle limiter should
be fitted before the refrigeration
appliance is installed.

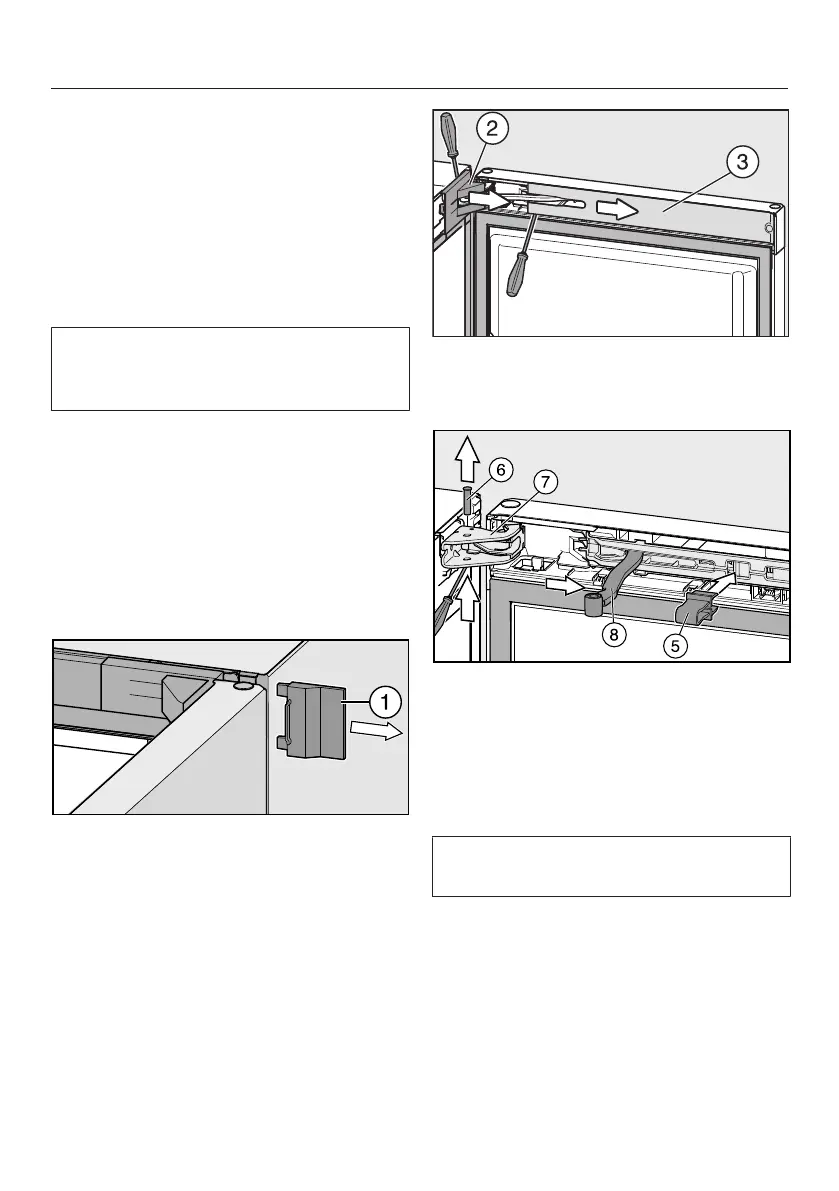

Fitting the door opening angle limiter
 Switch off at the wall and remove the
plug from the socket, or disconnect
the mains fuse.
–Removing the soft-close
mechanism
 Open the appliance door.
 Push off right outer cover.
 Remove cover from the door hinge
and cover from the soft-close
mechanism.
 Click the red safety device
(supplied with the refrigeration
appliance) into place in the opening.
The safety device prevents the soft-
close mechanism and the hinge plate
from snapping shut.
Do not remove the red safety device
until instructed to do so.
 Push the pin out of the door
hinge and remove it.
 Move the hinged arm of the soft-
close mechanism away from the door
hinge.
