If a wooden beam has been fitted
above the appliance to prevent
tipping, the appliance height needs
to be adjusted to fit snuggly under
the wooden beam.
Securing the appliance in the
niche
^

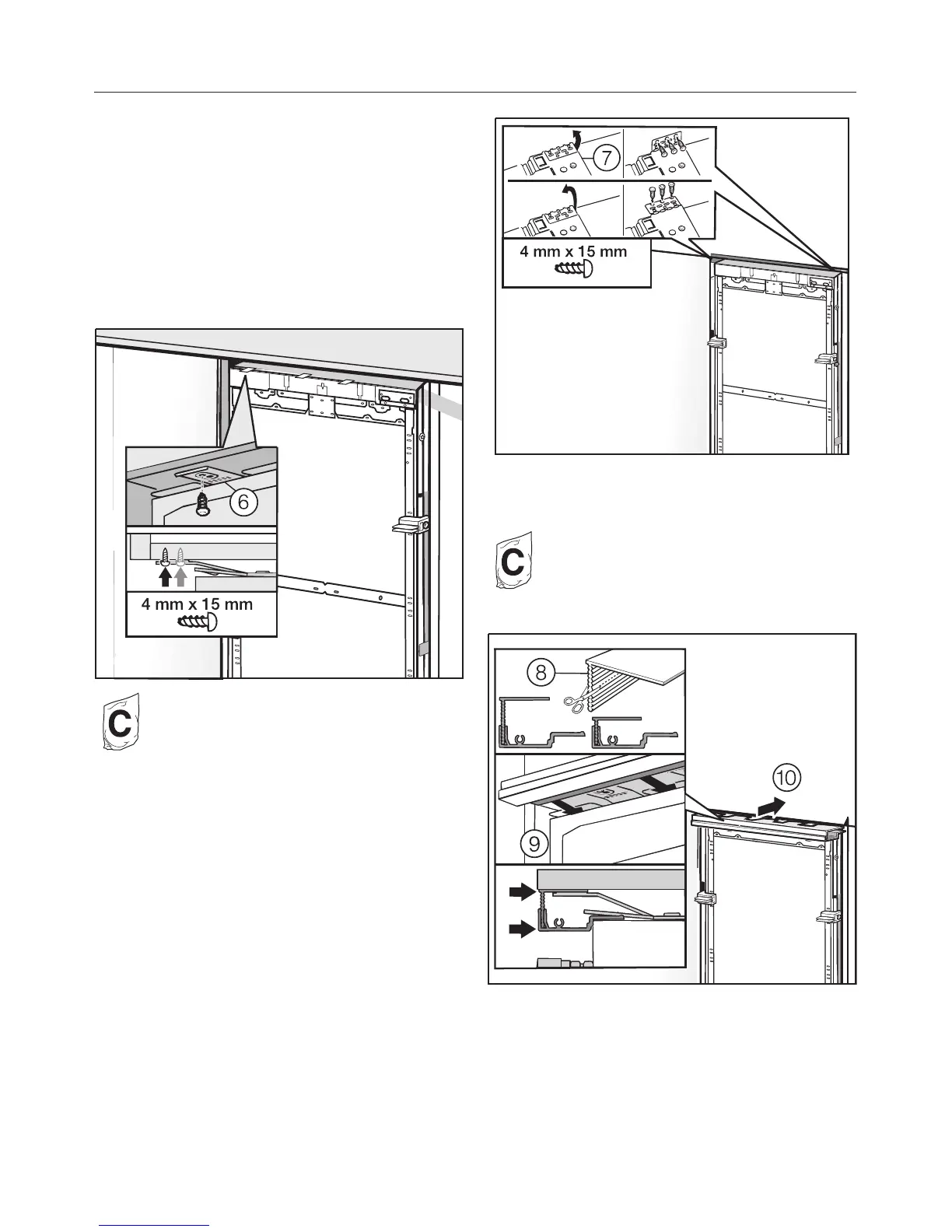

Screw the lugs for the fixing plates f
into the furniture/units above the
appliance.
If it is not possible to secure the
appliance above, it can be attached to
the niche at the sides only.
^ Pull out the lugs for the side fixing
plates g.
^ Screw on the lugs for the side plates.
^
If necessary, cut trim h to the
necessary depth.
^
Join the two pieces of trim together
i.
^
Click them into position j.
Installation
78
