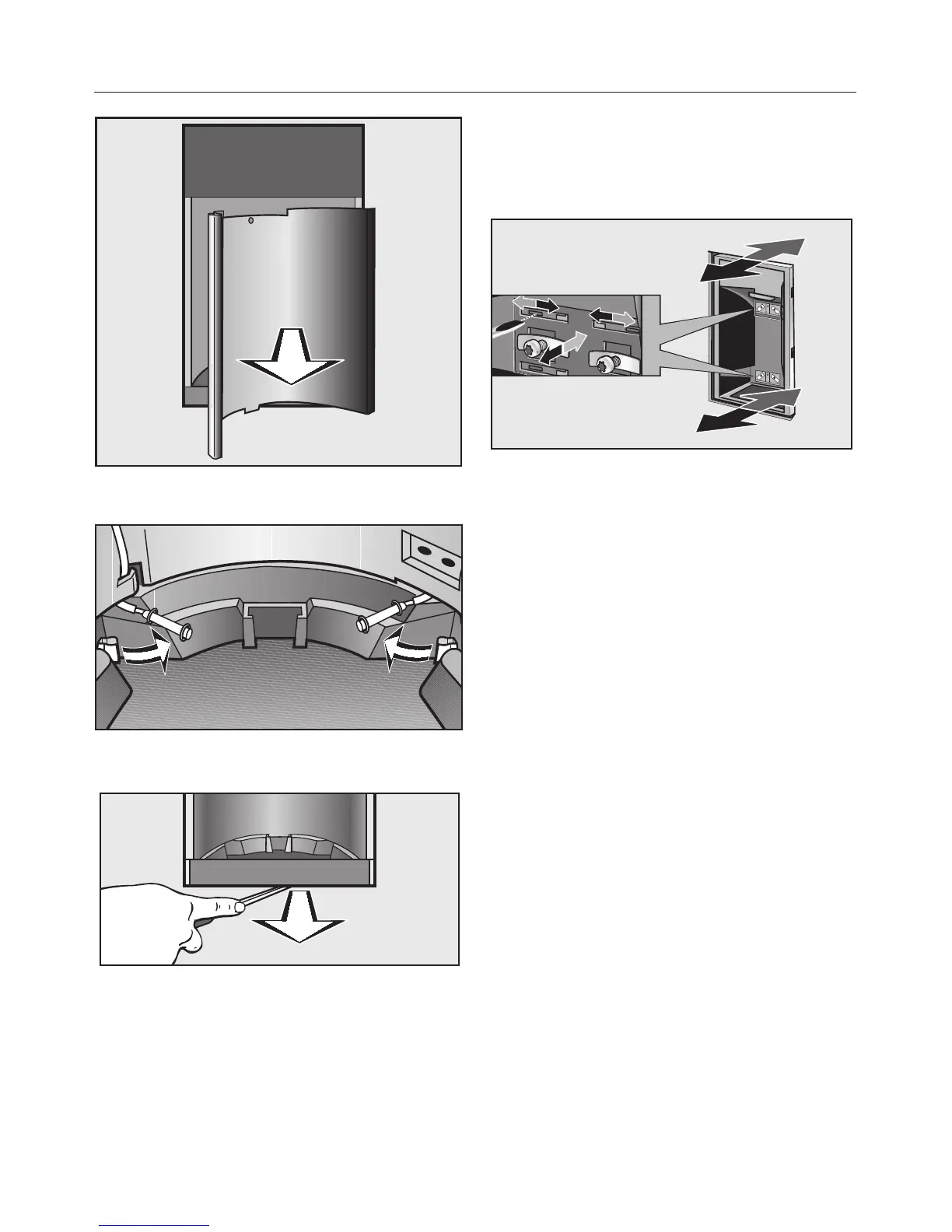

^ Remove the rear cover.
^
Loosen the level sensors and
carefully bend them upwards.
^
Remove the drip tray. If necessary
use a screwdriver to gently lever it
out.
Once the drip tray has been removed
you can align the position of the ice/
water dispenser using the four metal
strips.
^ Loosen the screws in the four metal
strips.
^ Then insert a screwdriver into one of
the four slits and push the ice/water
dispenser sideways until it is
correctly aligned with the furniture
front. The grey arrow indicates
alignment to the rear and the black
arrow shows the alignment to the
front.
^
Tighten the screws in the four metal
strips.
^
Replace the drip tray and clip the
level sensors back into position.
^
Refit the rear cover and the locking
device and then screw the rear cover
back on.
^
Replace the grille and the drip tray
cover.
^
Replace the dispenser spout.
Installation
