Technical Information
21
G 5xxx
2 Appliance
Overviews
2.1
Integrated Models

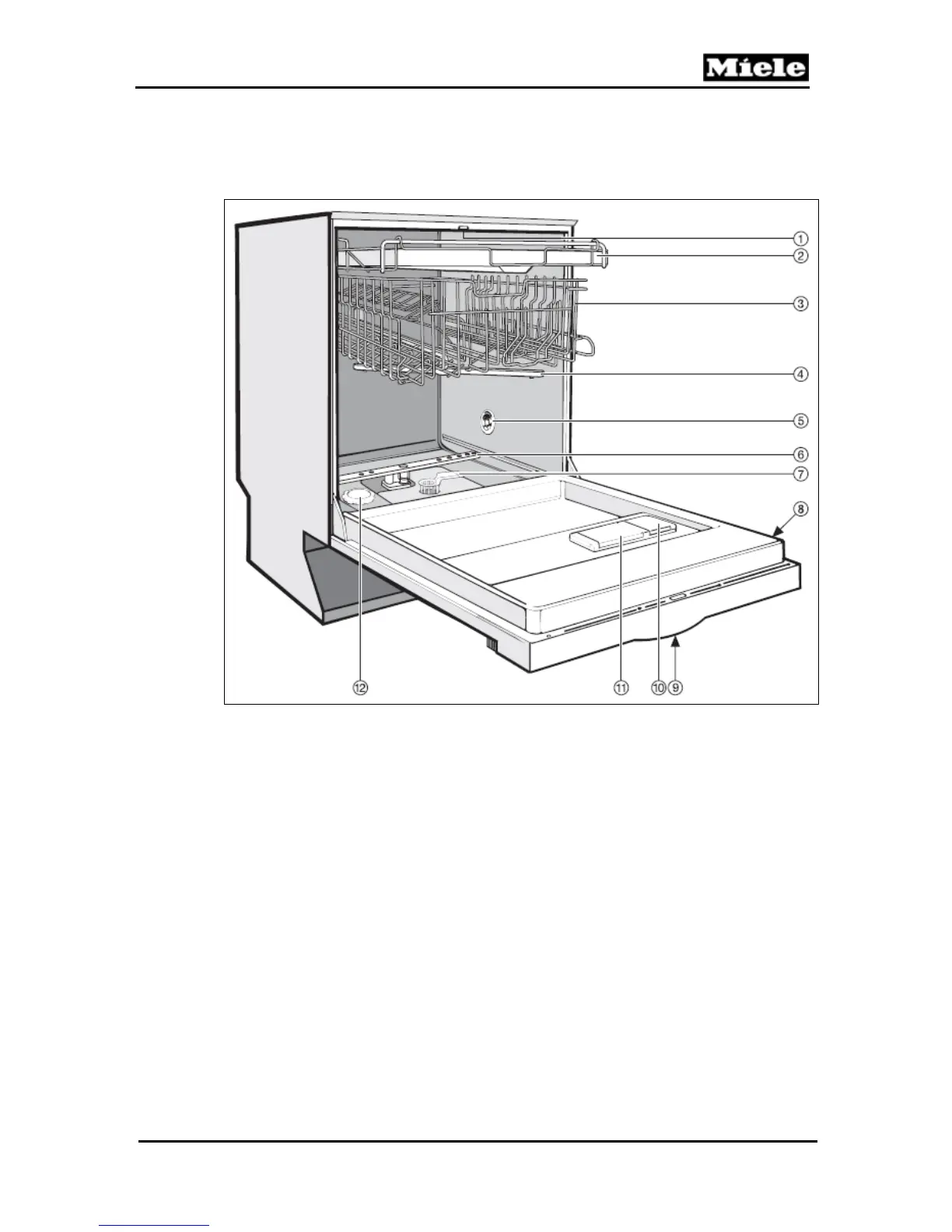

Figure D-4:
Integrated Model
1
Upper spray arm (not visible)
7
Filter combination
2
Cutlery tray (model-de
pendent)
8
Data tag
3
Upper basket
9
Child safety lock in door ha
ndle (model-dependent)
4
Middle spray arm
10
Rinse aid reservoir
5
Air inlet for drying (model-depen
dent)
11
Dual-compartment detergent dispenser
6
Lower spray arm
12
Salt container
20
22
