Technical Information
30
G 5xxx
3.8 G 5915 (Diamond with Navitronic)

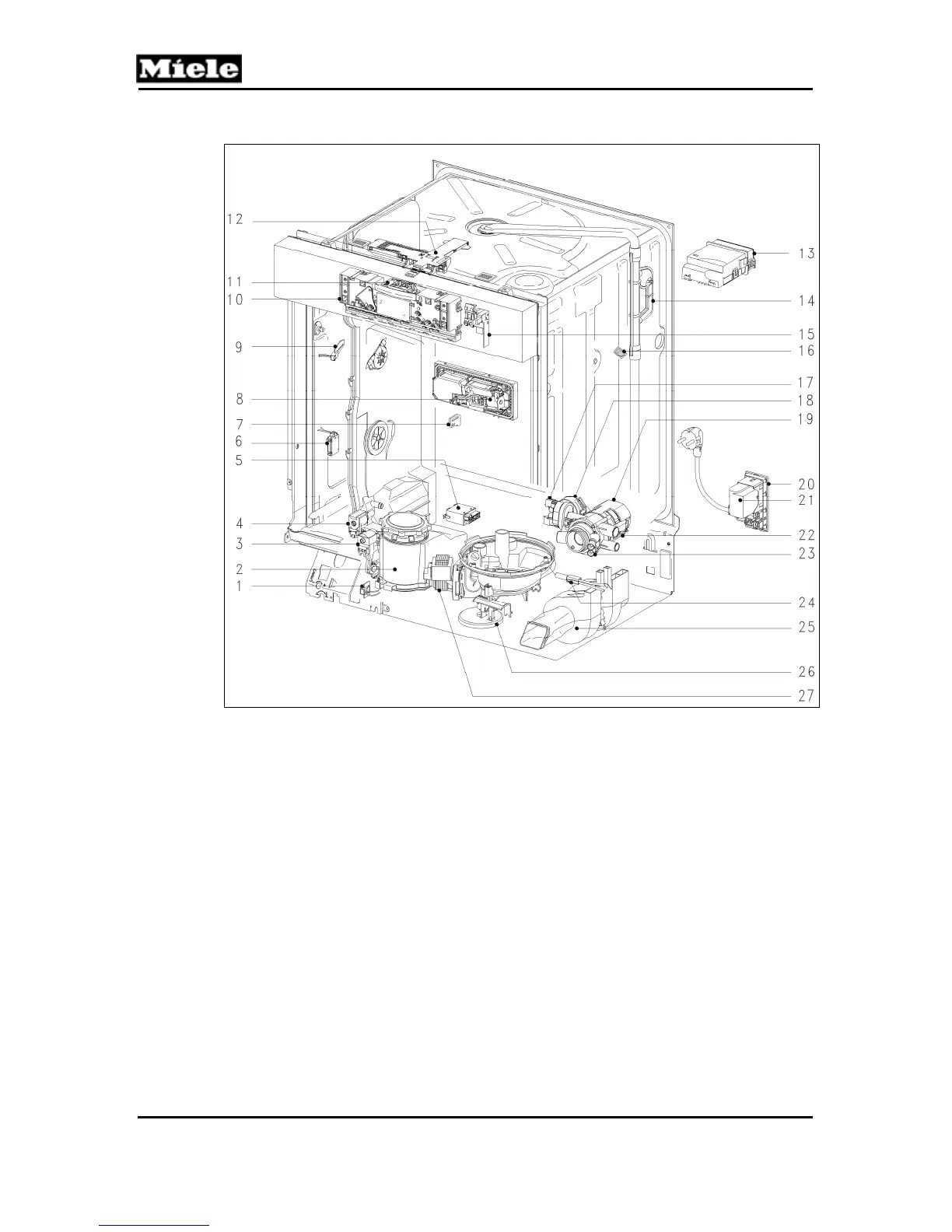

Figure D-13: G 5915 Component Layout
1
Salt float switch, B8/2
16
BrilliantLight module
2
Salt container
17
Heater pressure switch, B1/13
3
Reactivation solenoid, Y38
18
Slide shutter, M24 and B3/12
4
Wash-water hardness solenoid, Y5
19
MPPW freq. conv. electronic
5
Heater relay, K1/1
20
Terminal block, X3/1
6
Spray arm sensing, B3-20
21
Interference suppression, Z1
7
Rinse aid float switch, B8/1
22
Circulation pump (MPPW), M6
8
Combination dispenser solenoid, Y50
23
Heater, R1
9
Flow meter, B3/4
24
Temperature sensor (NTC), R30
10
Electronic, 1N1 and 2N1
25
Fan, M2
11
Door contact switch, S24
26
Overflow float switch, B8/3
12
Automatic door opener, A2
27
Drain pump, M8
13
RemoteVision, 3N1
Not shown
Inlet valve, Y63
(in base of appliance)
14
Turbidity sensor, B3/10
15
Main switch, S2
