G 5xxx
3 Component Layouts
3.1 G 4205, G 45x0 (Classic, Slimline Dimension with Touchtronic,
without Display)

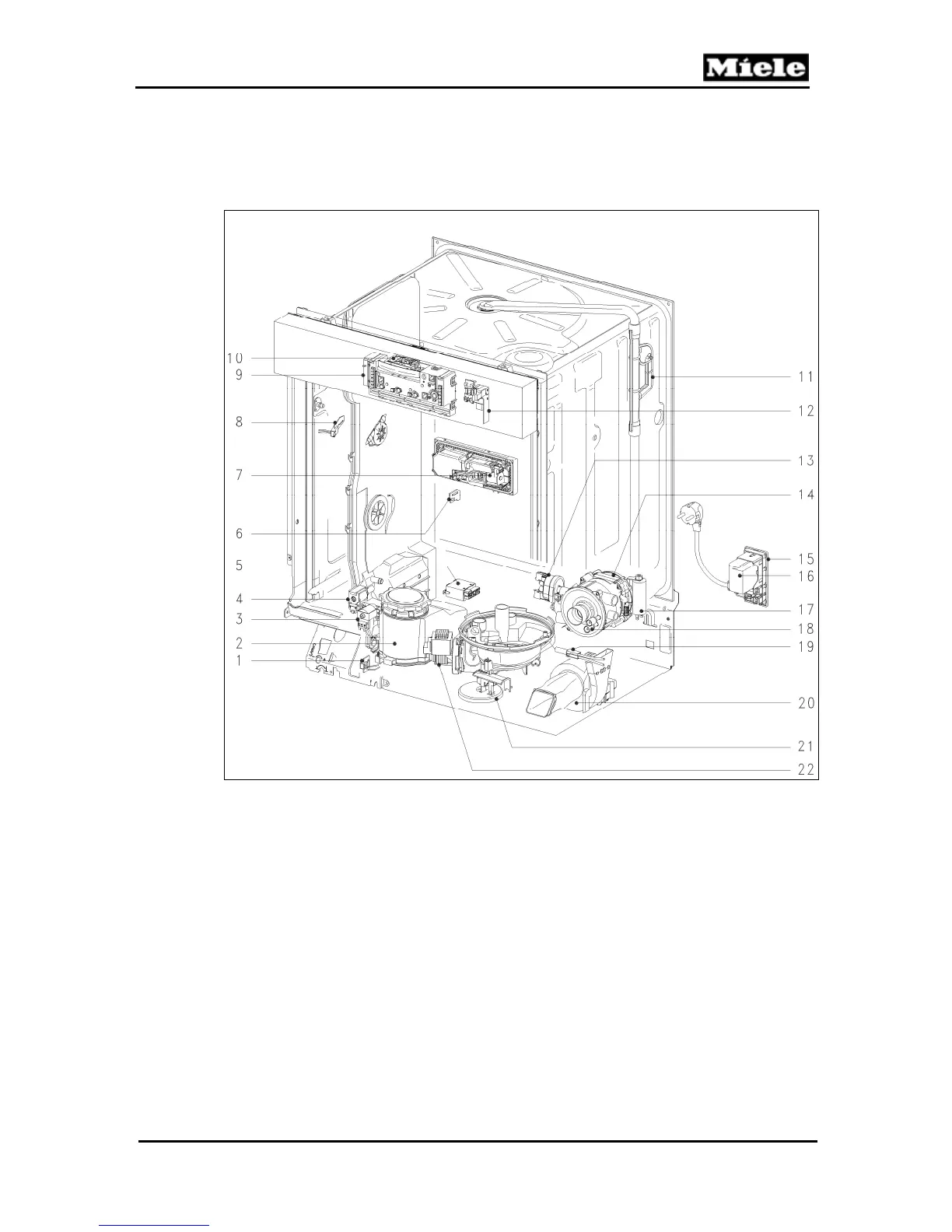

Figure D-6: G 4205/G 45x0 Component Layout
1
Salt float switch, B8/2
13
Heater pressure switch, B1/13
2
Salt container
14
Circulation pump (MPEH), M6
3
Reactivation solenoid, Y38
15
Terminal block, X3/1
4
Wash-water hardness solenoid, Y5
16
Interference suppression, Z1 or Z2
5
Heater relay, K1/1
17
Circulation pump capacitor, C6
6
Rinse aid float switch, B8/1
18
Heater, R1
7
Combination dispenser solenoid, Y50
19
Temperature sensor (NTC), R30
8
Flow rate sensor, B3/4
20
Fan, M2
9
Electronic, 1N1
21
Overflow float switch, B8/3
10
Door contact switch, S24
22
Drain pump, M8
11
Turbidity sensor, B3/10
Not shown
Inlet valve, Y63
(in base of appliance)
12
Main switch, S2
