Figure 040-6: Fan/Condenser Removal
4.6 Connection Box Removal (Select Models)
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
3. The connection box is located on the rear panel, in the bottom left-hand
corner.
4. Remove the retaining screws; see Figure 040-7, Item 1.
5. Insert a suitable screwdriver under the connection box and release it; see
Figure 040-7, Item 2.
6. Slide the connection box downward and remove it; see Figure 040-7, Item 3.

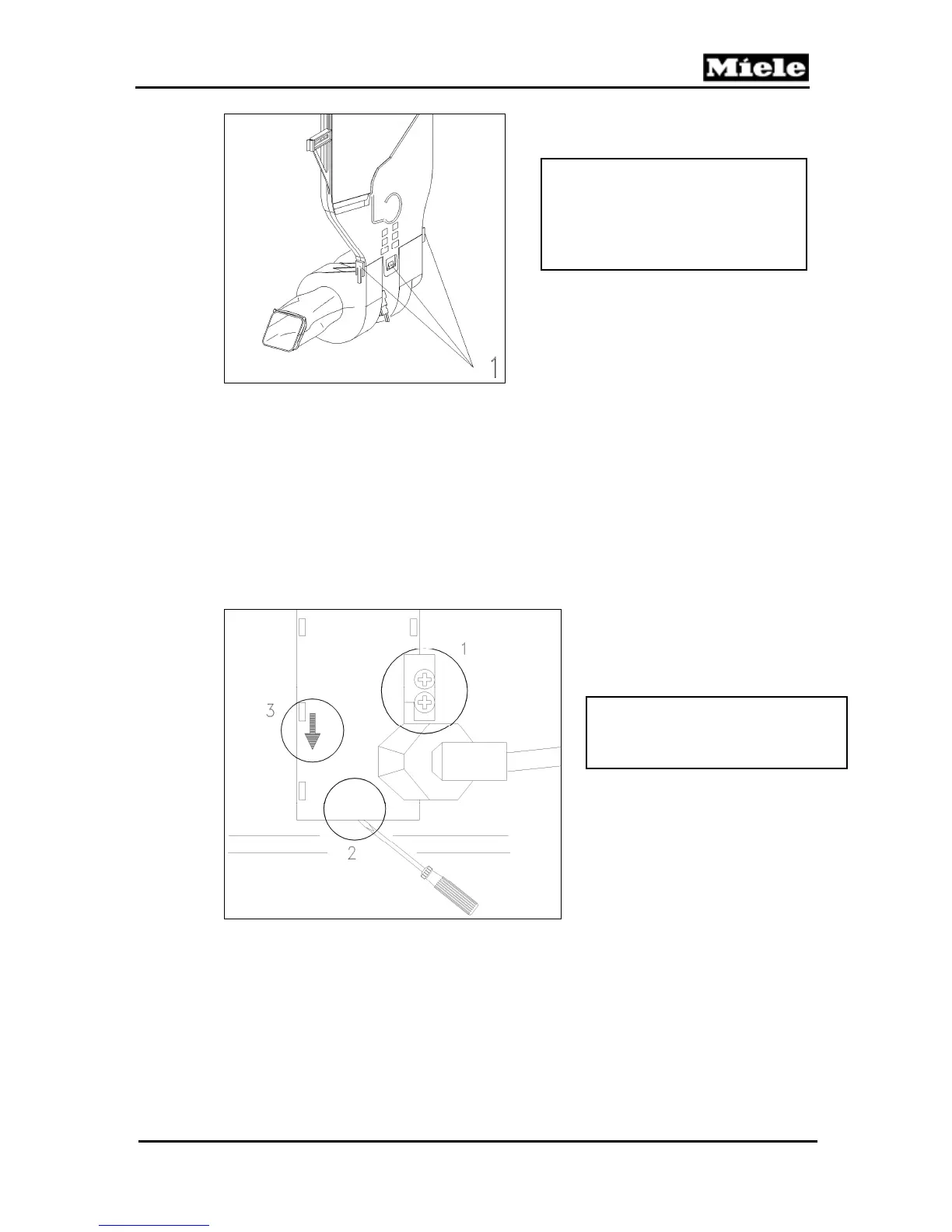

Figure 040-7: Connection Box
Note:
When re-installing, ensure
that the retainers between the
condenser and fan engage
properly.
Note:
Position of the power cord
may vary by model.
