Installation diagrams
76

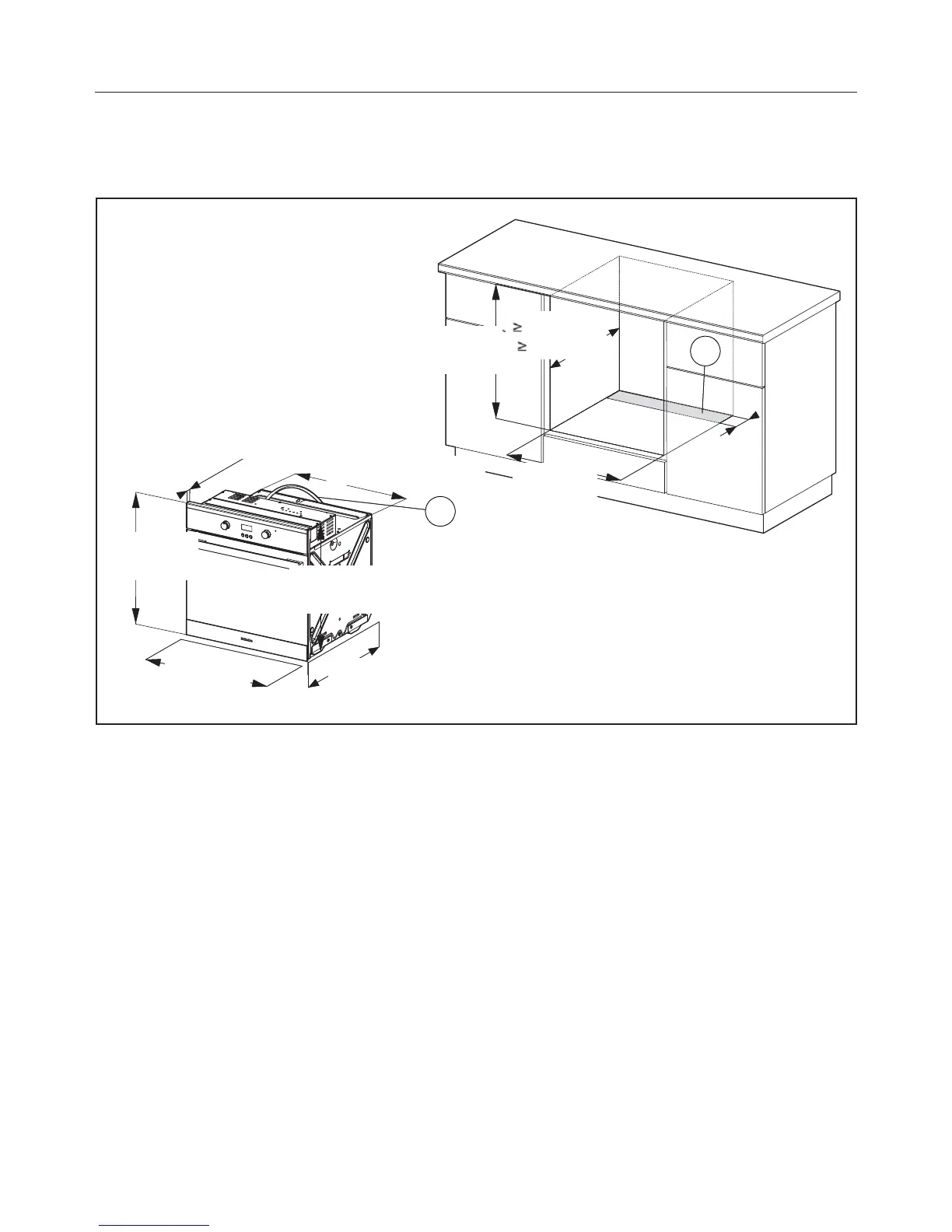

Appliance and cut-out dimensions
Undercounter installation
A
B
A
B
7/8" (23 mm)
21 9/16" (547 mm)
22 1/2"
(572 mm)
21 7/16" (544 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
22 1/16"
(560 mm)
4"
(100 mm)
23 5/8"
(600 mm)
21 5/8"
( 550 mm)
Ǟ
Cut-out for power cord with plug (min. 4" x 22" / 100 mm x 560 mm) in the
bottom of the cabinet
ǟ
Power cord with plug
