Installation
*INSTALLATION*
71

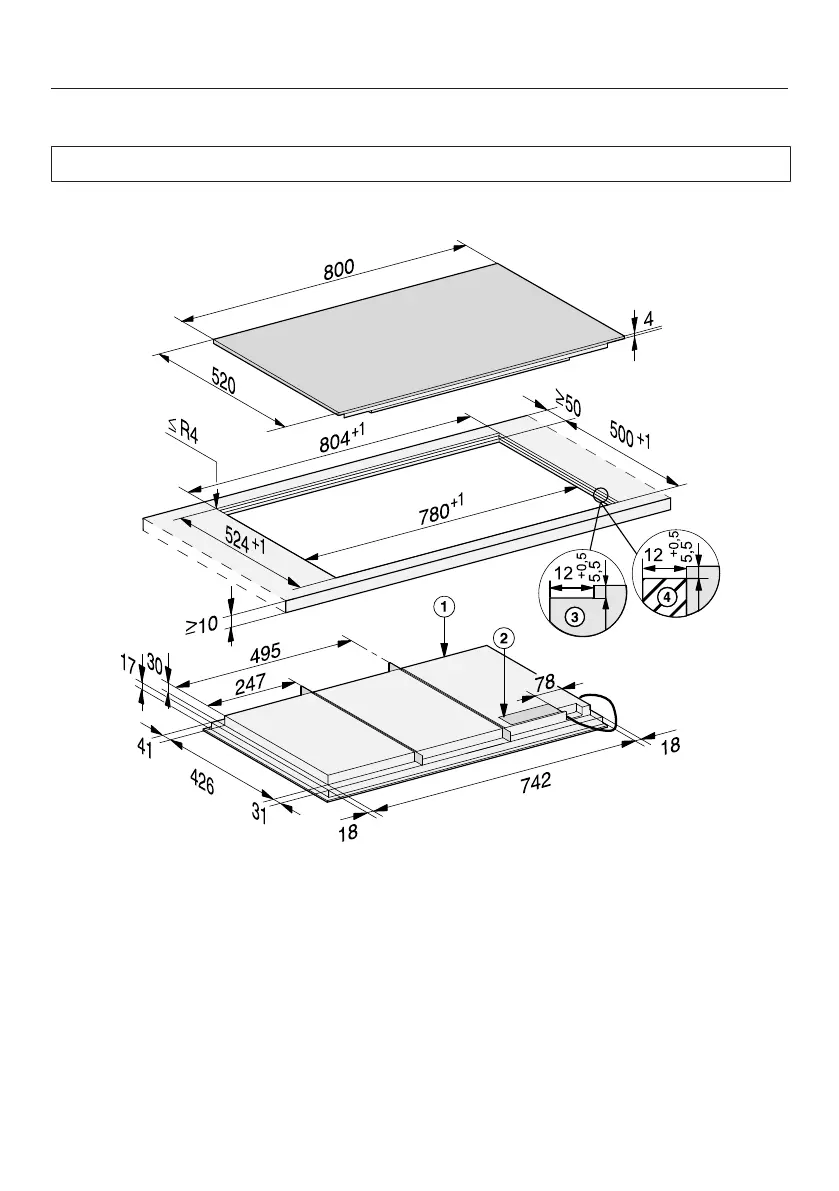

Installation dimensions–Flush-fit
All dimensions are given in mm.
KM7678FL,KM7878FL
a
Front
b
Mains connection box
The mains connection cable (L=1440mm) is supplied loose
c
Stepped cut-out, natural stone worktop
d
Wooden batten 12mm (not supplied)
