Miele KM 7697 FL - Km 7697 Fl, Km 7897 Fl

Installation
*INSTALLATION*
72

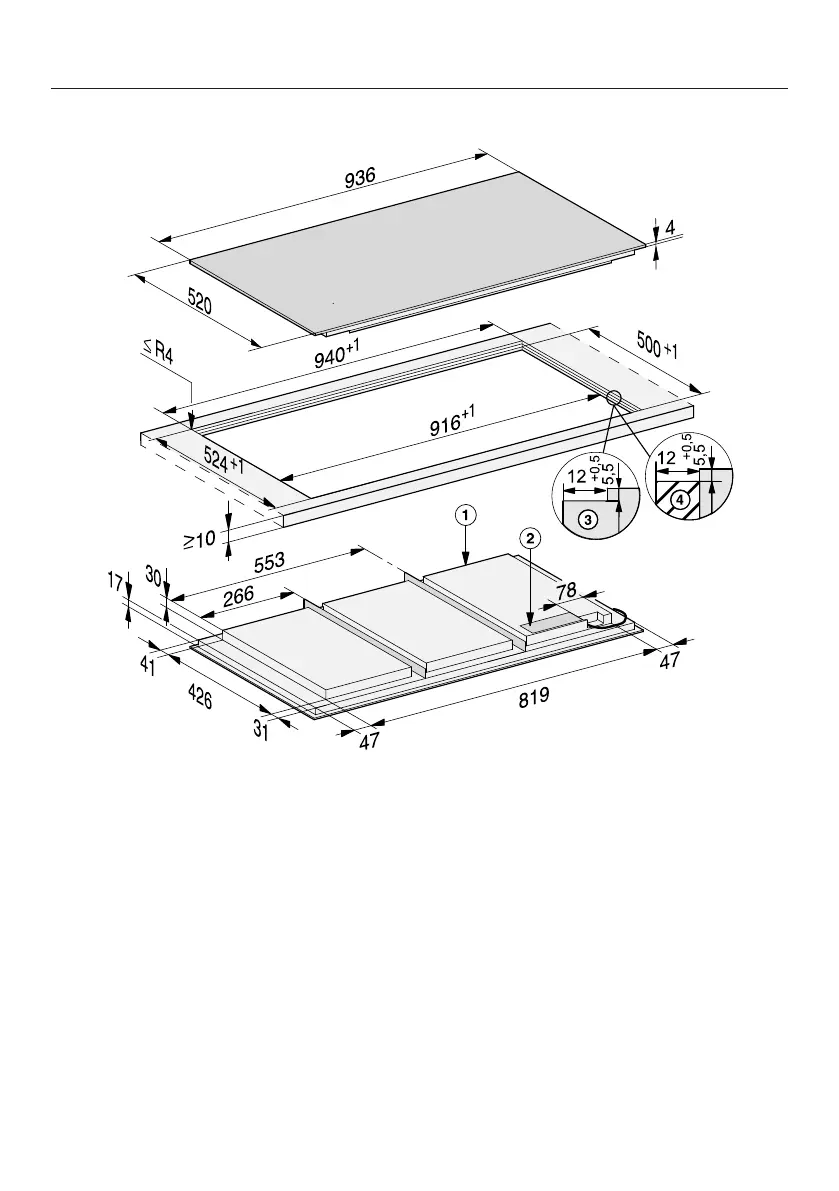

KM7697FL,KM7897FL
a
Front
b
Mains connection box
The mains connection cable (L=1440mm) is supplied loose
c
Stepped cut-out, natural stone worktop
d
Wooden batten 12mm (not supplied)
