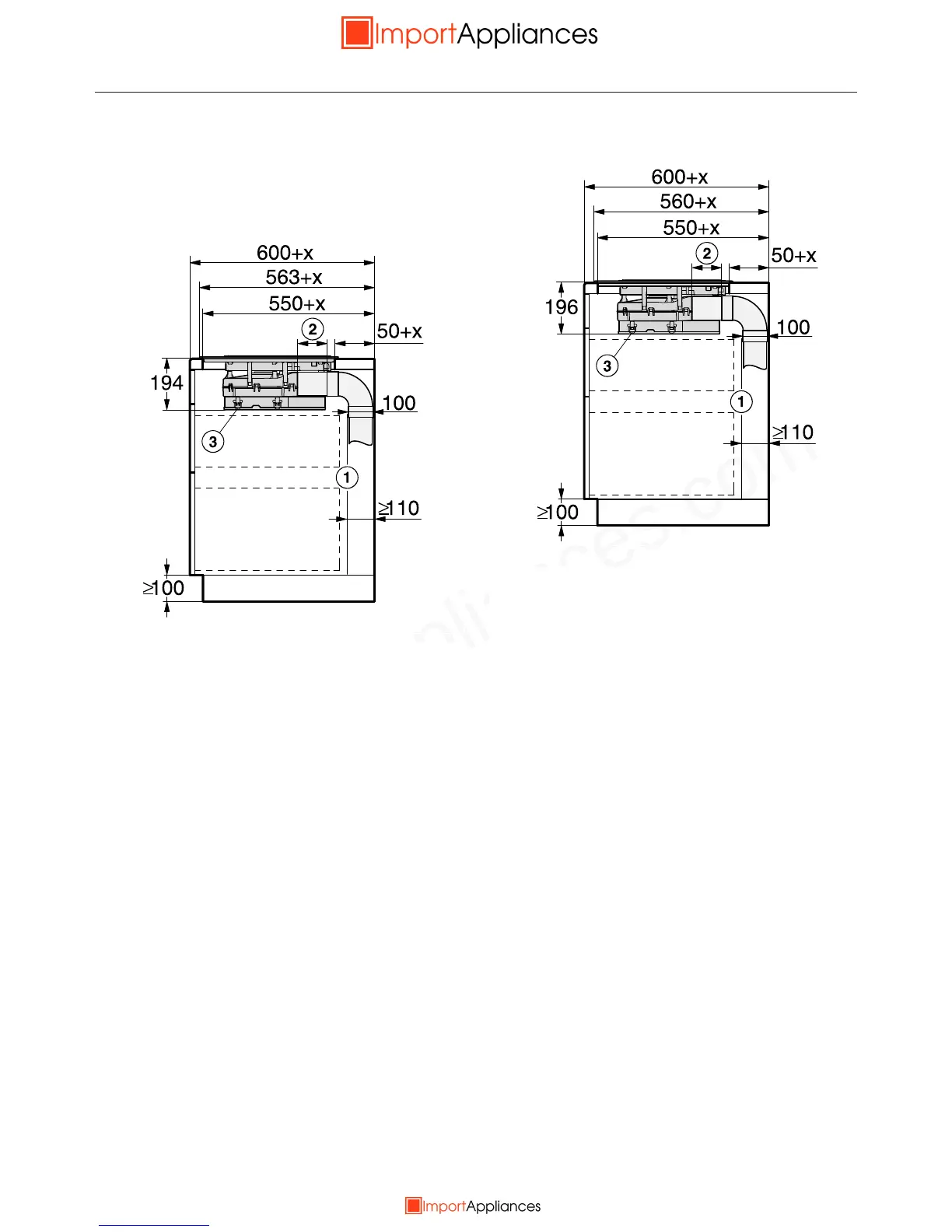

Building-in dimensions - Onset hobs
70
Worktop depth greater than
600mm
KMDA 7774 FR
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or a piece of furniture
must be at least 110 mm apart to
ensure sufficient room for the duct-
ing.
b
Variable length of interim piece
c
Drip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600 mm.
KMDA 7774 FL
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or a piece of furniture
must be at least 110 mm apart to
ensure sufficient room for the duct-
ing.
b
Variable length of interim piece
c
Drip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600 mm.
