Installation
79
Connection to window contact,
if required
The window contact is connec-
ted to the mains voltage!
Danger of electric shock!
Disconnect the hob from the mains
electricity supply before connecting
the switching mechanism.
The connection cable of the switch-
ing system must only be connected
by a suitably qualified and compet-
ent person.
The connection cable of the switch-
ing system must comply with type
H03VV-F 2x0.75mm
2
and must not
exceed 2.0m in length.
The switching system must be
equipped with a potential-free con-
tact suitable for 230V, 1A. The ex-
tractor is switched off when the
switch is open.
Only use DIPT-approved and tested
radio switching systems (e.g. window
contact switches, pressure switches)
and have them approved by author-
ised specialists (e.g. building regula-
tions inspector).
The switching system must be suit-
able for use with a BLDC motor.
You will need the appropriate ex-
ternal switching system documents
to safely connect and operate the
switch.

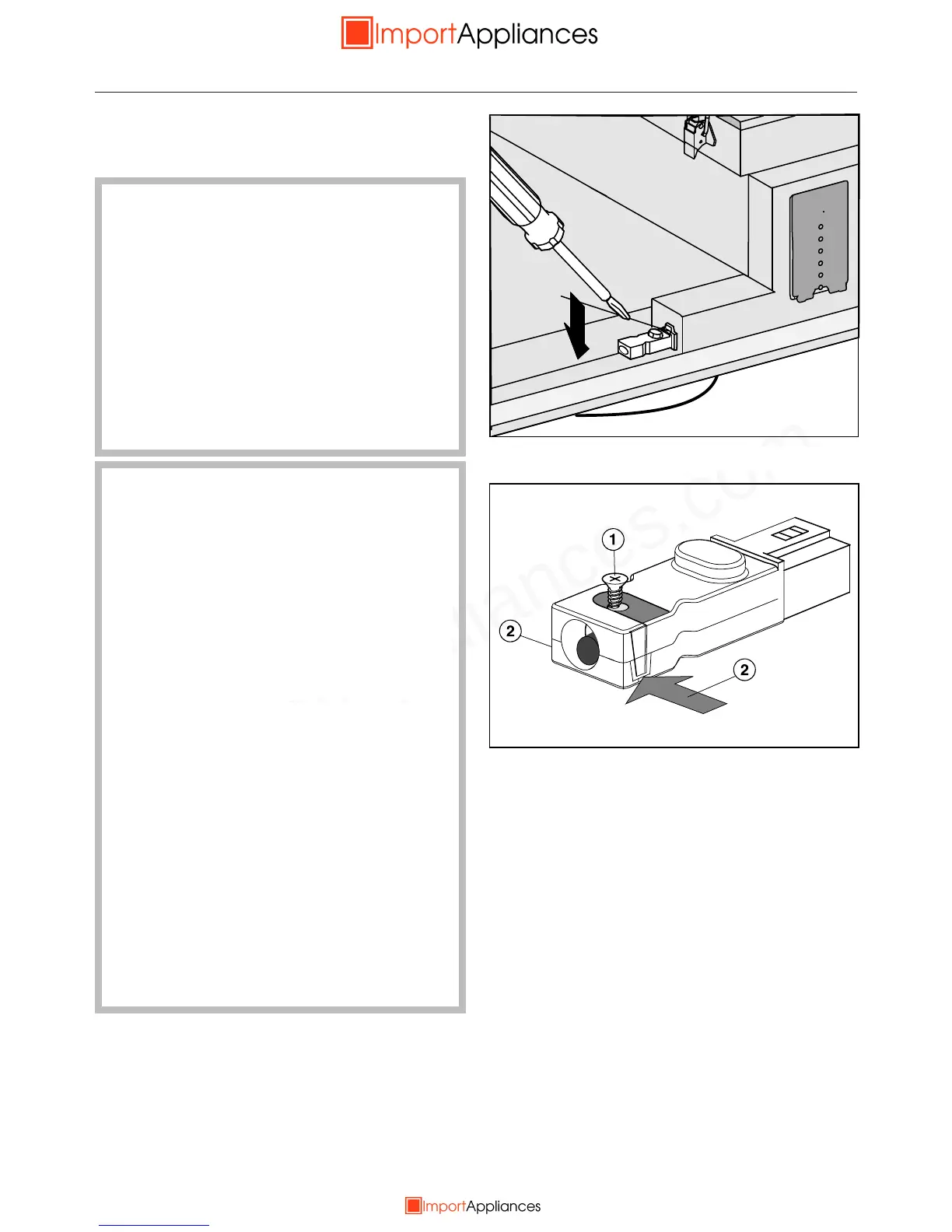

Loosen the lug and pull the plug out.
Loosen the strain relief screw and
unlock the casing on both sides.
Open the casing.
Remove the stopper.
