Change extraction direction
78

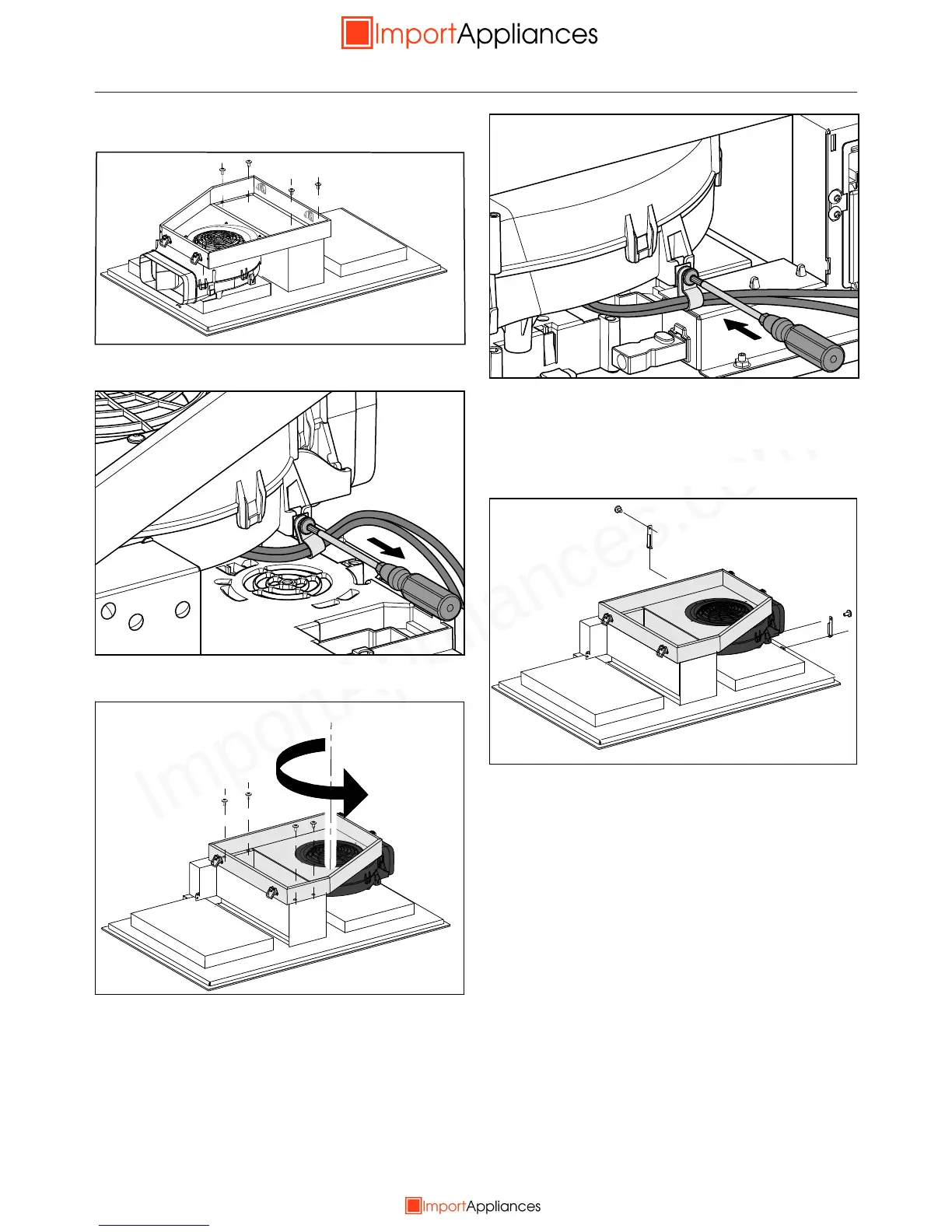

Extraction to the left
Undo the 4 screws on the frame.
Loosen the cable tie.
Lift the frame and the fan and turn it
180°.
Guide the cable under the fan.
Reattach the cable tie.
Refit the 4 screws in the frame.
Secure the fan to the fixing brackets.
Place the cooker hood onto the drip
tray again and secure the tray using
the 4 catches.
