Miele PWM 514 - Description of the Machine; Models with Detergent Drawer (WEK)

en - Description of the machine
165

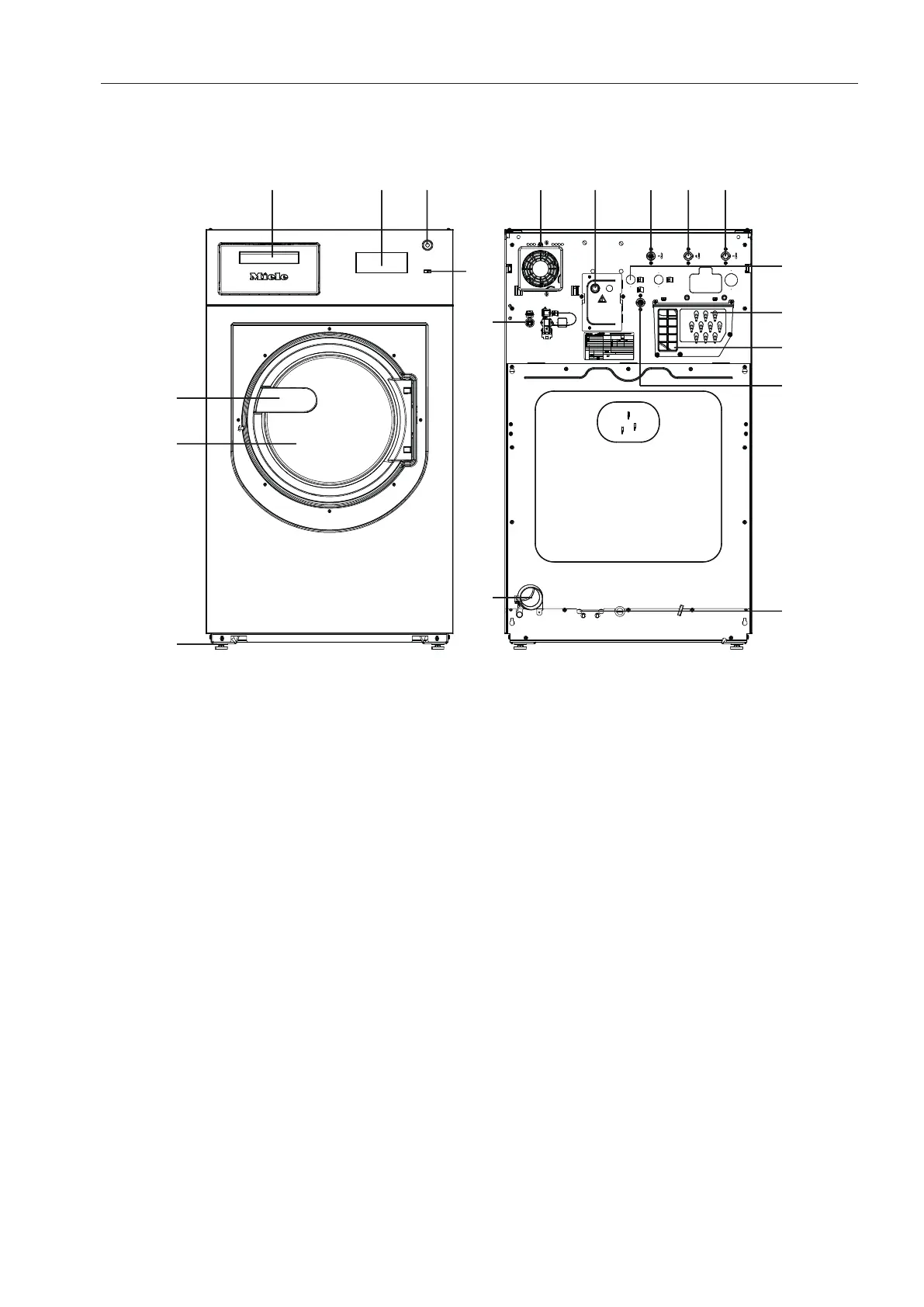

Models with detergent drawer (WEK)
⑪
⑥ ⑦ ⑧ ⑨
⑩
⑫
① ②
③
④
⑤
⑧
⑬
⑮
⑭
⑯
⑰
⑱
a
Display
see “Control panel”
b
Emergency off switch
see “Control panel”
c
Door handle
d
Drum door
e
Four adjustable feet
f
Detergent drawer
g
Electrical connection
h
Cold water connection
i
Hot water connection
j
2xhard water connection
(optional)
k
Connections for external dispenser
pumps
l
Vapour extraction/free outlet TypeAB
m
Drainage
n
Cold water connection for liquid dis-
pensing
(optional)
o
Fan casing
p
Connection option for direct/indirect
steam
(depending on model)
q
l button
r
Interface for communicating with ex-
ternal machines
