Miele PWM 514 - Dispensing Agent Connection to the Liquid Dispensing Mixing Compartment

en - Installation
184
Dispensing agent connection to the liquid dispensing
mixing compartment

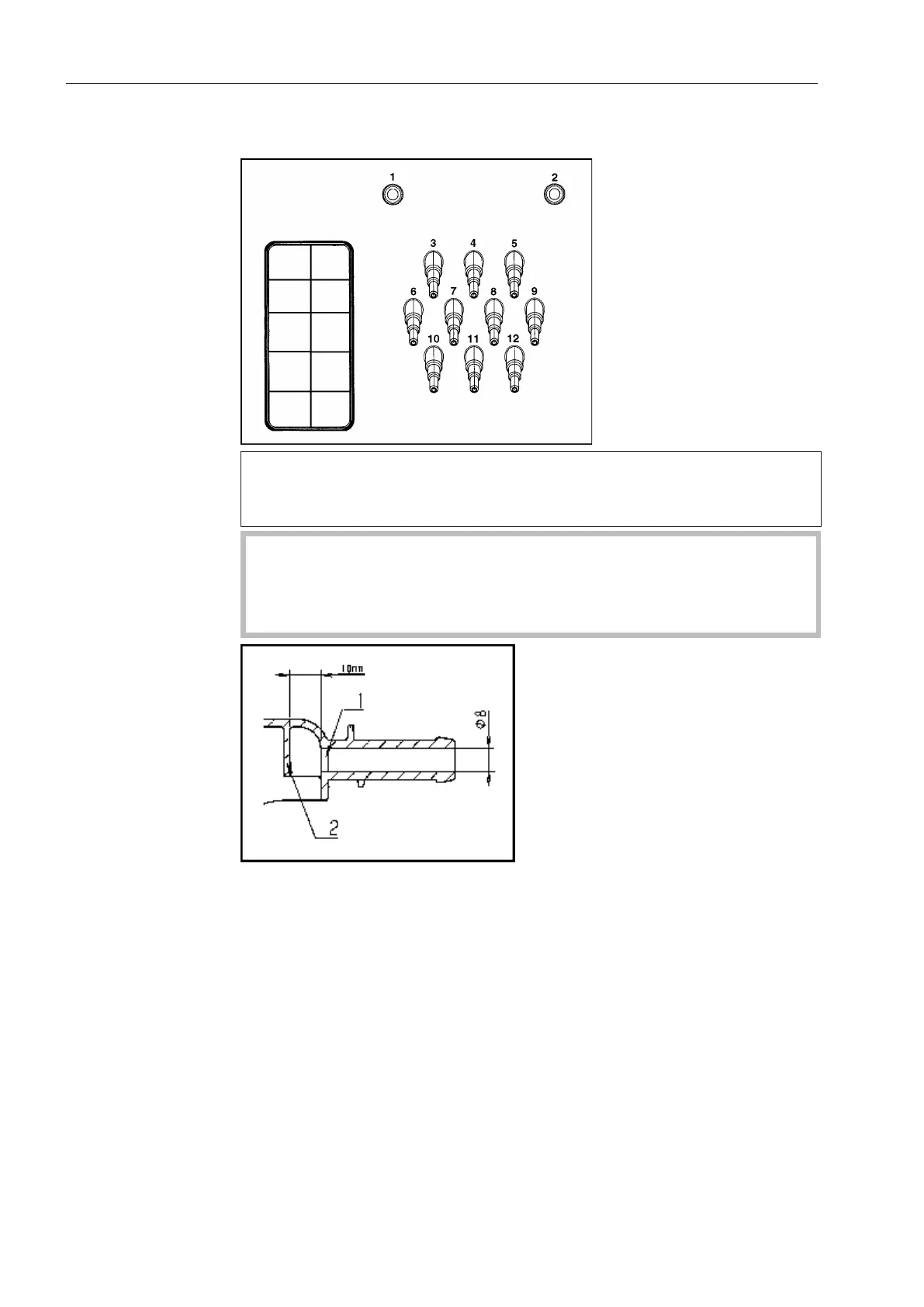

Connections1 and2 are provided for viscous agents. These con-
nectors are sealed and need to be drilled open using an 8mm drill
bit.
Connections1 and2 can also be used for high pressure dispensing
systems with water injection.
The dispensing systems must be fitted with a separate drinking wa-
ter safety feature in accordance with EN61770 and EN1717.
Care must be taken to drill through the first wall(1) only, as there is a
deflecting wall (2)10mm behind it.
If the drilled out connections are no longer required, they must be re-
sealed.
Connections3 to12 are provided for liquid dispensing. These con-
nectors are sealed and must be cut to suit the diameter of the hose
with a suitable hacksaw. If opened connectors are no longer required,
they must be resealed.
