Miele PWM 514 - Models Without Detergent Drawer (WEK)

en - Description of the machine
166

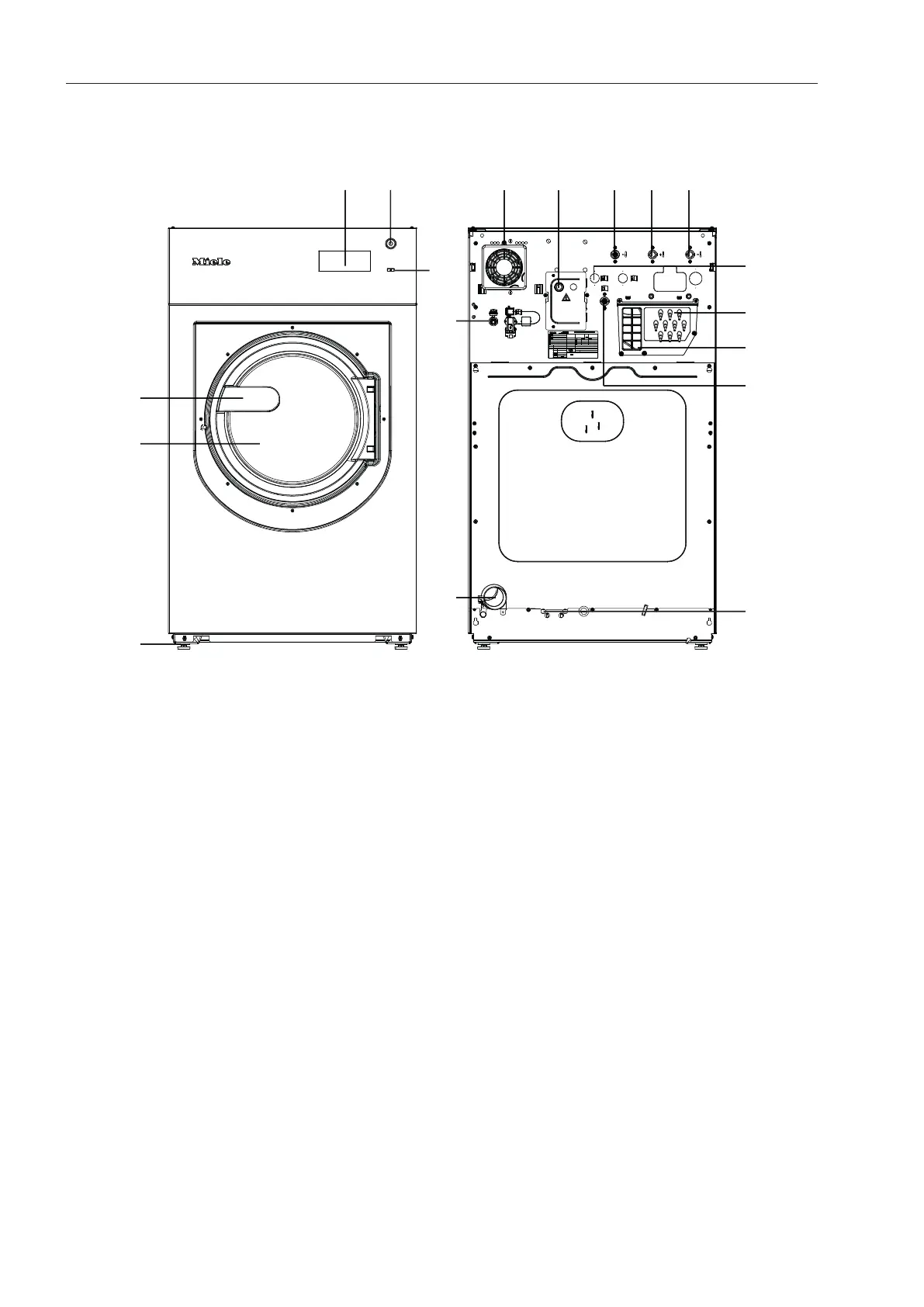

Models without detergent drawer (WEK)
① ②
③
④
⑤
⑥ ⑦ ⑧
⑨
⑩
⑪
⑦
⑫
⑭
⑬
⑮
⑯
⑰
a
Display
see “Control panel”
b
Emergency off switch
see “Control panel”
c
Door handle
d
Drum door
e
Four adjustable feet
f
Electrical connection
g
Cold water connection
h
Hot water connection
i
2xhard water connection
(optional)
j
Connections for dispenser pumps
k
Vapour extraction/free outlet TypeAB
l
Drainage
m
Cold water connection for liquid dis-
pensing
n
Fan casing
o
Connection option for direct/indirect
steam
(depending on model)
p
l button
q
Interface for communicating with ex-
ternal machines
