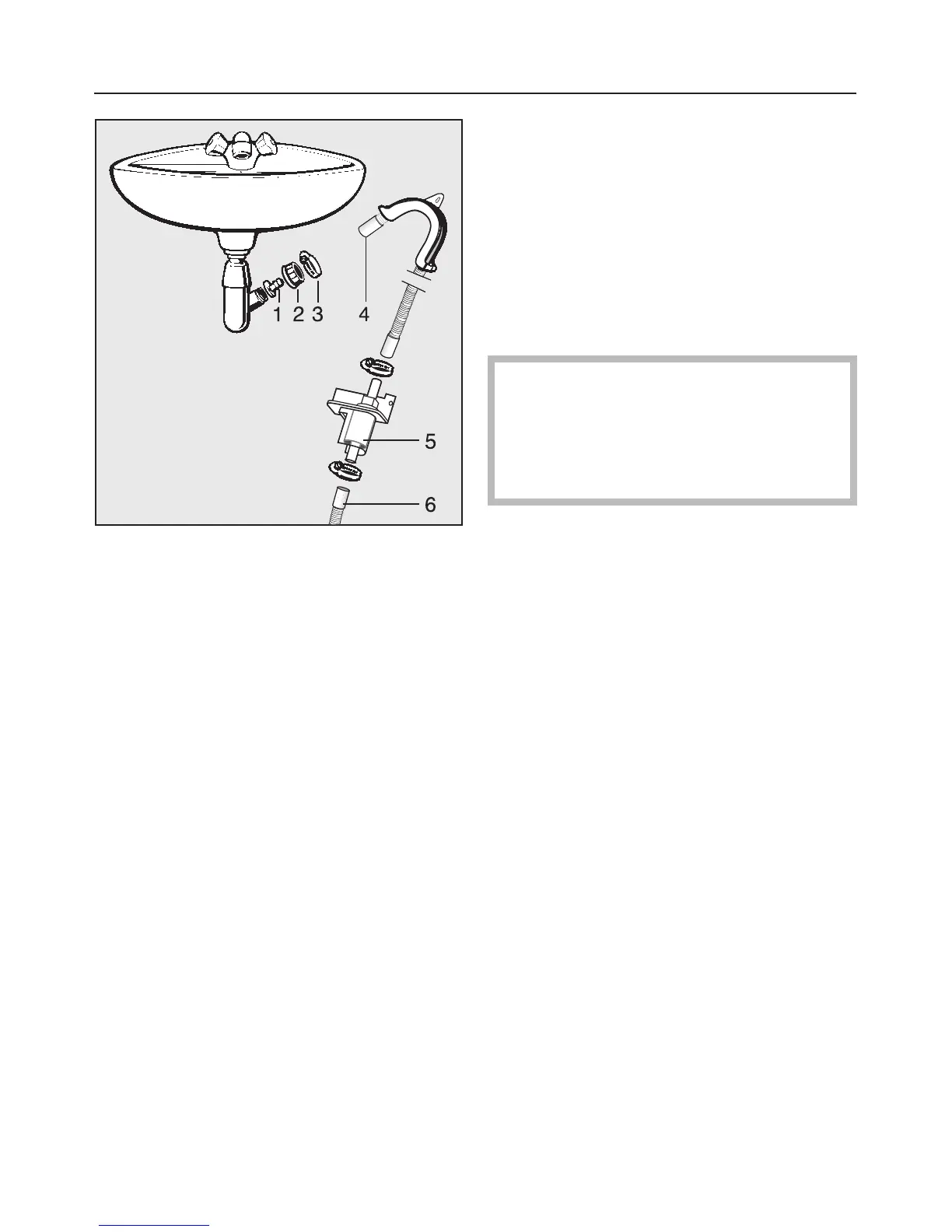

1 Adapter
2 Nut
3 Hose clip
4 Extension hose (accessory)
5 Non-return valve (accessory)
6 Dryer drain hose
^
Fit adapter 1 to the sink drain outlet
using nut 2.
If this nut has a flat disc in it you
should take the disc out first.
^
Attach the end of the extension hose
4 to adapter 1.
^
Use a screwdriver to tighten hose
clip 3 up close to the nut.
,
The non-return valve 5 must only
be fitted in an upright postion or at a
slight angle (see illustration). If it is
fitted in a horizontal position or lying
on its side it will not work correctly.
^ Fit the non-return valve 5 to the drain
hose of the dryer 6 (make sure it is in
the correct position, see illustration).
^ Secure the non-return valve using
hose clips.
