External drainage via a sink or gully
^
See "Front view" illustration.
,
If you want to drain the water off
into a sink or gully you will need to
secure the hose carefully, e.g. by
tying it to a tap to make sure it
cannot slip during use. Otherwise
there is a risk of overflowing water
which could cause damage.
^
Use the bow-shaped guide to
prevent the drain hose from
becoming kinked (see "Front view"
illustration).
Installation conditions requiring a
non-return valve
,
If the on-site water drainage
system is not fitted with a non-return
valve, the one supplied with the
machine must be fitted to prevent
the risk of back-flow.
A non-return valve is required:
–
If the tumble dryer is connected to a
sink drain outlet (see the following
section).
–
If the tumble dryer is to be
connected to a drainage system
already in use by another appliance,
e.g. a dishwasher.

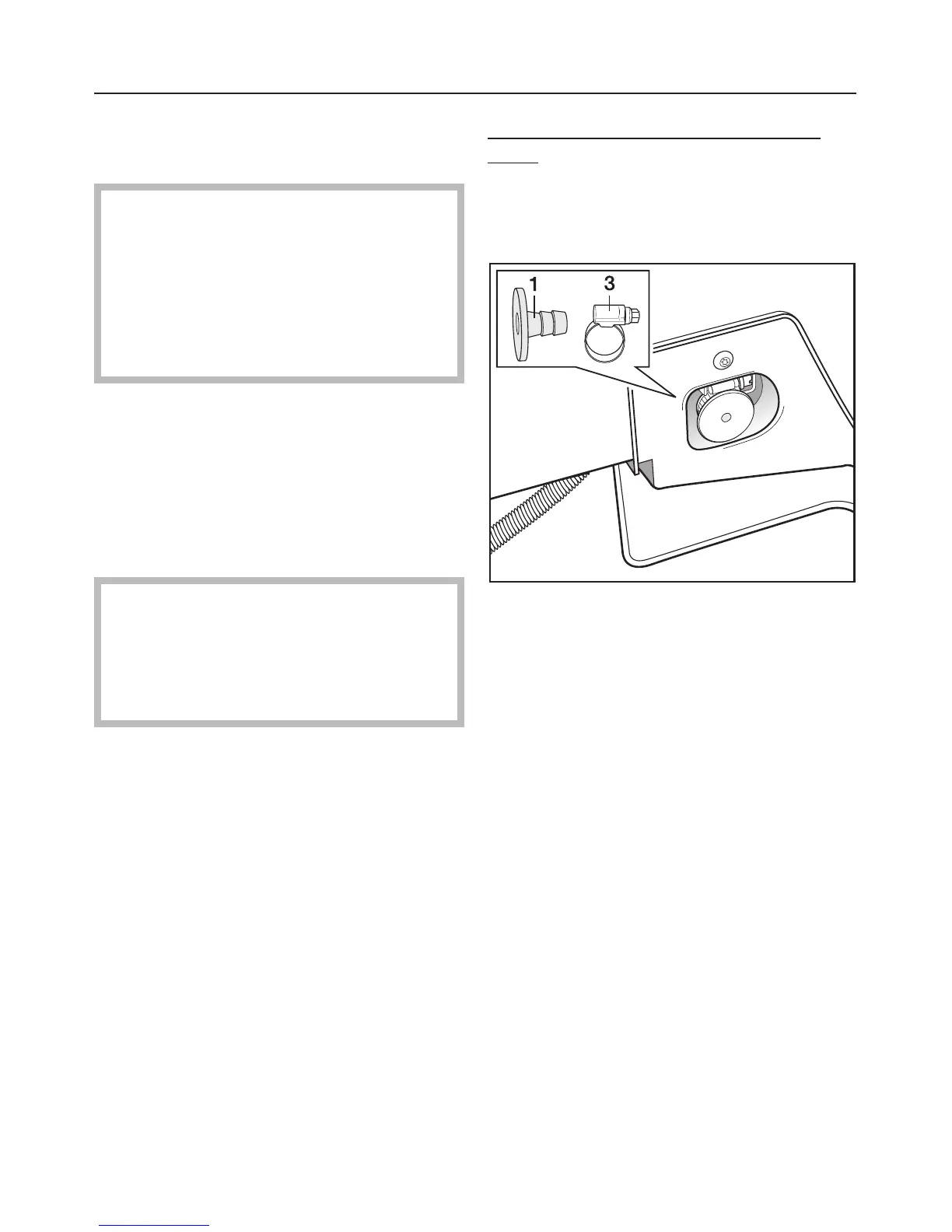

Example: Connection to a sink drain
outlet
The drain hose with non-return valve
fitted can be connected directly to a
suitable sink drain outlet.
^ Remove the following from the back
of the dryer at the bottom:
Adapter 1 and hose clip 3 behind it.
Installation
44
