Installation
*INSTALLATION*
69

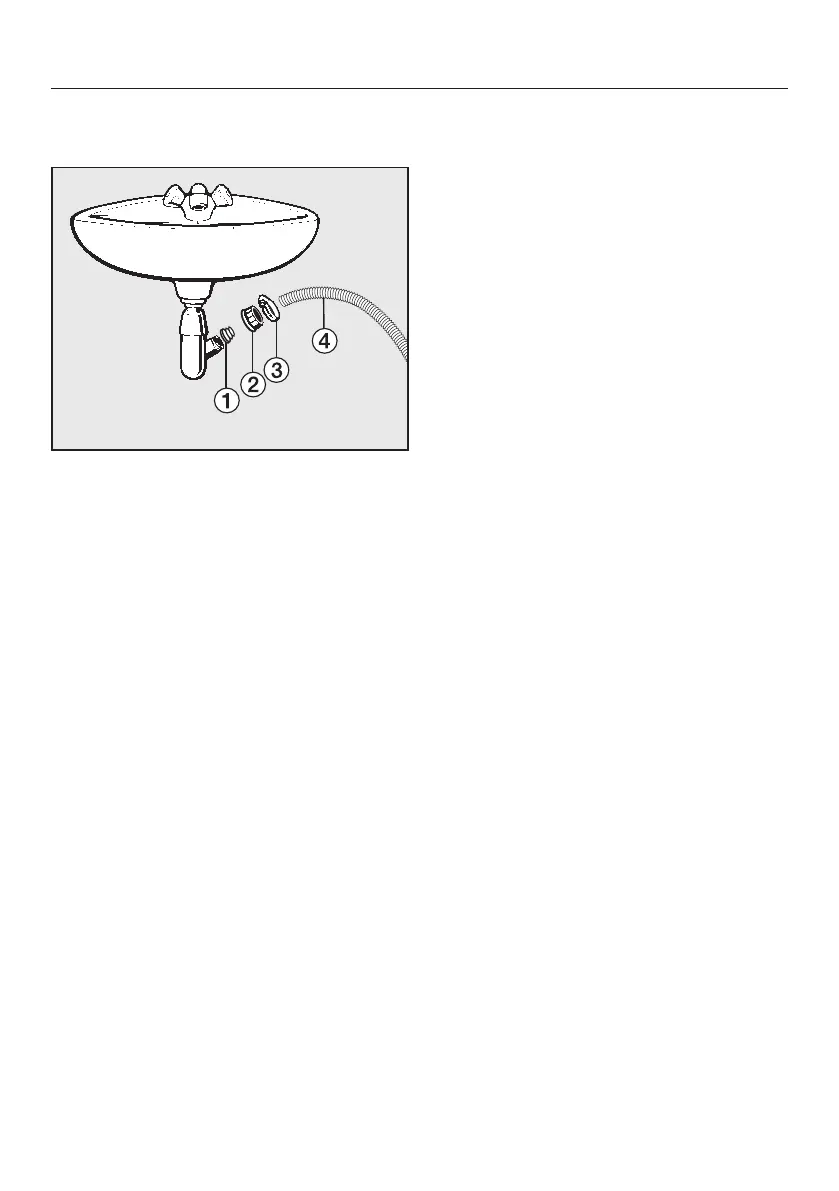

Direct connection to a sink drain
outlet
a
Adapter
b
Spigot nut
c
Hose clip
d
End of the hose
Fit adapter to the sink drain outlet
using nut .
Attach the end of hose to adapter
.
Use a screwdriver to tighten hose clip
up close to the nut.
