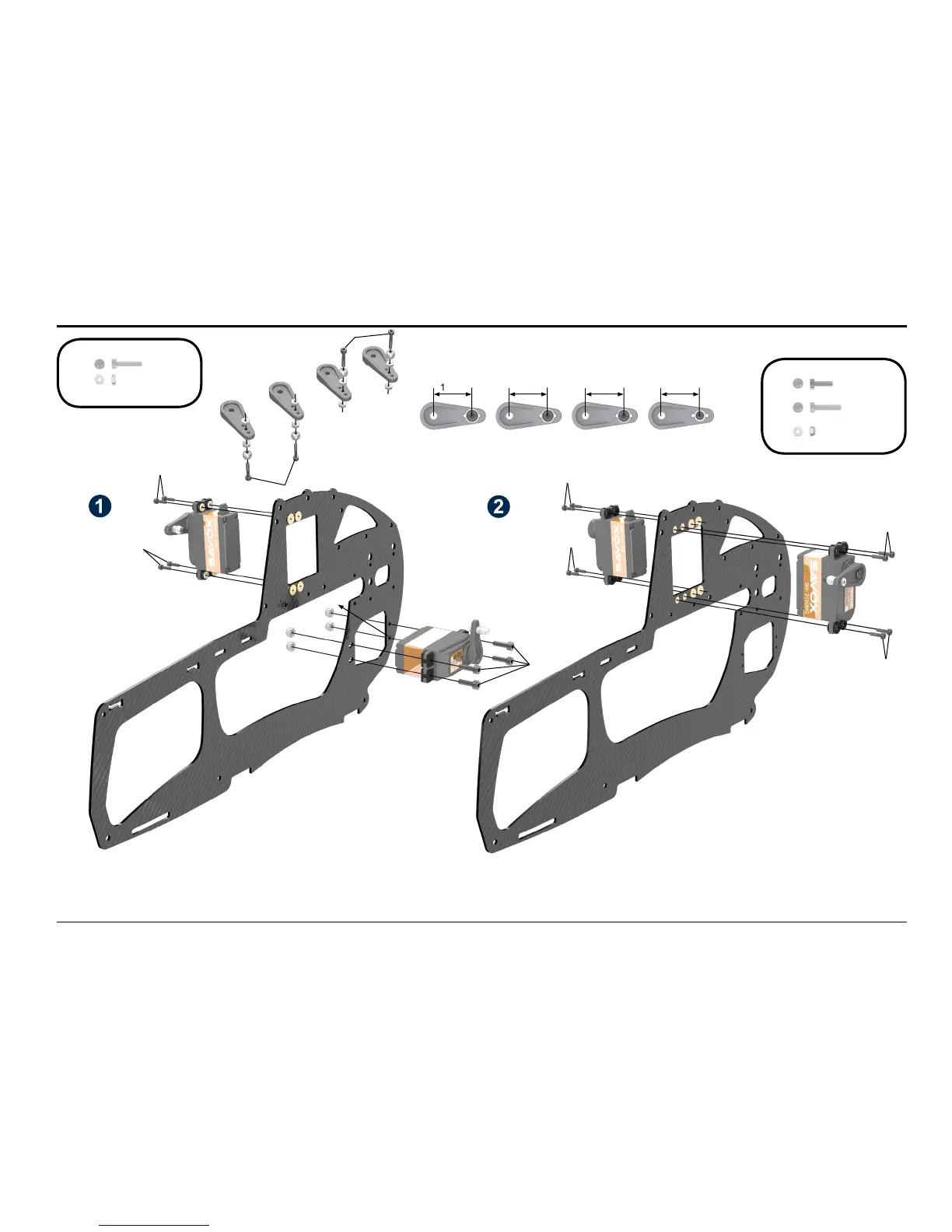

Mikado Logo 480 - 1 Mainframe and Servo Mounting

16mm 16mm
16mm
14-16mm
12x
4x
8x
M2,5x8
M2x10
M2
4x
4x
M2,5x12
M2,5 Stopp
Bag 3
Bag 1
Please secure the servo screws
with thread lock (Loctite).
Please secure the servo screws
with thread lock (Loctite).
Please secure the servo screws
with thread lock (Loctite).
Manual LOGO 480 - ©Mikado Model Helicopters GmbH -2013-
Page 3
1 Mainframe + Servo Mounting
Bag 1+ 3
M2,5x8
M2,5x8
M2,5x8
M2,5x8
M2,5x8
M2,5x8
M2,5x8
M2x10
M2x10
