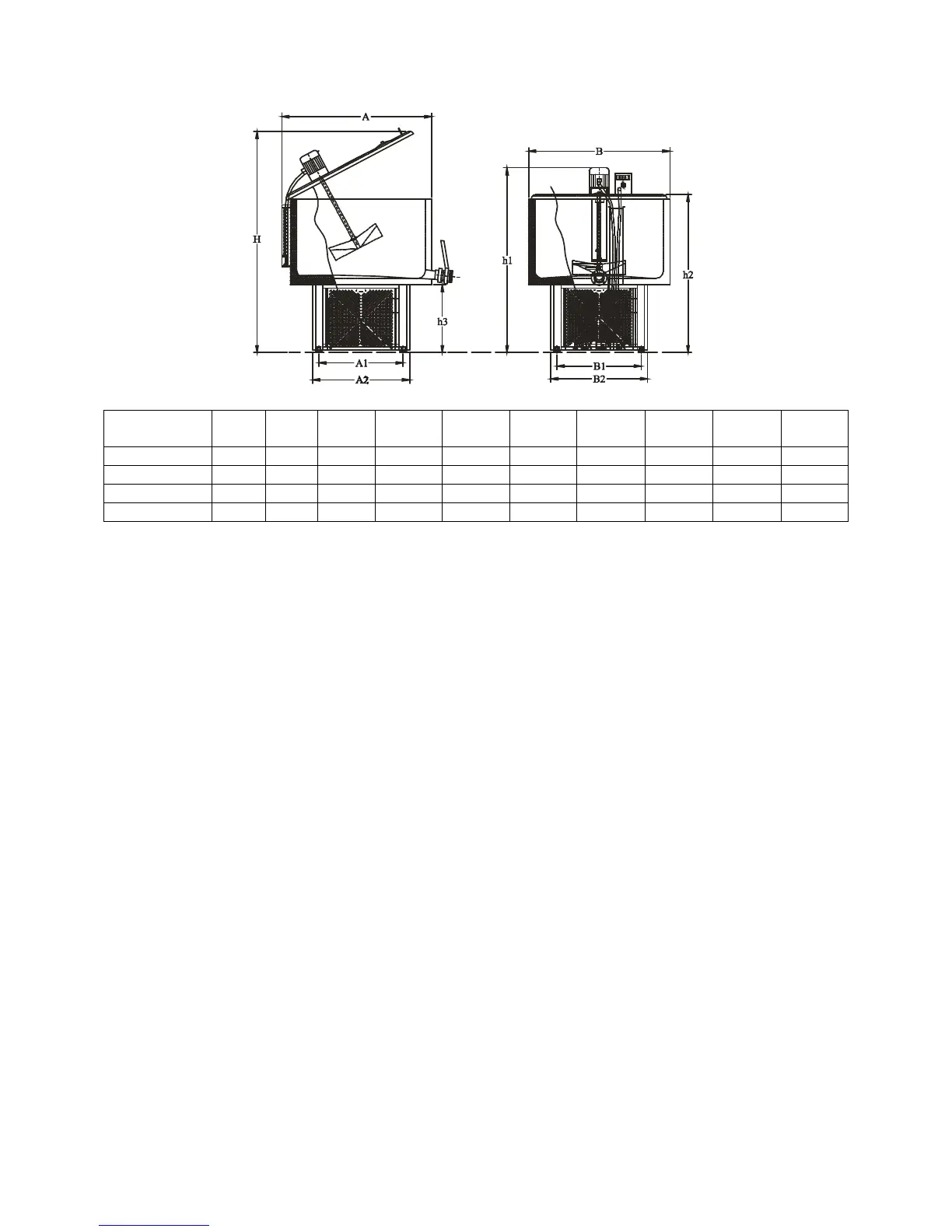

8.3 MAIN DIMENSIONS
Milk
Cooling tank
A
A1
A2
B
B1
B2
H
h1
h2
h3
IC 50
560
280
365
520
280
365
1350
1050
820
440
IC 100
720
330
400
680
410
490
1660
1190
980
420
IC 200
1000
530
610
880
530
610
1760
1220
990
420
IC 300
1100
530
600
980
530
610
1900
1250
1030
420
8.4 REFRIGERATING UNIT PERFORMANCE MEASUREMENT CONDITIONS
 Ambient temperature: +32
0
C
 Evaporator outlet and emission gas superheated: 32K
 Condensing temperature is +55
0
C
 Evaporating temperature: 0
0
C
 Temperature of refrigerant at condenser outlet is sub cooled within the condensing limits of the unit
 The technical characteristics of the refrigerating units are mentioned in the manufacturers catalogues
